COOPER LIGHTING - SURE-LITES®

Catalog #

Project

Comments

Prepared by

SPECIFICATION FEATURES

TypeDate

GFR

Electrical

- 6V or 12V DC Input Voltage

GFR

Construction

-Matches RG1 Series emergency lighting units

-20-gauge die-stamped steel housing with white baked enamel finish

-Housing adjusts in plaster frame 1 3/8" to accommodate different ceiling thicknes

-Bar hangers included for fast, easy installation

-Gimbal trim ring has white paint finish

-Lamp adjusts 40° from vertical with 358° rotation

GFR	GFR
Code Compliance	Lamp Data
- CSA Certified	- 6 Volt Incandescent Sealed Beam
- UL Listed	- 12 Volt Incandescent Sealed
- UL Damp Location Listed	Beam
- Life Safety NFPA 101	- Consult factory for other lamp
GFR	types (See Technical Information
	Section)
Warranty
- Unit: 1-year

GFR SERIES

ROUND SPECIALTY

REMOTES

CSA Certified

Emergency Lighting

ORDERING INFORMATION

G F R Series

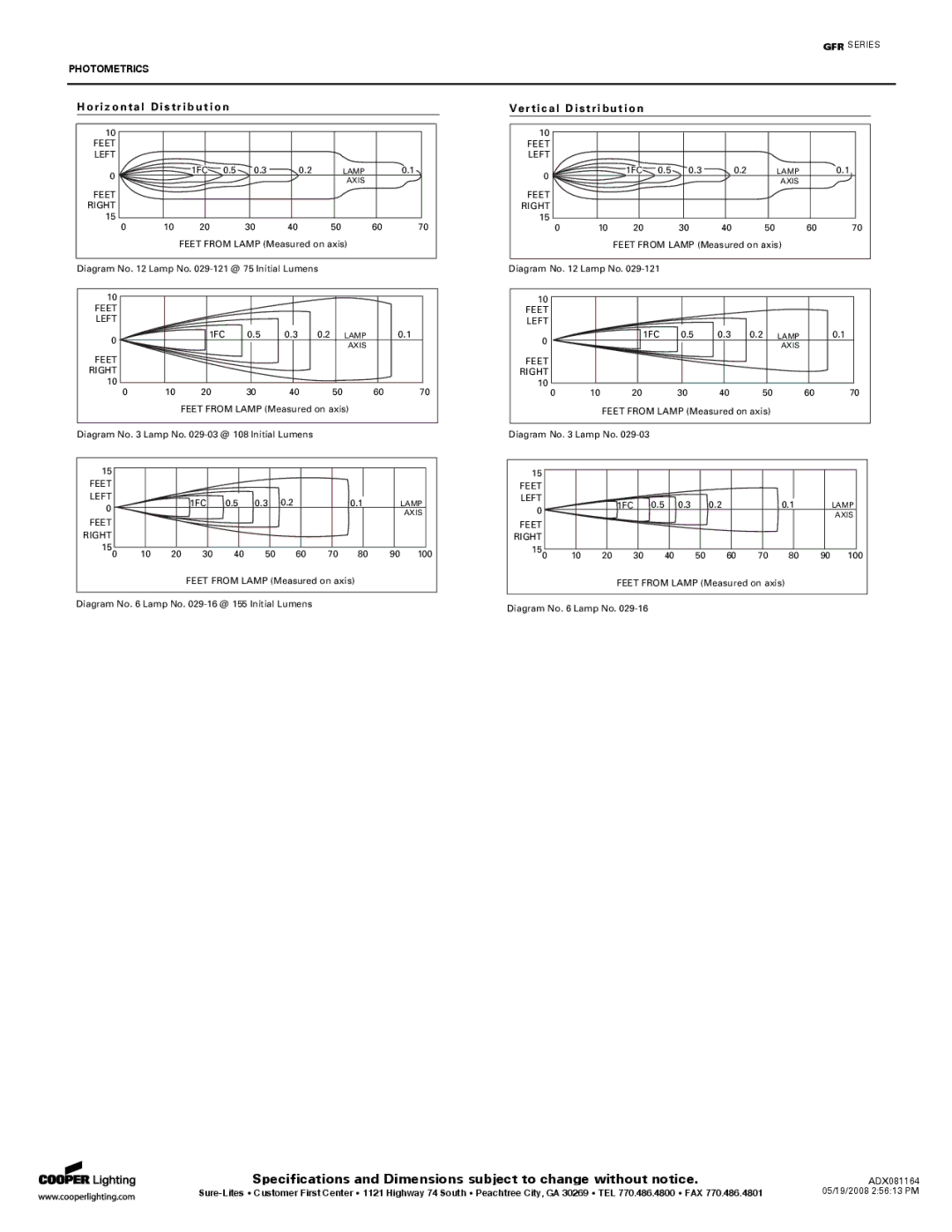

						Isofootcandle
Catalog No.	Finish	Lamp Type	Volts	Watts	Lamp No.	Diagram No.
GFR2703	White Trim	Incandescent Sealed Beam	6	8	029-03	3
GFR2716	White Trim	Halogen Sealed Beam	12	8	029-16	6

Alternate Lamps: Consult Cooper Lighting Representative

Other Finishes Available: Cooper Lighting Representative

Specifications and Dimensions subject to change without notice.

Consult your representative for additional options and finishes.

E N E R G Y D ATA

Power Consumption is equal to lamp wattage.

ADX081164 05/19/2008 2:56:13 PM
