A R E A



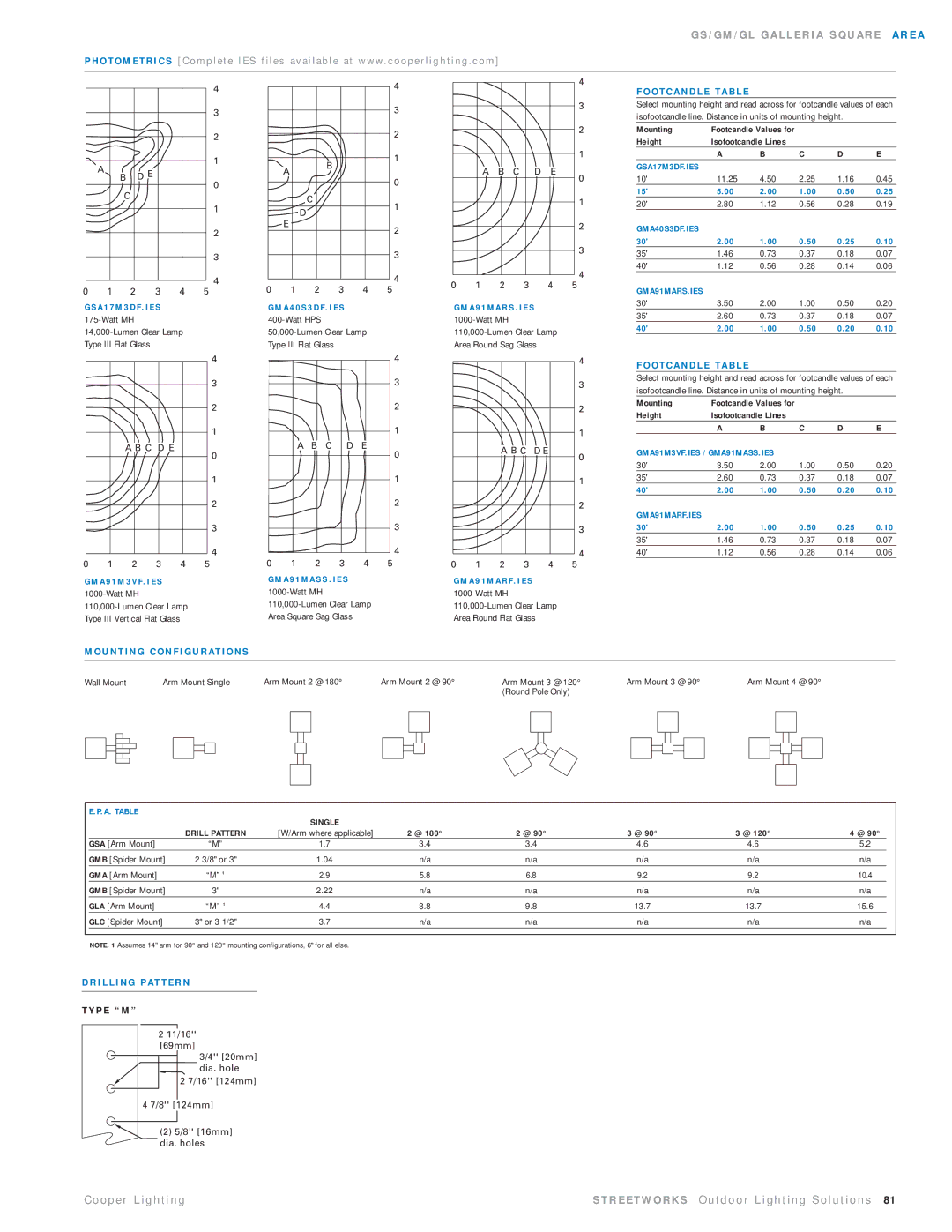

GS/GM/GL GALLERIA SQUARE

100-1000W

MH/HPS/SMH

A R C H I T E C T U R A L A R E A L U M I N A I R E

A

B

C

D

NOTE: In all flat glass configurations only.

STREETWORKS

A

B

F

E

C

D

NOTE: Top cap used on GM with 1000W flat glass vertically lamped optics only.

Fixture

A

B

C

D

E

F

GS (in.)

9 1/4

1 1/2

12 7/8

15 5/8

6 or 9

3 1/4

S (mm)

235

38

327

397

152 or 229

337

GM (in.)

11

3 1/2

19 1/4

21 3/4

6 or 14

15 or 16

(mm)

279

89

480

552

152 or 356

381 or 406

GL (in.)

14 1/2

4 1/4

25 7/8

27

6 or 14

18 3/4 or 19 3/4

(mm)

368

108

657

686

152 or 356

476 or 502















H O U S I N G

Formed aluminum housing with stamped reveal has interior-welded seams for structural integrity. Optional NEMA twistlock photocontrol. ANSI wattage/source label.

B A L L A S T

Ballast is hard-mounted to housing interior for cooler operation. Optional removable ballast tray.

R E F L E C T O R

Spun and stamped aluminum reflector in vertical lamp units, or hydroformed anodized aluminum reflector in horizontal lamp units.

D O O R

Formed aluminum door has heavy-duty hinges, captive retaining screws and is finished in polyester powder coat. (Spider mount unit has steel door.)

L E N S

Convex tempered glass lens. Tempered flat glass available.

F I N I S H

Standard polyester powder coat finish in bronze. For more color options see optional colors or consult your Streetworks represenatitive for more information.

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : G M A 2 5 S W W A R

PRODUCT

MOUNTING

LAMP

LAMP TYPE 6

BALLAST TYPE 6

VOLTAGE 6

DISTRIBUTION





OPTIONS +

FAMILY

METHOD

WATTAGE 3

S=High

P=Hi. Reac./HPF

2=120V

1D=Type I MCO (Horizontal)



ACCESSORIES

GS=Galleria

A=Arm Mount 1

10=100W

Pressure

H=Reac./HPF

0=208V

2D=Type II MCO (Horizontal)



(See Below)

Square

B=Spider Mount

15=150W

Sodium

N=Hi. Reac./NPF

4=240V

2S=Type II Segmented (Horizontal) 7, 8



Small

(2 3/8" - 3" O.D. Tenon)

17=175W

M=Metal

R=Reac./NPF

7=277V

3D=Type III MCO (Horizontal)





GM=Galleria

C=Spider Mount

25=250W

Halide

W=CWA

8=480V

3S=Type III Segmented (Horizontal) 7, 8



Square

(3 1/2" O.D. Tenon) 2

40=400W

K=10KV CWA

9=347V

3V=Type III (Vertical)

9





Medium



75=750W 4

R=SMH

C=CWI

W=Multi-Tap



7, 8



GL=Galleria



91=1000W 5



M=Mag. Reg.

wired 120V

4S=Type IV Segmented (Horizontal)





Square









N=Multi-Tap

5S=Type V Segmented (Horizontal) 7, 8



Large









wired 277V

FT=Forward Throw (Horizontal)















V=Multi-Tap

AR=Area Round (Vertical)















wired 240V

AS=Area Square (Vertical)

















RW=Rectangular Wide (Vertical)

















SL=Spill Light Eliminator (Horizontal) 10



O P T I O N S + A C C E S S O R I E S [ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]



















OPTIONS (add as suffix)



ACCESSORIES (order separately)



MA1060=House Side Shield for GS

1=Single Fuse, Internally Mounted (120 or 277V)

MA1004=14" Arm for Square Pole



(Field Installed) 13





2=Double Fuse, Internally Mounted (208, 240, or 480V)



(GM & GL only) 12



MA1061=House Side Shield for GM

4=Photocontrol Receptacle



MA1005=6" Arm for Square Pole



(Field Installed) 13





WH=White







(GM & GL only)



MA1062=House Side Shield for GL

BK=Black





MA1006=Direct Mount Kit for Square Pole

(Field Installed) 13





AP=Grey





MA1007=14" Arm for Round Pole



OA1066=Pipe Adapter





B=House Side Shield





(GM & GL only) 12



OA1209=TufGuard Vandal Shield for GS

H=Plug-in Starter Receptacle 8



MA1008=6" Arm for Round Pole



OA1210=TufGuard Vandal Shield for GM

T=Removable Ballast Tray





(GM & GL only)



GSM-EXTHS-XX=Medium External House

F=Flat Glass





MA1009=Direct Mount Kit for Round Pole



Side Shield (Specify Color)

AIR=Arm Included for Round Pole 11



MA1021=6" Arm for Square Pole (GS Only)

GSL-EXTHS-XX=Large External House Side

AIS=Arm Included for Square Pole 11



MA1022=6" Arm for Round Pole (GS Only)



Shield (Specify Color)

CSR=Color Reveal Stripe—Red



MA1023=9" Arm for Square Pole (GS Only) 12









CSB=Color Reveal Stripe—Blue



MA1024=9" Arm for Round Pole (GS Only) 12









CSY=Color Reveal Stripe—Yellow



MA1029=Wall Bracket













CSG=Color Reveal Stripe—Green



















CSD=Color Reveal Stripe—Gold



















CSS=Color Reveal Stripe—Silver



















CSW=Color Reveal Stripe—White



















O P T I O N A L C O L O R S [ S t a n d a r d c o l o r i s b r o n z e , o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]

W AT TA G E S

GS 100-175

GM 175-1000

GL 400-1000

S H I P P I N G D ATA

Approximate Net Weight:

GS 36 lbs. (16 kgs.)

GM 79 lbs. (36 kgs.)

GL 88 lbs. (40 kgs.)











WH

BK

AP

White

Black

Grey

NOTES: 1 Arm not included. See Accessories. 2 Available on GL housing only. 3 Medium-based lamp for GS housing. Mogul-base on GM and GL housings. 4 Pulse Start Metal Halide vertical mount only. 5 1000W GM with flat- glass requires BT-37 lamp and is not available in RW distribution. 6 Refer to technical section for lamp/ballast/voltage compatibility. 7 Requires reduced envelope lamps, not available in GL housing. 8 Not available in 1000W. 9 Not available in GS housing. 10 Not available in 1000 Watt HPS. 11 Arm length varies based on housing size. Arm supplied with luminaire: 9" for GS (EPA 0.5), 11 1/2" for GM (EPA 0.62) and 14" for GL (EPA 1.0). 12 Required for mounting fixtures at 90° increments. 13 Compatible with sag lens vertical optics only.

80 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s

C o o p e r L i g h t i n g

Page 1
