RECESSED GRID CEILING MOUNT

COVERED OPENING MR16

Catalog #



DESCRIPTION:

An adjustable MR16 fixture suit- able for multiple downlighting applications with one point of electrical entry. For use in lay-in t-bar grid style ceilings. Powder coat finish on housing & lamp assembly.

CONSTRUCTION:

Housing Assembly: 18 gauge

Type

Project

COMBOLIGHT® GRF Series

FOUR (4) Light Recessed

Multi-Lamp Luminaire for Lay-in, T-Bar Grid Style Ceiling Covered Opening Low Voltage MR16

CRS. J-Box Assembly: 16 gauge CRS (galvanized). Faceplate cover: .125” Aluminum plate. Fixture utilizes specially devel- oped retaining clips for snap-in mounting directly to t-bar sup- ports. Tabs on housing top accommodate above ceiling air- craft cable support for added stability.

LAMP ASSEMBLY:

Four MR16 lamps mounted in adjustable bezels. Each lamp can accept up to two optical accessories. Double gimbals provide 45º x 45º adjustment.

Tabs for aircraft cable suspension

A

C D

Thermal protector

Junction Box w/ Electronic Transformer

Double Gimbals 45º x 45º locking angular adjustment

SYSTEM PROTECTION: Thermal protection provided to guard against overheating, and misuse of insulation over and around fixture. Vent holes in housing provide cooler operation

ELECTRICAL:

Integral electronic transformers. Fused and short circuit protec- tion. Junction box is UL listed for through branch wiring, (access above ceiling not required) for 8 #12, 90°C supply conductors or 60°C for end of run. Transformers and electrical wiring accessible through ceil- ing opening.

ALL RSA COMBOLIGHT PRODUCTS ARE MADE IN THE U.S.A.

Fixture



Retaining

.125" Aluminum ￿

Clip

Coverplate



Ceiling Tile





T-Bar Support

Ceiling Tiles and T-Bar by others

Optional Accessories - Details on Other Side

Baffle Snoots

Louvers Lenses

Other Adders:



CC - Two Circuit

ORDERING EXAMPLE:

GRF416

50

WH

120

=Four Light Recessed Combo for Grid Style Ceiling (Covered Opening) - MR16 50W - WH Finish - 120 Volt

B

A

B

C

D

Overall Height

Overall Width

Lamp Spacing

Overall Length

8.50”

23.44”

6.59”

23.44”









Cat. # / Description

Lamp Wattage

Finish

Voltage









GRF416 - 4 Light Recessed Combo for Lay-

50 - 50 Watt 12 Volt MR16

BK - Black

120 - 120 Volt

in Grid Style Ceilings







12V MR16

75 - 75 Watt 12 Volt MR16

WH - White

277 - 277 Volt













S - Silver















PT - Custom











SPECIFY -

GRF416

___

___

___

RSA LIGHTING LLC 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311

RSA LIGHTING®TOLL FREE: 800-356-3030818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com ©2003 RSA Lighting LLC All Rights Reserved • Specifications subject to change without notice.

Page 1

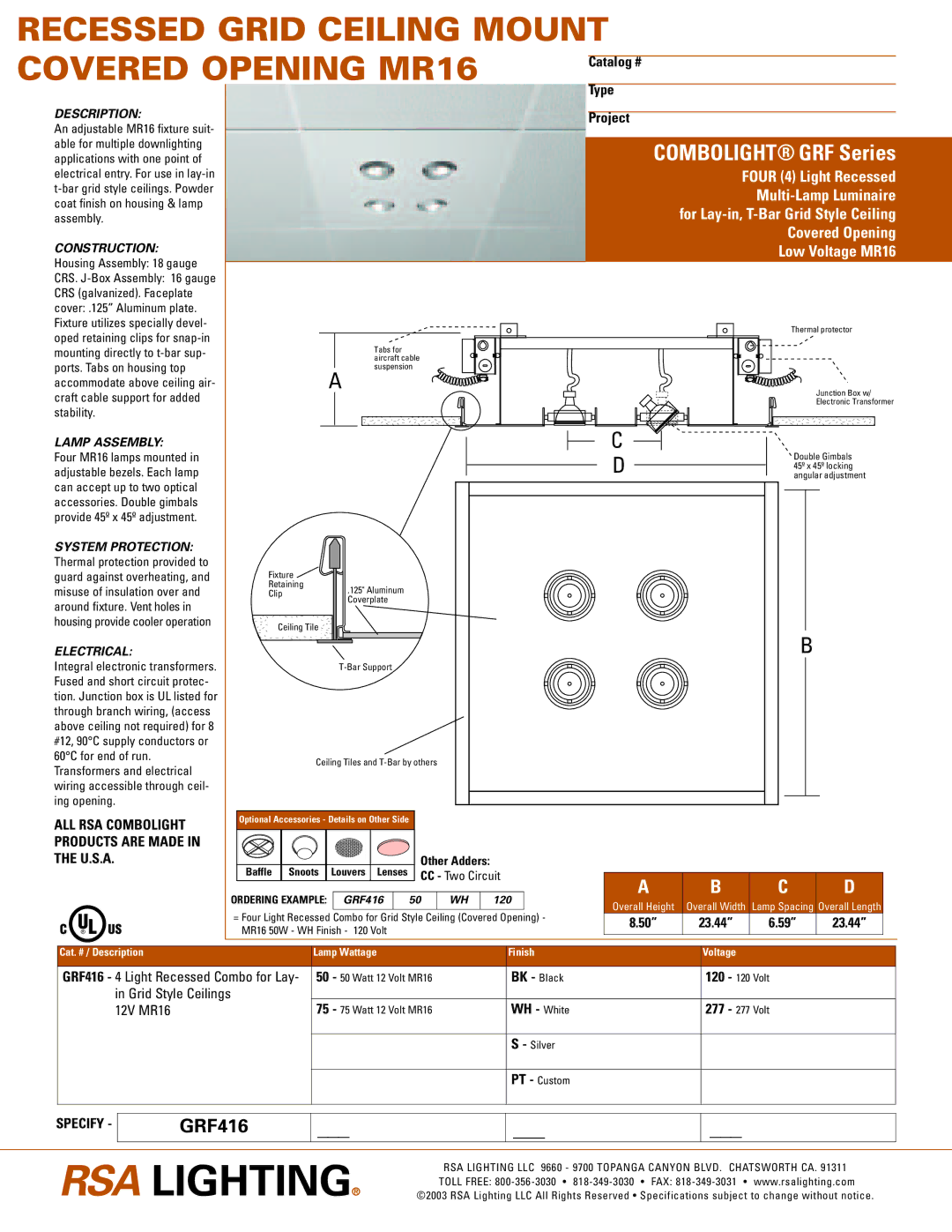

Image 1
Cooper Lighting GRF416 specifications Recessed Grid Ceiling Mount Covered Opening MR16, Combolight GRF Series

GRF416 specifications
