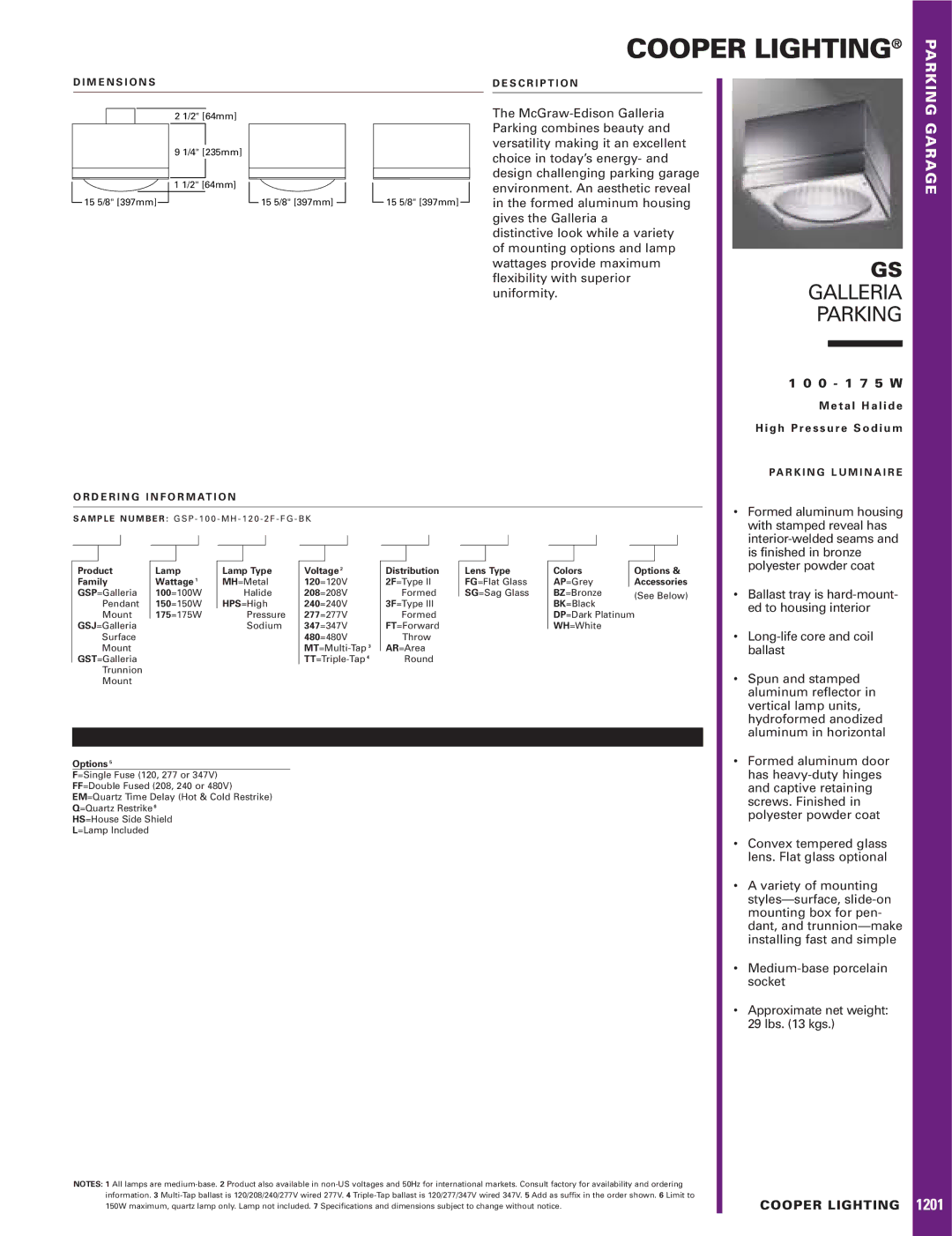

COOPER LIGHTING®

PARKING

D I M E N S I O N S









































2

1/2" [64mm]



















































9

1/4" [235mm]































































































1 1/2" [64mm]















































































15 5/8" [397mm]













15 5/8" [397mm]







15 5/8" [397mm]

























D E S C R I P T I O N

The McGraw-Edison Galleria Parking combines beauty and versatility making it an excellent choice in today’s energy- and design challenging parking garage environment. An aesthetic reveal in the formed aluminum housing gives the Galleria a

distinctive look while a variety of mounting options and lamp wattages provide maximum flexibility with superior uniformity.

GS

GALLERIA

PARKING

1 0 0 - 1 7 5 W

M e t a l H a l i d e

H i g h P r e s s u r e S o d i u m

PA R K I N G L U M I N A I R E

GARAGE

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : G S P - 1 0 0 - M H - 1 2 0 - 2 F - F G - B K

• Formed aluminum housing

with stamped reveal has

interior-welded seams and

is finished in bronze

polyester powder coat

Product

Family

GSP=Galleria

Pendant

Mount

GSJ=Galleria

Surface

Mount

GST=Galleria

Trunnion

Mount

Lamp Wattage 1 100=100W 150=150W 175=175W

Lamp Type

MH=Metal

Halide

HPS=High

Pressure

Sodium

Voltage 2

120=120V

208=208V

240=240V

277=277V

347=347V

480=480V

MT=Multi-Tap 3 TT=Triple-Tap 4

Distribution

2F=Type II

Formed

3F=Type III

Formed

FT=Forward

Throw

AR=Area

Round

Lens Type

FG=Flat Glass

SG=Sag Glass

















Colors

Options &

AP=Grey

Accessories

BZ=Bronze

(See Below)

BK=Black



DP=Dark Platinum

WH=White



• Ballast tray is hard-mount-

ed to housing interior

Long-life core and coil

ballast

• Spun and stamped

aluminum reflector in

vertical lamp units,

hydroformed anodized

aluminum in horizontal

Options 5

F=Single Fuse (120, 277 or 347V) FF=Double Fused (208, 240 or 480V) EM=Quartz Time Delay (Hot & Cold Restrike) Q=Quartz Restrike 6

HS=House Side Shield L=Lamp Included

Formed aluminum door



has heavy-duty hinges



and captive retaining



screws. Finished in



polyester powder coat

Convex tempered glass



lens. Flat glass optional

• A variety of mounting



styles—surface, slide-on



mounting box for pen-



dant, and trunnion—make



installing fast and simple

Medium-base porcelain



socket

Approximate net weight:



29 lbs. (13 kgs.)

NOTES: 1 All lamps are medium-base. 2 Product also available in non-US voltages and 50Hz for international markets. Consult factory for availability and ordering



information. 3 Multi-Tap ballast is 120/208/240/277V wired 277V. 4 Triple-Tap ballast is 120/277/347V wired 347V. 5 Add as suffix in the order shown. 6 Limit to

COOPER LIGHTING

150W maximum, quartz lamp only. Lamp not included. 7 Specifications and dimensions subject to change without notice.

1201

Page 1
