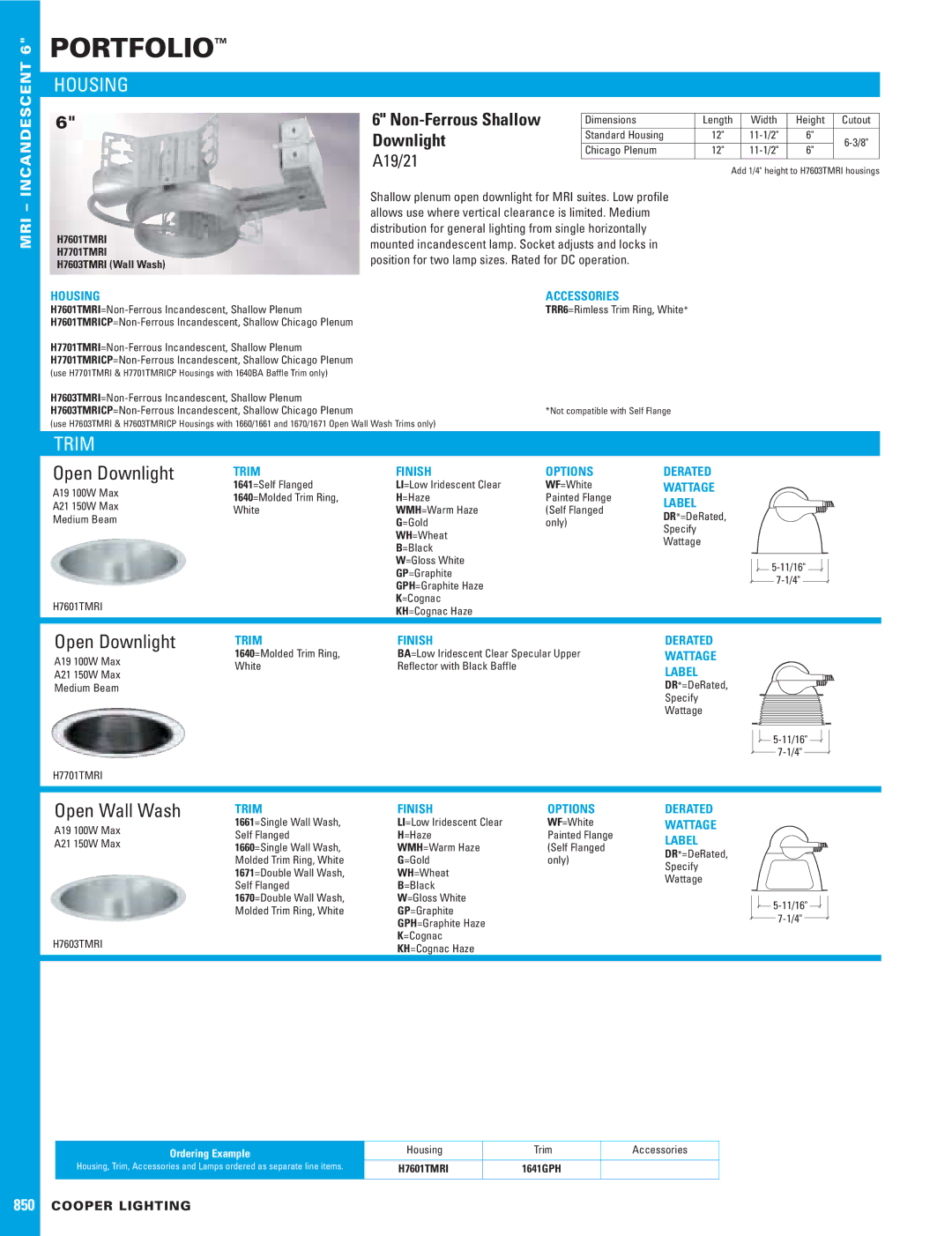

Cooper Lighting H7603TMRI dimensions Portfolio, Housing, Trim, Open Downlight, Open Wall Wash

6"

PORTFOLIO™

HOUSING

MRI – INCANDESCENT

6"

H7601TMRI

H7701TMRI

H7603TMRI (Wall Wash)

HOUSING

H7601TMRI=Non-Ferrous Incandescent, Shallow Plenum H7601TMRICP=Non-Ferrous Incandescent, Shallow Chicago Plenum

H7701TMRI=Non-Ferrous Incandescent, Shallow Plenum H7701TMRICP=Non-Ferrous Incandescent, Shallow Chicago Plenum

6" Non-Ferrous Shallow	Dimensions	Length	Width	Height	Cutout
Downlight	Standard Housing	12"	11-1/2"	6"	6-3/8"
	Chicago Plenum	12"	11-1/2"	6"
A19/21
		Add 1/4" height to H7603TMRI housings

Shallow plenum open downlight for MRI suites. Low profile allows use where vertical clearance is limited. Medium distribution for general lighting from single horizontally mounted incandescent lamp. Socket adjusts and locks in position for two lamp sizes. Rated for DC operation.

ACCESSORIES

TRR6=Rimless Trim Ring, White*

(use H7701TMRI & H7701TMRICP Housings with 1640BA Baffle Trim only)

H7603TMRI=Non-Ferrous Incandescent, Shallow Plenum
H7603TMRICP=Non-Ferrous Incandescent, Shallow Chicago Plenum	*Not compatible with Self Flange
(use H7603TMRI & H7603TMRICP Housings with 1660/1661 and 1670/1671 Open Wall Wash Trims only)

TRIM

Open Downlight	TRIM	FINISH	OPTIONS	DERATED
A19 100W Max	1641=Self Flanged	LI=Low Iridescent Clear	WF=White	WATTAGE
	1640=Molded Trim Ring,	H=Haze	Painted Flange	LABEL
A21 150W Max
	White	WMH=Warm Haze	(Self Flanged
Medium Beam				DR*=DeRated,
		G=Gold	only)
		WH=Wheat		Specify
				Wattage
		B=Black
		W=Gloss White
					5-11/16"
		GP=Graphite
						7-1/4"
		GPH=Graphite Haze
H7601TMRI		K=Cognac
		KH=Cognac Haze

Open Downlight	TRIM	FINISH
A19 100W Max	1640=Molded Trim Ring,	BA=Low Iridescent Clear Specular Upper
	White	Reflector with Black Baffle
A21 150W Max
Medium Beam

H7701TMRI

DERATED

WATTAGE

LABEL

DR*=DeRated,

Specify

Wattage

5-11/16"

7-1/4"

Open Wall Wash	TRIM	FINISH	OPTIONS	DERATED
A19 100W Max	1661=Single Wall Wash,	LI=Low Iridescent Clear	WF=White	WATTAGE
	Self Flanged	H=Haze	Painted Flange	LABEL
A21 150W Max
	1660=Single Wall Wash,	WMH=Warm Haze	(Self Flanged
				DR*=DeRated,
	Molded Trim Ring, White	G=Gold	only)
				Specify
	1671=Double Wall Wash,	WH=Wheat
				Wattage
	Self Flanged	B=Black
	1670=Double Wall Wash,	W=Gloss White
					5-11/16"
	Molded Trim Ring, White	GP=Graphite
						7-1/4"
		GPH=Graphite Haze
H7603TMRI		K=Cognac
		KH=Cognac Haze

Ordering Example	Housing	Trim	Accessories
Housing, Trim, Accessories and Lamps ordered as separate line items.	H7601TMRI	1641GPH

850COOPER LIGHTING
