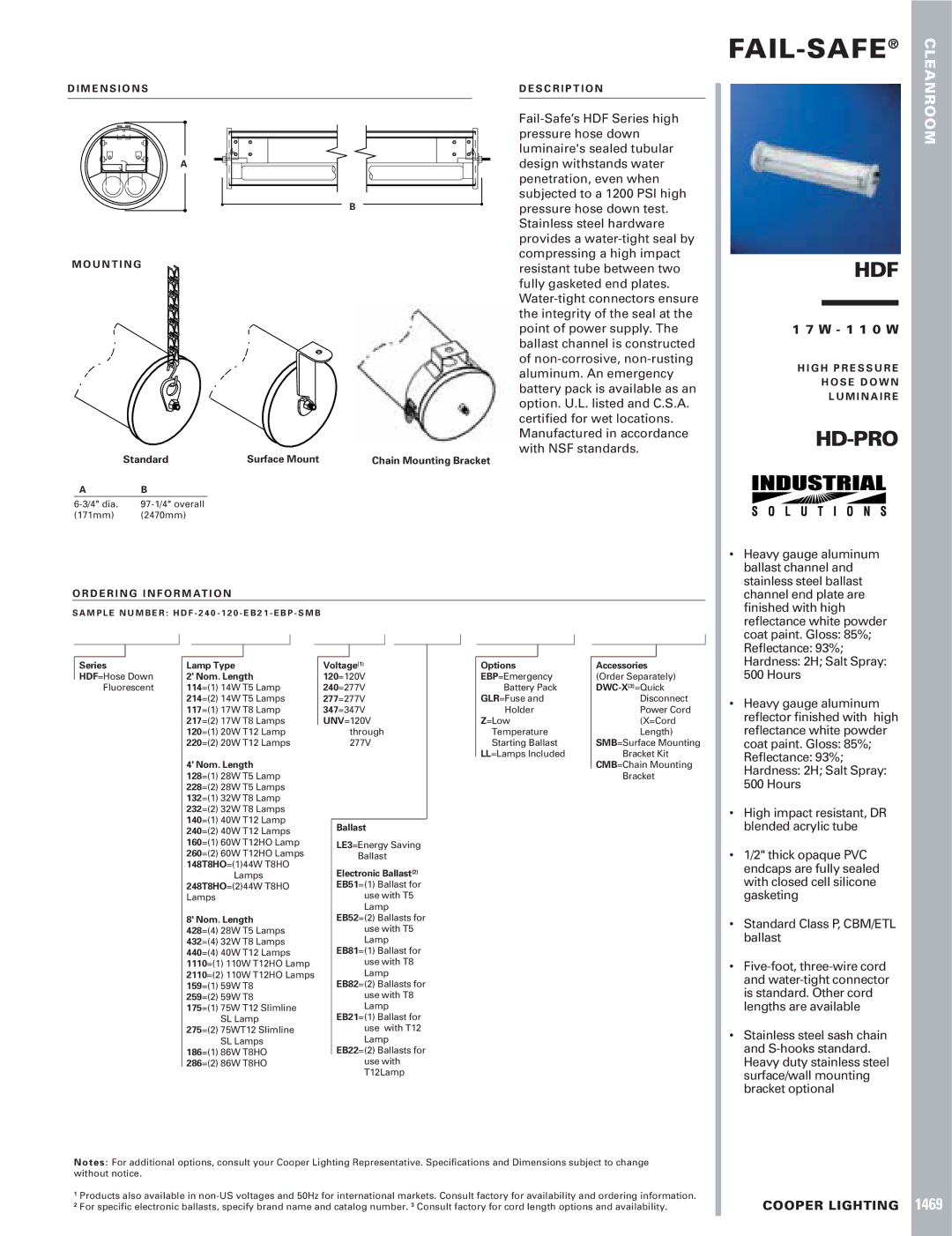

Cooper Lighting HDF dimensions Fail-Safe, Hd-Pro, 1 7 W - 1 1 0 W, Cooper Lighting

D I M E N S I O N S

A

A

BB

M O U N T I N G

Standard Surface Mount Chain Mounting Bracket

AB

6-3/4" dia.	97-1/4" overall
(171mm)	(2470mm)

D E S C R I P T I O N

Fail-Safe’s HDF Series high pressure hose down luminaire's sealed tubular design withstands water penetration, even when subjected to a 1200 PSI high pressure hose down test. Stainless steel hardware provides a water-tight seal by compressing a high impact resistant tube between two fully gasketed end plates. Water-tight connectors ensure the integrity of the seal at the point of power supply. The ballast channel is constructed of non-corrosive, non-rusting aluminum. An emergency battery pack is available as an option. U.L. listed and C.S.A. certified for wet locations. Manufactured in accordance with NSF standards.

FAIL-SAFE® CLEANROOM

HDF

1 7 W - 1 1 0 W

H I G H P R E S S U R E

H O S E D O W N

L U M I N A I R E

HD-PRO

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : H D F - 2 4 0 - 1 2 0 - E B 2 1 - E B P - S M B

• Heavy gauge aluminum

ballast channel and

stainless steel ballast

channel end plate are

finished with high

reflectance white powder

coat paint. Gloss: 85%;

Reflectance: 93%;

Hardness: 2H; Salt Spray:

Series

HDF=Hose Down Fluorescent

Lamp Type

2' Nom. Length

114=(1) 14W T5 Lamp

214=(2) 14W T5 Lamps

117=(1) 17W T8 Lamp

217=(2) 17W T8 Lamps

120=(1) 20W T12 Lamp

220=(2) 20W T12 Lamps

4' Nom. Length

128=(1) 28W T5 Lamp

228=(2) 28W T5 Lamps

132=(1) 32W T8 Lamp

232=(2) 32W T8 Lamps

140=(1) 40W T12 Lamp

240=(2) 40W T12 Lamps

160=(1) 60W T12HO Lamp

260=(2) 60W T12HO Lamps

148T8HO=(1)44W T8HO

Lamps

248T8HO=(2)44W T8HO

Lamps

8' Nom. Length

428=(4) 28W T5 Lamps

432=(4) 32W T8 Lamps

440=(4) 40W T12 Lamps

1110=(1) 110W T12HO Lamp

2110=(2) 110W T12HO Lamps

159=(1) 59W T8

259=(2) 59W T8

175=(1) 75W T12 Slimline

SL Lamp

275=(2) 75WT12 Slimline

SL Lamps

186=(1) 86W T8HO

286=(2) 86W T8HO

Voltage(1)

120=120V

240=277V

277=277V

347=347V UNV=120V

through 277V

Ballast

LE3=Energy Saving Ballast

Electronic Ballast(2) EB51=(1) Ballast for

use with T5 Lamp

EB52=(2) Ballasts for use with T5 Lamp

EB81=(1) Ballast for use with T8 Lamp

EB82=(2) Ballasts for use with T8 Lamp

EB21=(1) Ballast for use with T12 Lamp

EB22=(2) Ballasts for use with T12Lamp

Options

EBP=Emergency

Battery Pack

GLR=Fuse and

Holder

Z=Low

Temperature

Starting Ballast

LL=Lamps Included

Accessories

(Order Separately) DWC-X(3)=Quick

Disconnect

Power Cord (X=Cord Length)

SMB=Surface Mounting

Bracket Kit

CMB=Chain Mounting Bracket

500 Hours

• Heavy gauge aluminum

reflector finished with high

reflectance white powder

coat paint. Gloss: 85%;

Reflectance: 93%;

Hardness: 2H; Salt Spray:

500 Hours

• High impact resistant, DR

blended acrylic tube

• 1/2" thick opaque PVC

endcaps are fully sealed

with closed cell silicone

gasketing

• Standard Class P, CBM/ETL

ballast

• Five-foot, three-wire cord

and water-tight connector

is standard. Other cord

lengths are available

• Stainless steel sash chain

and S-hooks standard.

Heavy duty stainless steel

surface/wall mounting

bracket optional

Notes: For additional options, consult your Cooper Lighting Representative. Specifications and Dimensions subject to change without notice.

1Products also available in non-US voltages and 50Hz for international markets. Consult factory for availability and ordering information.

2 For specific electronic ballasts, specify brand name and catalog number. 3 Consult factory for cord length options and availability.

COOPER LIGHTING 1469
