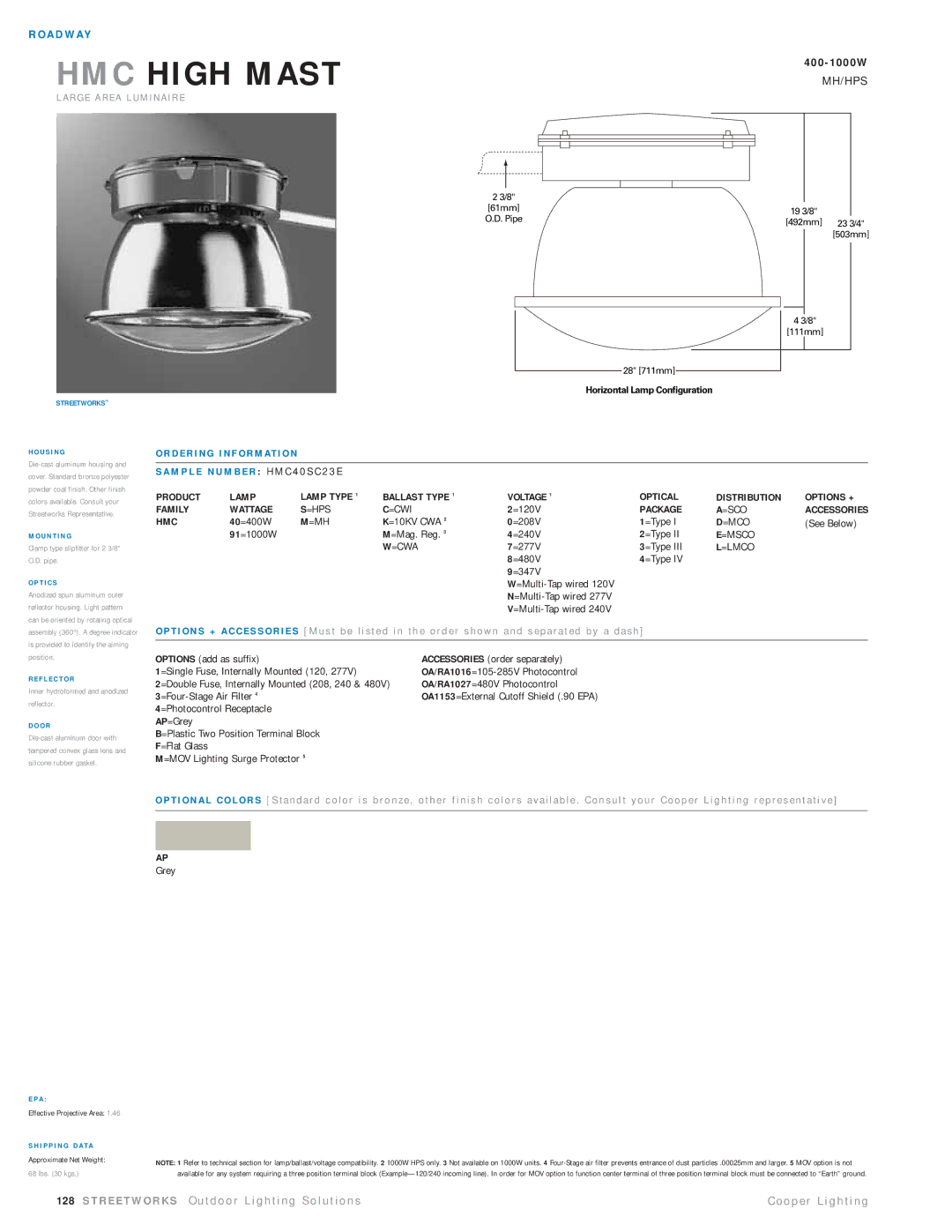

R O A D W AY



HMC HIGH MAST

400-1000W

MH/HPS

L A R G E A R E A L U M I N A I R E

2 3/8"

[61mm]

O.D. Pipe

28" [711mm]

Horizontal Lamp Configuration

19 3/8"

[492mm] 23 3/4" [503mm]

43/8"

[111mm]

STREETWORKS™

H O U S I N G

Die-cast aluminum housing and cover. Standard bronze polyester powder coat finish. Other finish colors available. Consult your Streetworks Representative.

M O U N T I N G

Clamp type slipfitter for 2 3/8" O.D. pipe.

O P T I C S

Anodized spun aluminum outer reflector housing. Light pattern can be oriented by rotating optical assembly (360°). A degree indicator is provided to identify the aiming position.

R E F L E C T O R

Inner hydroformed and anodized reflector.

D O O R

Die-cast aluminum door with tempered convex glass lens and silicone rubber gasket.

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : H M C 4 0 S C 2 3 E

PRODUCT

LAMP

LAMP TYPE 1

BALLAST TYPE 1

VOLTAGE 1

OPTICAL

DISTRIBUTION

OPTIONS +

FAMILY

WATTAGE

S=HPS

C=CWI



2=120V

PACKAGE

A=SCO

ACCESSORIES

HMC

40=400W

M=MH

K=10KV CWA 2

0=208V

1=Type I

D=MCO

(See Below)



91=1000W



M=Mag. Reg. 3

4=240V

2=Type II

E=MSCO









W=CWA



7=277V

3=Type III

L=LMCO













8=480V

4=Type IV















9=347V

















W=Multi-Tap wired 120V

















N=Multi-Tap wired 277V

















V=Multi-Tap wired 240V







O P T I O N S + A C C E S S O R I E S [ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]



















OPTIONS (add as suffix)





ACCESSORIES (order separately)







1=Single Fuse, Internally Mounted (120, 277V)



OA/RA1016=105-285V Photocontrol







2=Double Fuse, Internally Mounted (208, 240 & 480V)

OA/RA1027=480V Photocontrol







3=Four-Stage Air Filter 4





OA1153=External Cutoff Shield (.90 EPA)







4=Photocontrol Receptacle















AP=Grey

















B=Plastic Two Position Terminal Block

F=Flat Glass

M=MOV Lighting Surge Protector 5

O P T I O N A L C O L O R S [ S t a n d a r d c o l o r i s b r o n z e , o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]

AP

Grey

E PA :

Effective Projective Area: 1.46

S H I P P I N G D ATA

Approximate Net Weight:

68 lbs. (30 kgs.)

NOTE: 1 Refer to technical section for lamp/ballast/voltage compatibility. 2 1000W HPS only. 3 Not available on 1000W units. 4 Four-Stage air filter prevents entrance of dust particles .00025mm and larger. 5 MOV option is not available for any system requiring a three position terminal block (Example—120/240 incoming line). In order for MOV option to function center terminal of three position terminal block must be connected to “Earth” ground.

128 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s

C o o p e r L i g h t i n g
