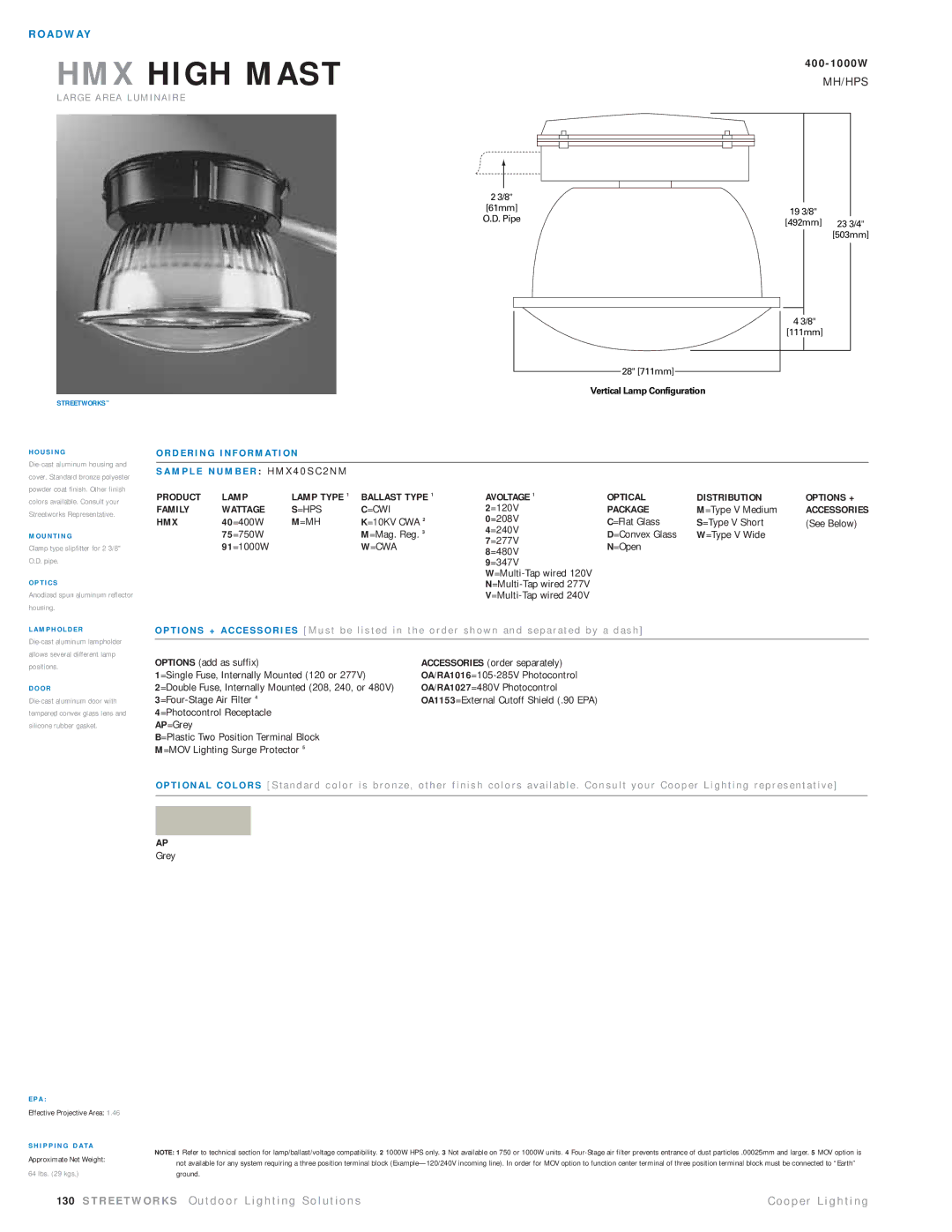

R O A D W AY

HMX HIGH MAST

MH/HPS



400-1000W

L A R G E A R E A L U M I N A I R E

2 3/8"

[61mm]

O.D. Pipe

28" [711mm]

Vertical Lamp Configuration

19 3/8"

[492mm] 23 3/4" [503mm]

43/8"

[111mm]

STREETWORKS™

H O U S I N G

Die-cast aluminum housing and cover. Standard bronze polyester powder coat finish. Other finish colors available. Consult your Streetworks Representative.

M O U N T I N G

Clamp type slipfitter for 2 3/8" O.D. pipe.

O P T I C S

Anodized spun aluminum reflector housing.

L A M P H O L D E R

Die-cast aluminum lampholder allows several different lamp positions.

D O O R

Die-cast aluminum door with tempered convex glass lens and silicone rubber gasket.

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : H M X 4 0 S C 2 N M

PRODUCT

LAMP

LAMP TYPE 1

BALLAST TYPE 1

AVOLTAGE 1

OPTICAL

DISTRIBUTION

OPTIONS +

FAMILY

WATTAGE

S=HPS

C=CWI



2=120V

PACKAGE

M=Type V Medium

ACCESSORIES

HMX

40=400W

M=MH

K=10KV CWA 2

0=208V

C=Flat Glass

S=Type V Short

(See Below)



75=750W



M=Mag. Reg. 3

4=240V

D=Convex Glass

W=Type V Wide





91=1000W



W=CWA



7=277V

N=Open











8=480V































9=347V

















W=Multi-Tap wired 120V

















N=Multi-Tap wired 277V

















V=Multi-Tap wired 240V







O P T I O N S + A C C E S S O R I E S [ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]



















OPTIONS (add as suffix)





ACCESSORIES (order separately)







1=Single Fuse, Internally Mounted (120 or 277V)

OA/RA1016=105-285V Photocontrol







2=Double Fuse, Internally Mounted (208, 240, or 480V)

OA/RA1027=480V Photocontrol







3=Four-Stage Air Filter 4





OA1153=External Cutoff Shield (.90 EPA)







4=Photocontrol Receptacle















AP=Grey

















B=Plastic Two Position Terminal Block

M=MOV Lighting Surge Protector 5

O P T I O N A L C O L O R S [ S t a n d a r d c o l o r i s b r o n z e , o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]

AP

Grey

E PA :

Effective Projective Area: 1.46

S H I P P I N G D ATA

Approximate Net Weight:

64 lbs. (29 kgs.)

NOTE: 1 Refer to technical section for lamp/ballast/voltage compatibility. 2 1000W HPS only. 3 Not available on 750 or 1000W units. 4 Four-Stage air filter prevents entrance of dust particles .00025mm and larger. 5 MOV option is not available for any system requiring a three position terminal block (Example—120/240V incoming line). In order for MOV option to function center terminal of three position terminal block must be connected to “Earth” ground.

130 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s

C o o p e r L i g h t i n g
