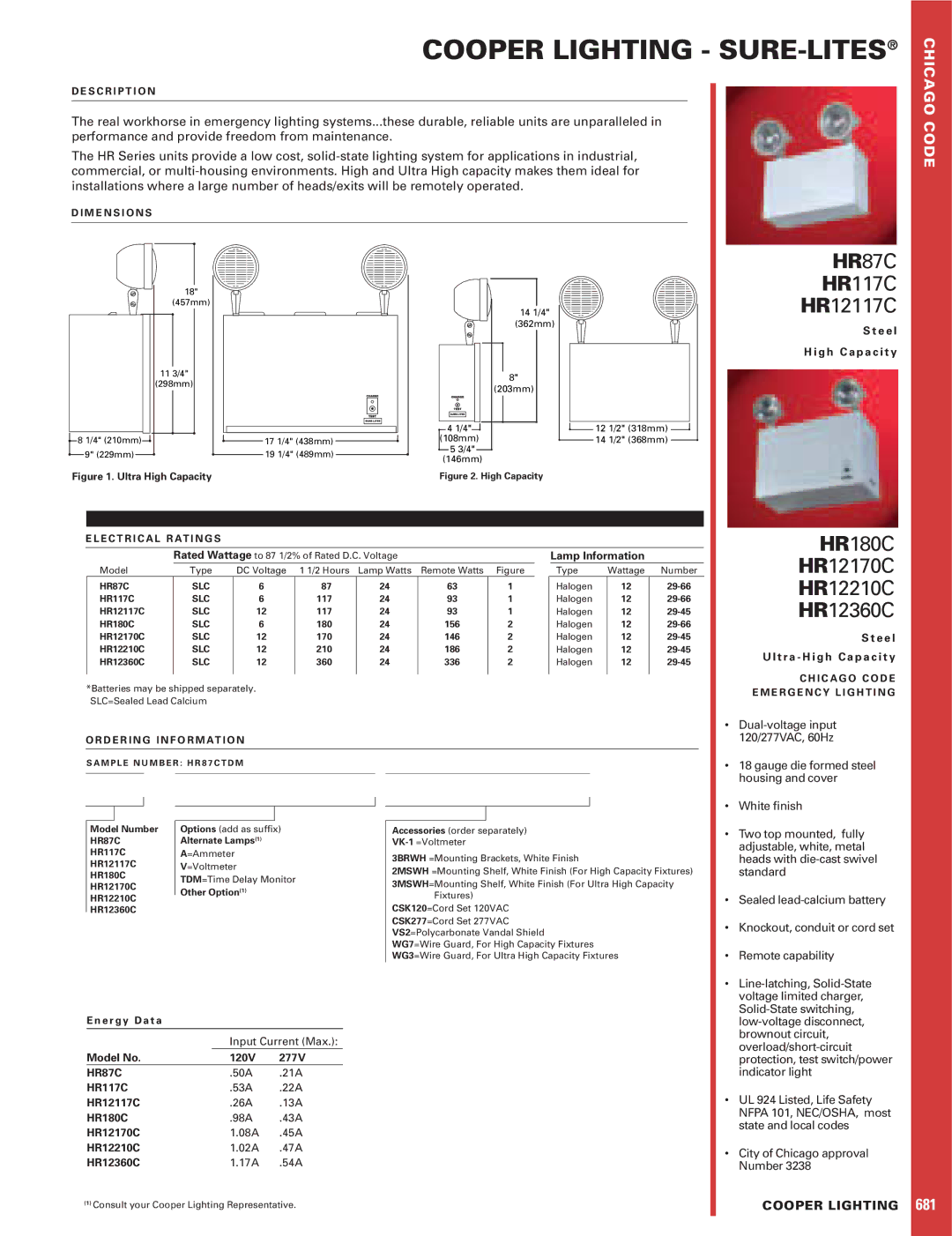

Cooper Lighting HR12170C, HR12210C, HR12360C, HR180C dimensions

681

CHICAGO CODE

COOPER LIGHTING

COOPER LIGHTING - SURE-LITES®

Steel

Ultra-High Capacity

CHICAGO CODE

EMERGENCY LIGHTING

• Dual-voltage input

120/277VAC, 60Hz

• 18 gauge die formed steel

housing and cover

• White ﬁnish

• Two top mounted, fully

adjustable, white, metal

heads with die-cast swivel

standard

• Sealed lead-calcium battery

• Knockout, conduit or cord set

• Remote capability

• Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low-voltage disconnect,

brownout circuit,

overload/short-circuit

protection, test switch/power

indicator light

• UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA, most

state and local codes

• City of Chicago approval

Number 3238

HR87C

HR117C

HR12117C

Steel

High Capacity

HR180C

HR12170C

HR12210C

HR12360C

Model Type DC Voltage 1 1/2 Hours Lamp Watts Remote Watts Figure

HR87C SLC 6 87 24 63 1

HR117C SLC 6 117 24 93 1

HR12117C SLC 12 117 24 93 1

HR180C SLC 6 180 24 156 2

HR12170C SLC 12 170 24 146 2

HR12210C SLC 12 210 24 186 2

HR12360C SLC 12 360 24 336 2

DIMENSIONS

DESCRIPTION

The real workhorse in emergency lighting systems...these durable, reliable units are unparalleled in

performance and provide freedom from maintenance.

The HR Series units provide a low cost, solid-state lighting system for applications in industrial,

commercial, or multi-housing environments. High and Ultra High capacity makes them ideal for

installations where a large number of heads/exits will be remotely operated.

8 1/4" (210mm)

9" (229mm)

11 3/4"

(298mm)

18"

(457mm)

17 1/4" (438mm)

19 1/4" (489mm)

5 3/4"

(146mm)

4 1/4"

(108mm)

14 1/4"

(362mm)

(203mm)

12 1/2" (318mm)

14 1/2" (368mm)

Accessories (order separately)

VK-1 =Voltmeter

3BRWH =Mounting Brackets, White Finish

2MSWH =Mounting Shelf, White Finish (For High Capacity Fixtures)

3MSWH=Mounting Shelf, White Finish (For Ultra High Capacity

Fixtures)

CSK120=Cord Set 120VAC

CSK277=Cord Set 277VAC

VS2=Polycarbonate Vandal Shield

WG7=Wire Guard, For High Capacity Fixtures

WG3=Wire Guard, For Ultra High Capacity Fixtures

ORDERING INFORMATION

Model Number

HR87C

HR117C

HR12117C

HR180C

HR12170C

HR12210C

HR12360C

SAMPLE NUMBER: HR87CTDM

Options (add as sufﬁx)

Alternate Lamps(1)

A=Ammeter

V=Voltmeter

TDM=Time Delay Monitor

Other Option(1)

ELECTRICAL RATINGS

Rated Wattage to 87 1/2% of Rated D.C. Voltage Lamp Information

Type Wattage Number

Halogen 12 29-66

Halogen 12 29-45

Halogen 12 29-66

Halogen 12 29-45

*Batteries may be shipped separately.

SLC=Sealed Lead Calcium

Energy Data

Input Current (Max.):

Model No. 120V 277V

HR87C .50A .21A

HR117C .53A .22A

HR12117C .26A .13A

HR180C .98A .43A

HR12170C 1.08A .45A

HR12210C 1.02A .47A

HR12360C 1.17A .54A

Figure 1. Ultra High Capacity Figure 2. High Capacity

(1) Consult your Cooper Lighting Representative.
