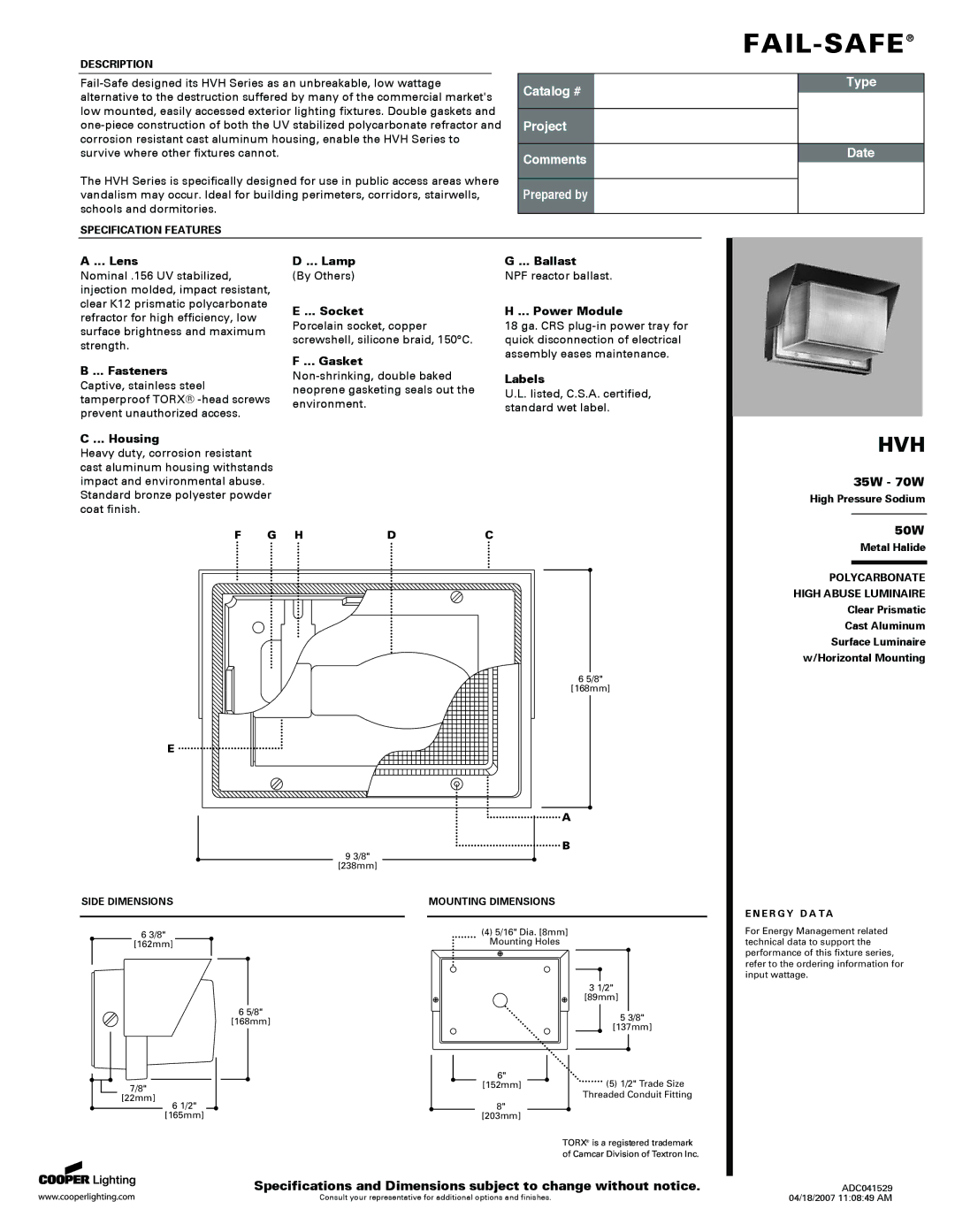

DESCRIPTION

Fail-Safe designed its HVH Series as an unbreakable, low wattage alternative to the destruction suffered by many of the commercial market's low mounted, easily accessed exterior lighting fixtures. Double gaskets and one-piece construction of both the UV stabilized polycarbonate refractor and corrosion resistant cast aluminum housing, enable the HVH Series to survive where other fixtures cannot.

The HVH Series is specifically designed for use in public access areas where vandalism may occur. Ideal for building perimeters, corridors, stairwells, schools and dormitories.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

FAIL-SAFE®

Type

Date

A ... Lens

Nominal .156 UV stabilized, injection molded, impact resistant, clear K12 prismatic polycarbonate refractor for high efficiency, low surface brightness and maximum strength.

B ... Fasteners

Captive, stainless steel tamperproof TORX® -head screws prevent unauthorized access.

C ... Housing

Heavy duty, corrosion resistant cast aluminum housing withstands impact and environmental abuse. Standard bronze polyester powder coat finish.

D ... Lamp

(By Others)

E ... Socket

Porcelain socket, copper screwshell, silicone braid, 150°C.

F ... Gasket

Non-shrinking, double baked neoprene gasketing seals out the environment.

G ... Ballast

NPF reactor ballast.

H ... Power Module

18 ga. CRS plug-in power tray for quick disconnection of electrical assembly eases maintenance.

Labels

U.L. listed, C.S.A. certified, standard wet label.

HVH

35W - 70W

High Pressure Sodium

F G HDC

6 5/8"

[168mm]

E

A

B

93/8"

[238mm]

SIDE DIMENSIONS

MOUNTING DIMENSIONS



6 3/8"



(4) 5/16" Dia. [8mm]



[162mm]

Mounting Holes









3 1/2"







[89mm]





6 5/8"

5 3/8"





[168mm]





[137mm]











6"

(5) 1/2" Trade Size

7/8"



[152mm]





Threaded Conduit Fitting

[22mm]





6 1/2"

8"







[165mm]

[203mm]



50W

Metal Halide

POLYCARBONATE HIGH ABUSE LUMINAIRE Clear Prismatic Cast Aluminum Surface Luminaire

w/Horizontal Mounting

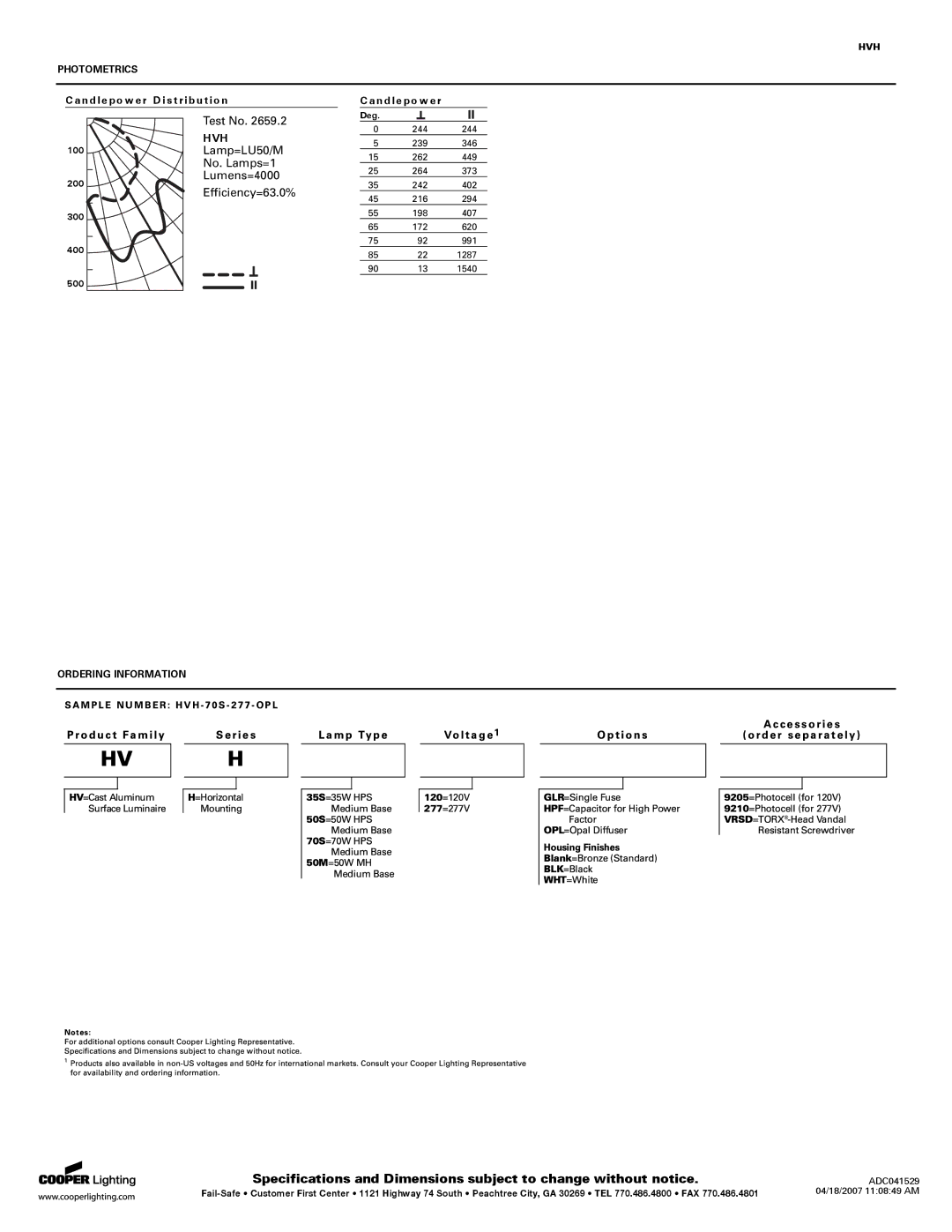

E N E R G Y D A TA

For Energy Management related technical data to support the performance of this fixture series, refer to the ordering information for input wattage.

Specifications and Dimensions subject to change without notice.

ADC041529

Consult your representative for additional options and finishes.

04/18/2007 11:08:49 AM

Page 1
