D I M E N S I O N S

8" [203mm]

3-13/16" [97mm]

9" [228mm]

12-3/16" [310mm]

3-13/16" [97mm]

13-7/32" [336mm]

O R D E R I N G I N F O R M AT I O N

D E S C R I P T I O N

The Fail-Safe Harmony VR Linear Series provides exceptional aesthetics with remarkable strength. A wide variety of lamp options and connection configurations offer unmatched versatility for a wide range of applications. Die-Cast end caps, heavy extruded aluminum body provides strength and rigidity for complex environments while an extruded prismatic polycarbonate lens obscures the lamp image and spreads light evenly. The Harmony VR Linear Series is ideal for areas where the need for aesthetics and protection from vandalism are critical. Perfect for schools, hospitals, corridors, dormitories, public restrooms, common areas, and transit stations.

FAIL-SAFE®

ARCHITECTURAL









VANDAL



HVL

RESISTANT







LINEAR



FLUORESCENT















1 4 W - 1 0 8 W ( H V L 8 )



F l u o r e s c e n t



2 8 W - 2 1 6 W ( H V L 1 2 )



F l u o r e s c e n t



P O LY C A R B O N AT E L I N E A R F L U O R E S C E N T L U M I N A I R E C L E A R P R I S M AT I C O R O PA L

S A M P L E N U M B E R : H V L 8 B R - 3 3 2 - 1 2 0 V - O - E B 8 2 - S R W

Product Family

HVL8=Harmony

VR Linear

8" Width

HVL12=Harmony

VR Linear

12" Width

Row/Node

Configuration3

BR=Beginning

MR=Middle

ER=End

Lamp Type

2' Length

114=(1) 14W T5 Lamp 4

214=(2) 14W T5 Lamps

314=(3) 14W T5 Lamps 5

414=(4) 14W T5 Lamps 5

124=(1) 24W T5HO Lamp 4

224=(2) 24W T5HO Lamps

324=(3) 24W T5HO Lamps 5

424=(4) 24W T5HO Lamps 5

117=(1) 17W T8 Lamp 4

217=(2) 17W T8 Lamps

317=(3) 17W T8 Lamps 5

417=(4) 17W T8 Lamps 5

4' Length

128=(1) 28W T5 Lamp 4

228=(2) 28W T5 Lamps

328=(3) 28W T5 Lamps 5

428=(4) 28W T5 Lamps 5

154=(1) 54W T5HO Lamp 4

254=(2) 54W T5HO Lamps

354=(3) 54W T5HO Lamps 5

454=(4) 54W T5HO Lamps 5

132=(1) 32W T8 Lamp 4

232=(2) 32W T8 Lamps

332=(3) 32W T8 Lamps 5

432=(4) 32W T8 Lamps 5

Voltage

120=120V

277=277V

347=347V UNV=120-277V UNC=347-480V

Lens Type

C=Clear Prismatic O=Opal

Electronic Ballast EB81=(1) Ballast for

use with T8 lamp

EB82=(2) Ballasts for use with T8 lamps

EB51=(1) Ballast for use with T5 lamp

EB52=(2) Ballasts for use with T5 lamp

End Caps

BLANK=No End

Caps (Middle

Units) 3

D=Decorative End

Caps

S=Smooth End

Caps

Options

EBP=Emergency Battery

Pack 1

FNL=Fluorescent Night

Light

PM=Pendant Mount 2

GLR=Fuse and Holder

PI/CPI=Plug-In

(1,2, or 3) 3

TILW=Tandem Inline

Wiring 3

SRW=Single Raceway 3

DRW=Dual Raceway (2

Lamp Max) 3

UPL=Uplight

Finish

Blank=Architectural White

BK=Architectural Black

DP=Dark Platinum

Accessories

(Order Separately)

VRSD=TORX®

Screwdriver

VRSB=TORX®

Screwdriver Bit

Heavy duty extruded aluminum rails and die- cast end caps provide rigid construction

White finish standard. Optional architectural colors available.

One piec extruded UV stabilized polycarbonate with unique prismatic design that provides even light distribution while obscuring lamp image and direct glare.

Stainless stell TORX® with center reject pin and allen head set screws provided

20 ga. CRS reflector with white high polyester powder coat finish

Lamps by others

Ballasts are standard CBM/ETL Class P and positively secured to housing

Pressure lock lampholders

UL Listed and CSA Certified Wet Location for covered ceiling surface mount. Damp location standard for all other mountings

N o t e s : For additional options, consult your Cooper Lighting Representative. Specifications and dimensions subject to change without notice. Products also available in non-US voltages and 50Hz for international markets.

1.Must specify voltage. 2. Stems must be ordered separately. 3. For Continuous Row Mount fixtures only. 4. For HVL8 fixtures only. 5. For HVL12 fixtures only.

COOPER LIGHTING 1427

Page 1

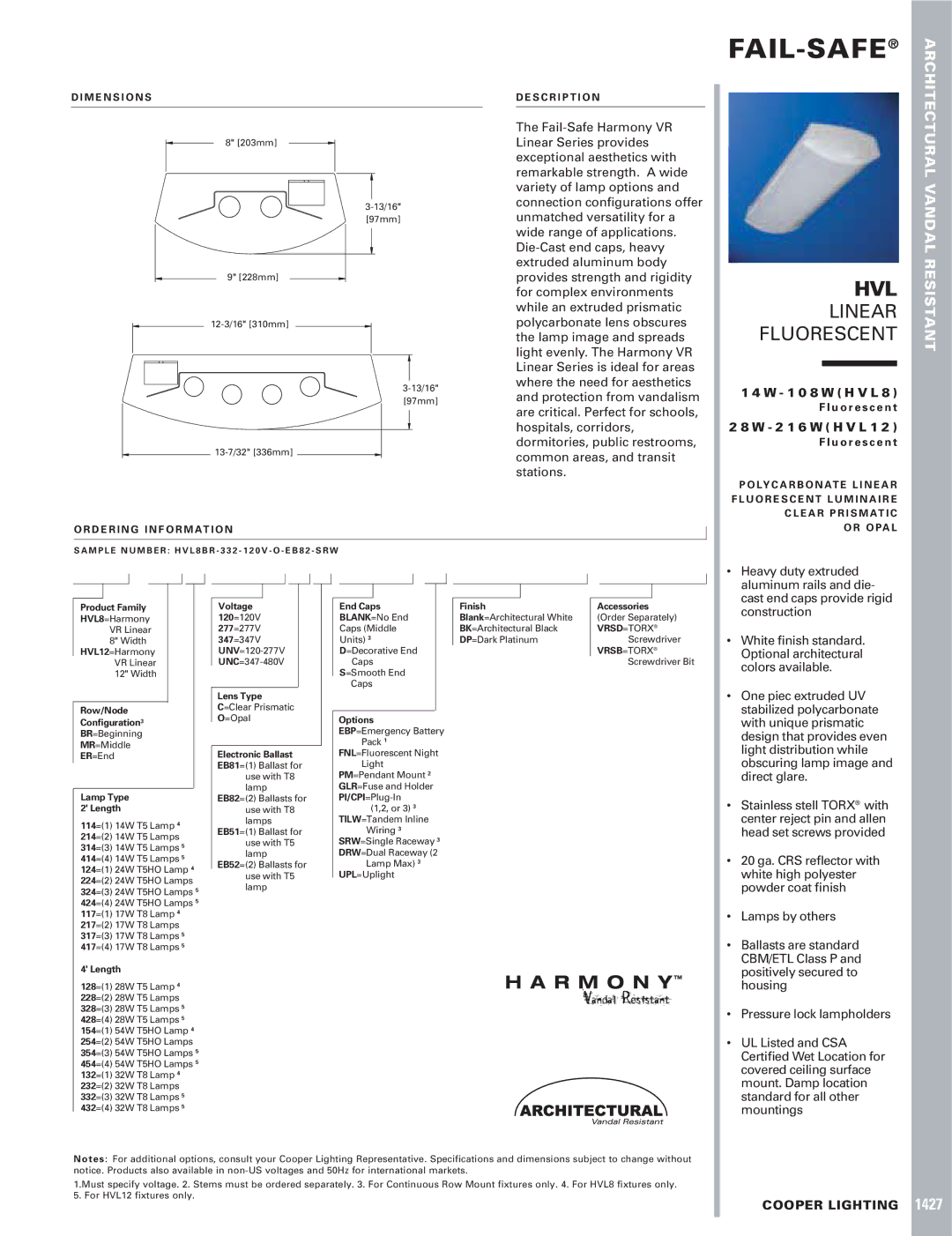

Image 1
