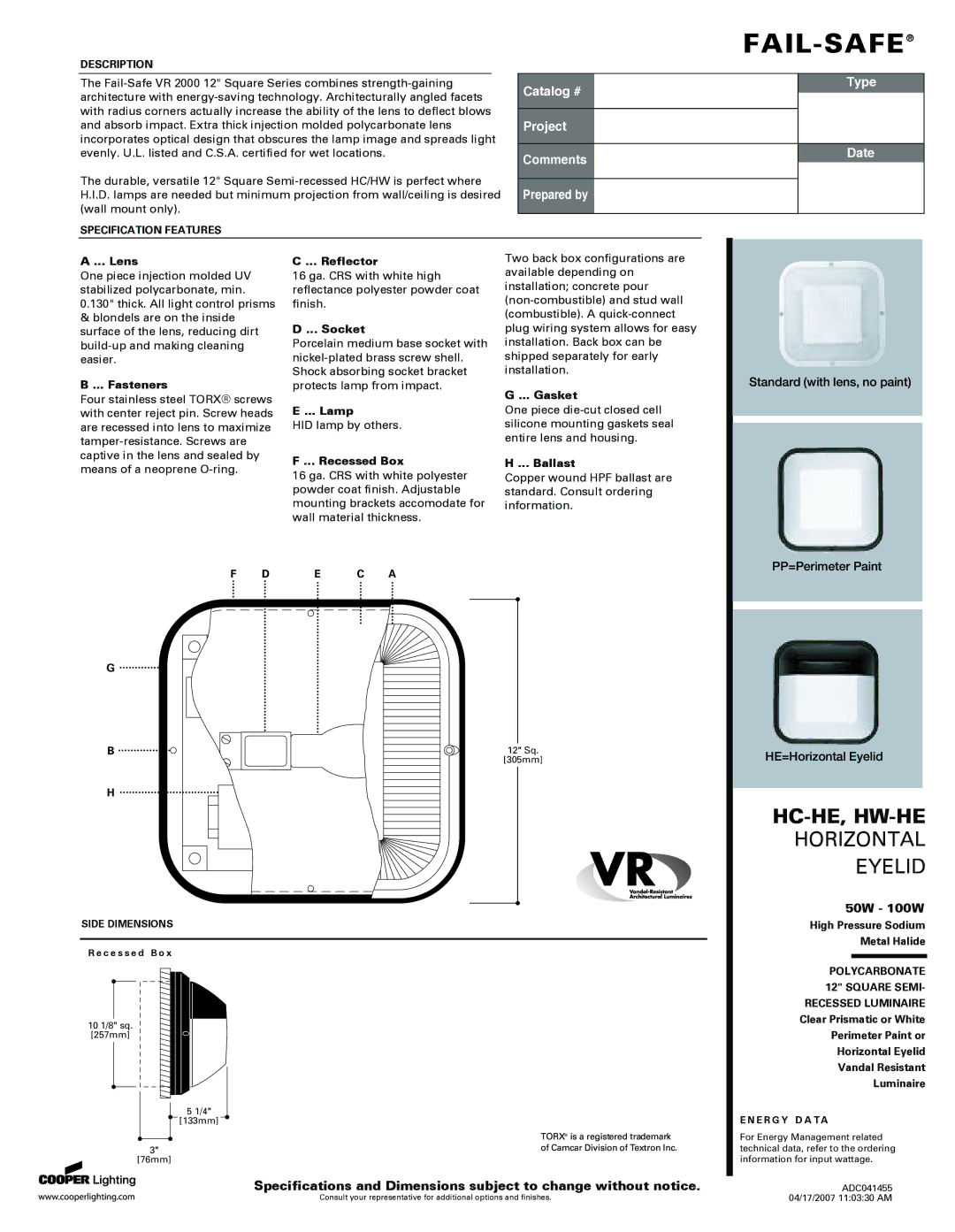

Cooper Lighting HC-HE specifications Lens, Fasteners, Reflector, Socket, Lamp, Recessed Box

DESCRIPTION

The Fail-Safe VR 2000 12" Square Series combines strength-gaining architecture with energy-saving technology. Architecturally angled facets with radius corners actually increase the ability of the lens to deflect blows and absorb impact. Extra thick injection molded polycarbonate lens incorporates optical design that obscures the lamp image and spreads light evenly. U.L. listed and C.S.A. certified for wet locations.

The durable, versatile 12" Square Semi-recessed HC/HW is perfect where H.I.D. lamps are needed but minimum projection from wall/ceiling is desired (wall mount only).

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

FAIL-SAFE®

Type

Date

A ... Lens

One piece injection molded UV stabilized polycarbonate, min. 0.130" thick. All light control prisms

&blondels are on the inside surface of the lens, reducing dirt build-up and making cleaning easier.

B ... Fasteners

Four stainless steel TORX® screws with center reject pin. Screw heads are recessed into lens to maximize tamper-resistance. Screws are captive in the lens and sealed by means of a neoprene O-ring.

C ... Reflector

16 ga. CRS with white high reflectance polyester powder coat finish.

D ... Socket

Porcelain medium base socket with nickel-plated brass screw shell. Shock absorbing socket bracket protects lamp from impact.

E ... Lamp

HID lamp by others.

F ... Recessed Box

16 ga. CRS with white polyester powder coat finish. Adjustable mounting brackets accomodate for wall material thickness.

Two back box configurations are available depending on installation; concrete pour (non-combustible) and stud wall (combustible). A quick-connect plug wiring system allows for easy installation. Back box can be shipped separately for early installation.

G ... Gasket

One piece die-cut closed cell silicone mounting gaskets seal entire lens and housing.

H ... Ballast

Copper wound HPF ballast are standard. Consult ordering information.

F D E C A

G

B	12" Sq.
	[305mm]

H

SIDE DIMENSIONS

R e c e s s e d B o x

10 1/8" sq.

[257mm]

5 1/4"

[133mm]

3"

[76mm]

Specifications and Dimensions subject to change without notice.

Consult your representative for additional options and finishes.

HC-HE, HW-HE HORIZONTAL

EYELID

50W - 100W

High Pressure Sodium

Metal Halide

POLYCARBONATE 12" SQUARE SEMI-

RECESSED LUMINAIRE Clear Prismatic or White Perimeter Paint or Horizontal Eyelid Vandal Resistant Luminaire

E N E R G Y D A TA

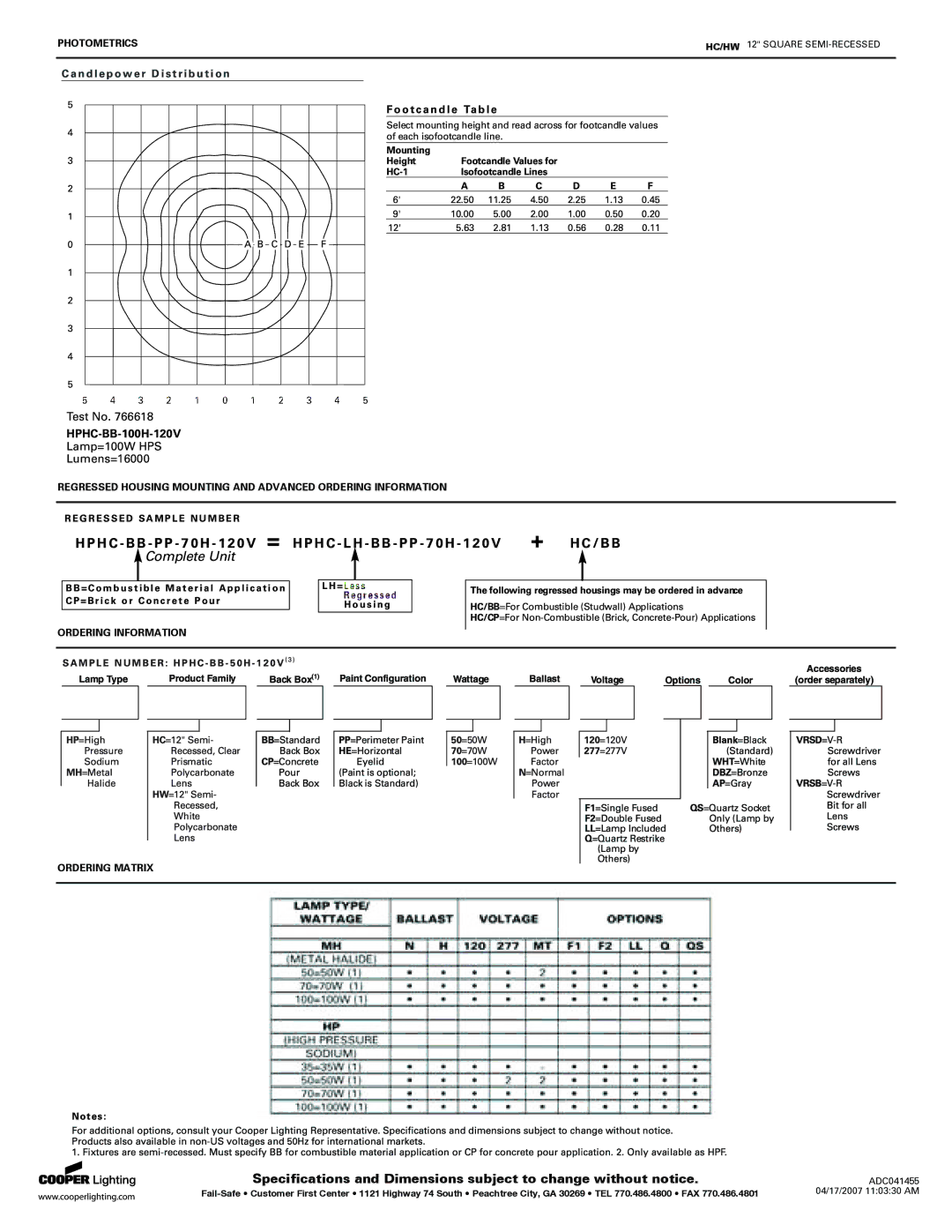

For Energy Management related technical data, refer to the ordering information for input wattage.
