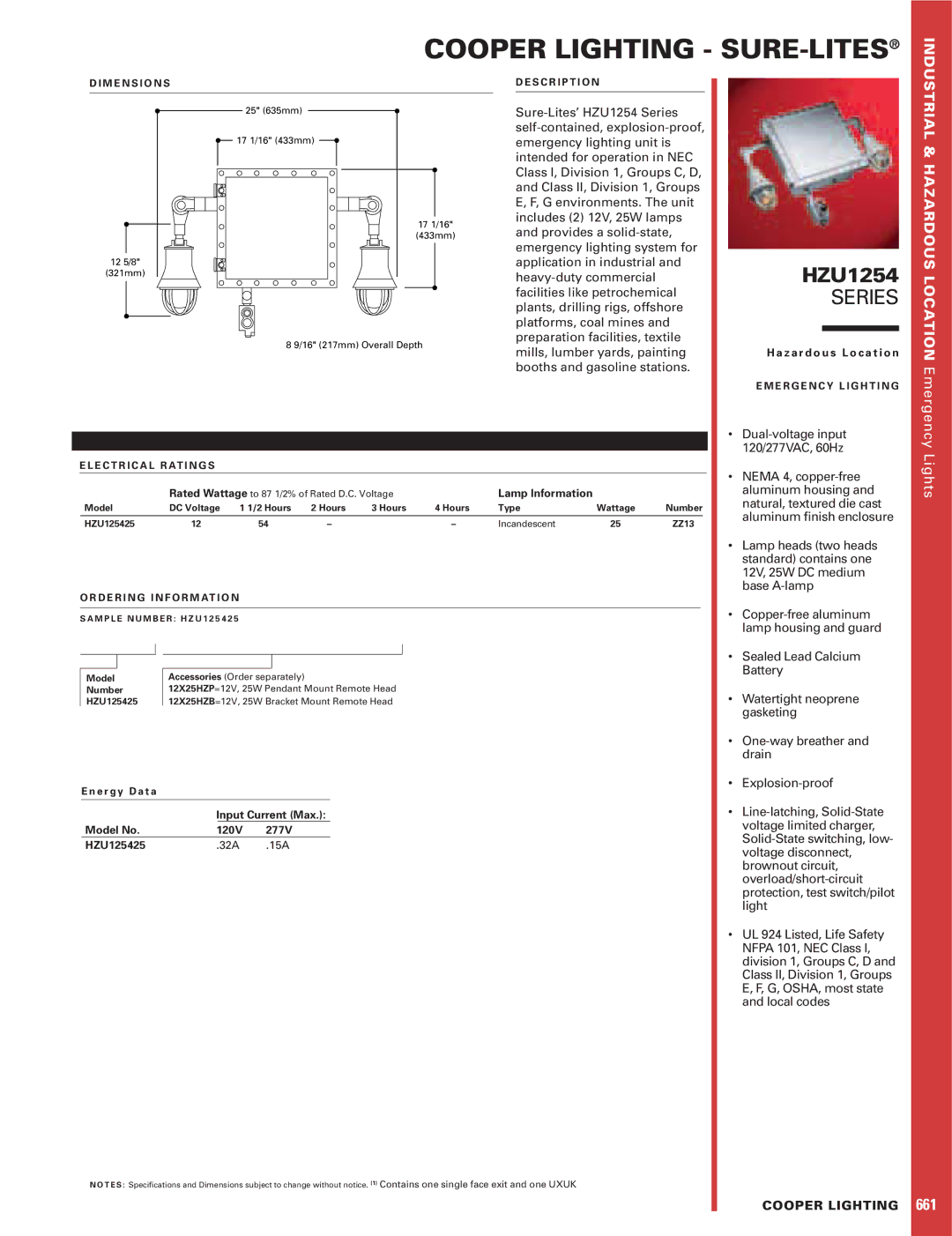

Cooper Lighting HZU1254 dimensions Cooper Lighting SURE-LITES, Explosion-proof

COOPER LIGHTING - SURE-LITES®

D I M E N S I O N S

25" (635mm)

17 1/16" (433mm)

17 1/16"

(433mm)

12 5/8"

(321mm)

8 9/16" (217mm) Overall Depth

D E S C R I P T I O N

Sure-Lites’ HZU1254 Series self-contained, explosion-proof, emergency lighting unit is intended for operation in NEC Class I, Division 1, Groups C, D, and Class II, Division 1, Groups E, F, G environments. The unit includes (2) 12V, 25W lamps and provides a solid-state, emergency lighting system for application in industrial and heavy-duty commercial facilities like petrochemical plants, drilling rigs, offshore platforms, coal mines and preparation facilities, textile mills, lumber yards, painting booths and gasoline stations.

HZU1254

SERIES

H a z a r d o u s L o c a t i o n

E M E R G E N C Y L I G H T I N G

E L E C T R I C A L R AT I N G S

	Rated Wattage to 87 1/2% of Rated D.C. Voltage					Lamp Information
Model	DC Voltage	1 1/2 Hours	2 Hours	3 Hours	4 Hours	Type	Wattage	Number
HZU125425	12	54	–		–	Incandescent	25	ZZ13

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : H Z U 1 2 5 4 2 5

Model	Accessories (Order separately)
Number	12X25HZP=12V, 25W Pendant Mount Remote Head
HZU125425	12X25HZB=12V, 25W Bracket Mount Remote Head

E n e r g y D a t a

	Input Current (Max.):
Model No.	120V	277V
HZU125425	.32A	.15A

•Dual-voltage input 120/277VAC, 60Hz

•NEMA 4, copper-free aluminum housing and natural, textured die cast aluminum finish enclosure

•Lamp heads (two heads standard) contains one 12V, 25W DC medium base A-lamp

•Copper-free aluminum lamp housing and guard

•Sealed Lead Calcium Battery

•Watertight neoprene gasketing

•One-way breather and drain

•Explosion-proof

•Line-latching, Solid-State voltage limited charger, Solid-State switching, low- voltage disconnect, brownout circuit, overload/short-circuit protection, test switch/pilot light

•UL 924 Listed, Life Safety NFPA 101, NEC Class I, division 1, Groups C, D and Class II, Division 1, Groups E, F, G, OSHA, most state and local codes

INDUSTRIAL & HAZARDOUS LOCATION Emergency Lights

N O T E S : Specifications and Dimensions subject to change without notice. (1) Contains one single face exit and one UXUK

COOPER LIGHTING

661
