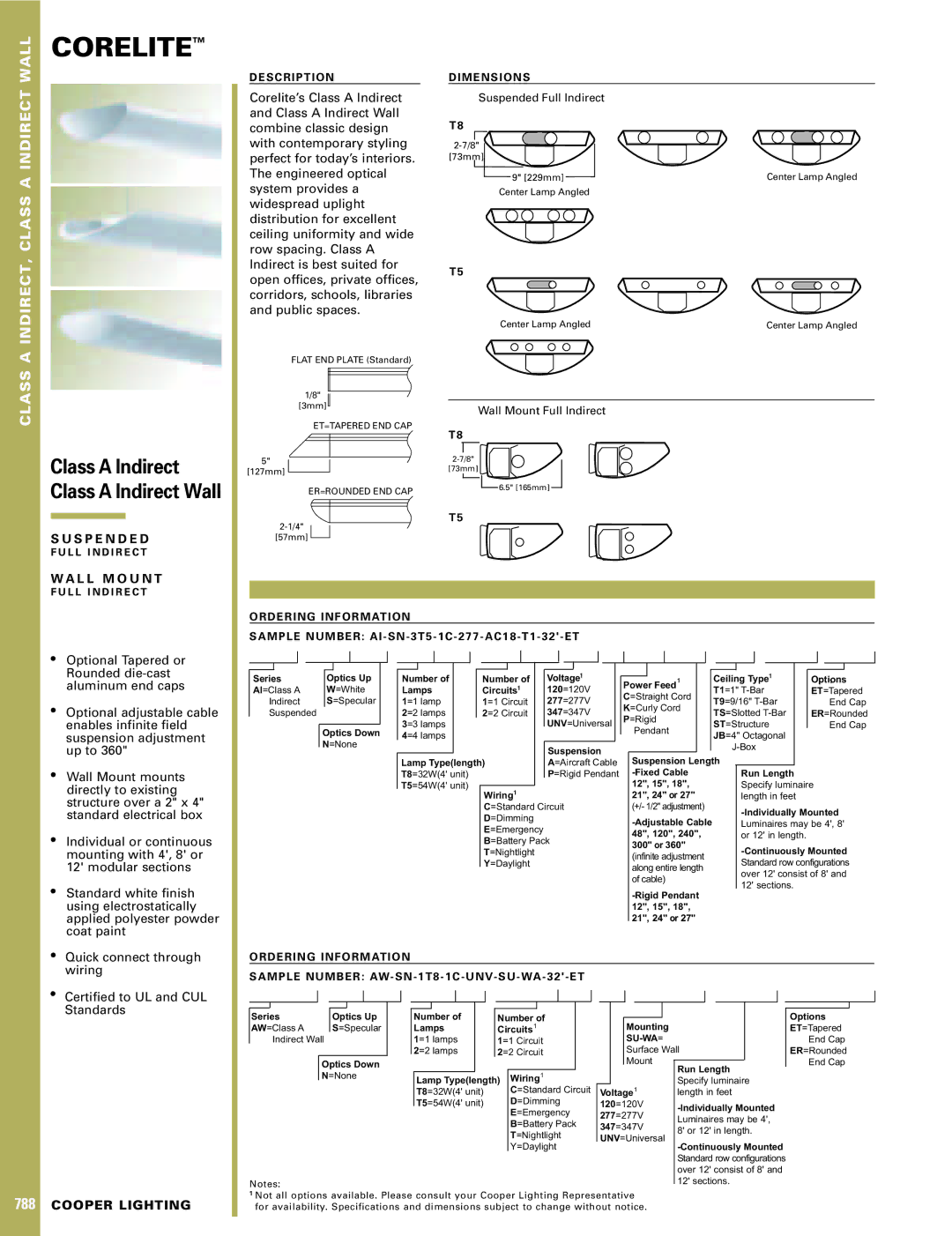

A INDIRECT, CLASS A INDIRECT WALL CORELITE™

DESCRIPTION

Corelite’s Class A Indirect and Class A Indirect Wall combine classic design with contemporary styling perfect for today’s interiors. The engineered optical system provides a widespread uplight distribution for excellent ceiling uniformity and wide row spacing. Class A Indirect is best suited for open offices, private offices, corridors, schools, libraries and public spaces.

FLAT END PLATE (Standard)

DIMENSIONS

Suspended Full Indirect

T8

2-7/8" [73mm]

9" [229mm]

Center Lamp Angled

T5

Center Lamp Angled

Center Lamp Angled

Center Lamp Angled

CLASS

Class A Indirect Class A Indirect Wall

S U S P E N D E D

F U L L I N D I R E C T

W A L L M O U N T

F U L L I N D I R E C T

1/8"
[3mm]	Wall Mount Full Indirect
ET=TAPERED END CAP	T8
5"	2-7/8"
[127mm]	[73mm]
ER=ROUNDED END CAP	6.5" [165mm]
2-1/4"	T5
[57mm]

ORDERING INFORMATION

SAMPLE NUMBER: AI-SN-3T5-1C-277-AC18-T1-32'-ET

Optional Tapered or Rounded die-cast aluminum end caps

Optional adjustable cable enables infinite field suspension adjustment up to 360"

Series	Optics Up	Number of	Number of	Voltage1
AI=Class A	W=White	Lamps	Circuits1	120=120V
Indirect	S=Specular	1=1 lamp	1=1 Circuit	277=277V
Suspended		2=2 lamps	2=2 Circuit	347=347V
		3=3 lamps		UNV=Universal
	Optics Down
		4=4 lamps
	N=None
				Suspension

Power Feed1	Ceiling Type1	Options1
C=Straight Cord	T1=1" T-Bar	ET=Tapered
	T9=9/16" T-Bar	End Cap
K=Curly Cord
	TS=Slotted T-Bar	ER=Rounded
P=Rigid
	ST=Structure	End Cap
Pendant
	JB=4" Octagonal
	J-Box

Wall Mount mounts directly to existing structure over a 2" x 4" standard electrical box

Individual or continuous mounting with 4', 8' or 12' modular sections

Standard white finish using electrostatically applied polyester powder coat paint

Lamp Type(length)	A=Aircraft Cable
T8=32W(4' unit)	P=Rigid Pendant

T5=54W(4' unit)

Wiring1

C=Standard Circuit

D=Dimming

E=Emergency

B=Battery Pack

T=Nightlight

Y=Daylight

Suspension Length -Fixed Cable

12", 15", 18", 21", 24" or 27" (+/- 1/2" adjustment)

-Adjustable Cable 48", 120", 240", 300" or 360" (infinite adjustment along entire length of cable)

-Rigid Pendant 12", 15", 18", 21", 24" or 27"

Run Length Specify luminaire length in feet

-Individually Mounted Luminaires may be 4', 8' or 12' in length.

-Continuously Mounted Standard row configurations over 12' consist of 8' and 12' sections.

Quick connect through wiring

ORDERING INFORMATION

SAMPLE NUMBER: AW-SN-1T8-1C-UNV-SU-WA-32'-ET

Certified to UL and CUL

Standards

788 COOPER LIGHTING

Series	Optics Up	Number of	Number of		Mounting
AW=Class A	S=Specular	Lamps	Circuits1
Indirect Wall		1=1 lamps	1=1 Circuit		SU-WA=
		2=2 lamps	2=2 Circuit		Surface Wall
	Optics Down				Mount	Run Length
	N=None	Lamp Type(length) Wiring		1
						Specify luminaire
		T8=32W(4' unit)	C=Standard Circuit		Voltage1	length in feet
		T5=54W(4' unit)	D=Dimming		120=120V	-Individually Mounted
			E=Emergency		277=277V
						Luminaires may be 4',
			B=Battery Pack		347=347V
						8' or 12' in length.
			T=Nightlight
					UNV=Universal
			Y=Daylight			-Continuously Mounted

	Standard row configurations
	over 12' consist of 8' and
Notes:	12' sections.

1Not all options available. Please consult your Cooper Lighting Representative for availability. Specifications and dimensions subject to change without notice.

Options

ET=Tapered

End Cap

ER=Rounded

End Cap
