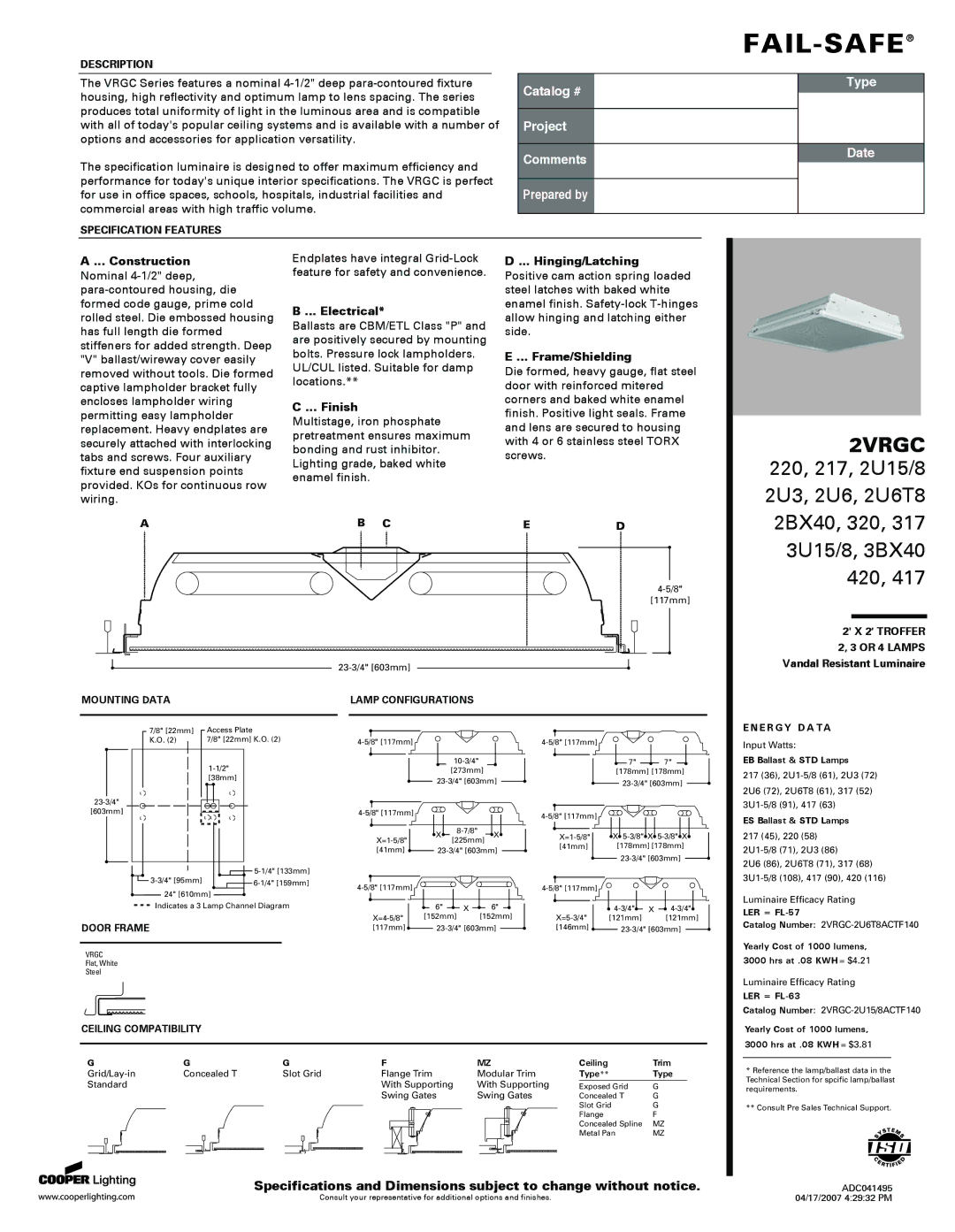

Cooper Lighting Indoor Furnishings specifications Fail-Safe, 2VRGC, 2BX40, 320, 317 3U15/8, 3BX40

DESCRIPTION

The VRGC Series features a nominal 4-1/2" deep para-contoured fixture housing, high reflectivity and optimum lamp to lens spacing. The series produces total uniformity of light in the luminous area and is compatible with all of today's popular ceiling systems and is available with a number of options and accessories for application versatility.

The specification luminaire is designed to offer maximum efficiency and performance for today's unique interior specifications. The VRGC is perfect for use in office spaces, schools, hospitals, industrial facilities and commercial areas with high traffic volume.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

FAIL-SAFE®

TypeDate

A ... Construction

Nominal 4-1/2" deep, para-contoured housing, die formed code gauge, prime cold rolled steel. Die embossed housing has full length die formed stiffeners for added strength. Deep "V" ballast/wireway cover easily removed without tools. Die formed captive lampholder bracket fully encloses lampholder wiring permitting easy lampholder replacement. Heavy endplates are securely attached with interlocking tabs and screws. Four auxiliary fixture end suspension points provided. KOs for continuous row wiring.

Endplates have integral Grid-Lock feature for safety and convenience.

B ... Electrical*

Ballasts are CBM/ETL Class "P" and are positively secured by mounting bolts. Pressure lock lampholders.

UL/CUL listed. Suitable for damp locations.**

C ... Finish

Multistage, iron phosphate pretreatment ensures maximum bonding and rust inhibitor. Lighting grade, baked white enamel finish.

D ... Hinging/Latching

Positive cam action spring loaded steel latches with baked white enamel finish. Safety-lock T-hinges allow hinging and latching either side.

E ... Frame/Shielding

Die formed, heavy gauge, flat steel door with reinforced mitered corners and baked white enamel finish. Positive light seals. Frame and lens are secured to housing with 4 or 6 stainless steel TORX screws.

2VRGC

220, 217, 2U15/8 2U3, 2U6, 2U6T8

A

B CED

4-5/8" [117mm]

23-3/4" [603mm]

2BX40, 320, 317 3U15/8, 3BX40 420, 417

2' X 2' TROFFER

2, 3 OR 4 LAMPS Vandal Resistant Luminaire

MOUNTING DATA LAMP CONFIGURATIONS

7/8" [22mm]	Access Plate
K.O. (2)	7/8" [22mm] K.O. (2)	4-5/8" [117mm]
	1-1/2"			10-3/4"
				[273mm]
	[38mm]		23-3/4" [603mm]
23-3/4"
[603mm]		4-5/8" [117mm]
			X	8-7/8"		X
		X=1-5/8"		[225mm]
		[41mm]	23-3/4" [603mm]
	5-1/4" [133mm]
3-3/4" [95mm]	6-1/4" [159mm]	4-5/8" [117mm]
24" [610mm]
Indicates a 3 Lamp Channel Diagram			6"	X		6"
DOOR FRAME		X=4-5/8"	[152mm]		[152mm]
		[117mm]	23-3/4" [603mm]

VRGC

Flat, White

Steel

4-5/8" [117mm]
	7"	7"
	[178mm] [178mm]
	23-3/4" [603mm]
4-5/8" [117mm]
X=1-5/8"	X 5-3/8" X 5-3/8" X
[41mm]	[178mm] [178mm]
	23-3/4" [603mm]

4-5/8" [117mm]

4-3/4" X 4-3/4"

X=5-3/4" [121mm] [121mm]

[146mm] 23-3/4" [603mm]

E N E R G Y D A TA

Input Watts:

EB Ballast & STD Lamps

217 (36), 2U1-5/8 (61), 2U3 (72)

2U6 (72), 2U6T8 (61), 317 (52)

3U1-5/8 (91), 417 (63)

ES Ballast & STD Lamps

217 (45), 220 (58)

2U1-5/8 (71), 2U3 (86)

2U6 (86), 2U6T8 (71), 317 (68)

3U1-5/8 (108), 417 (90), 420 (116)

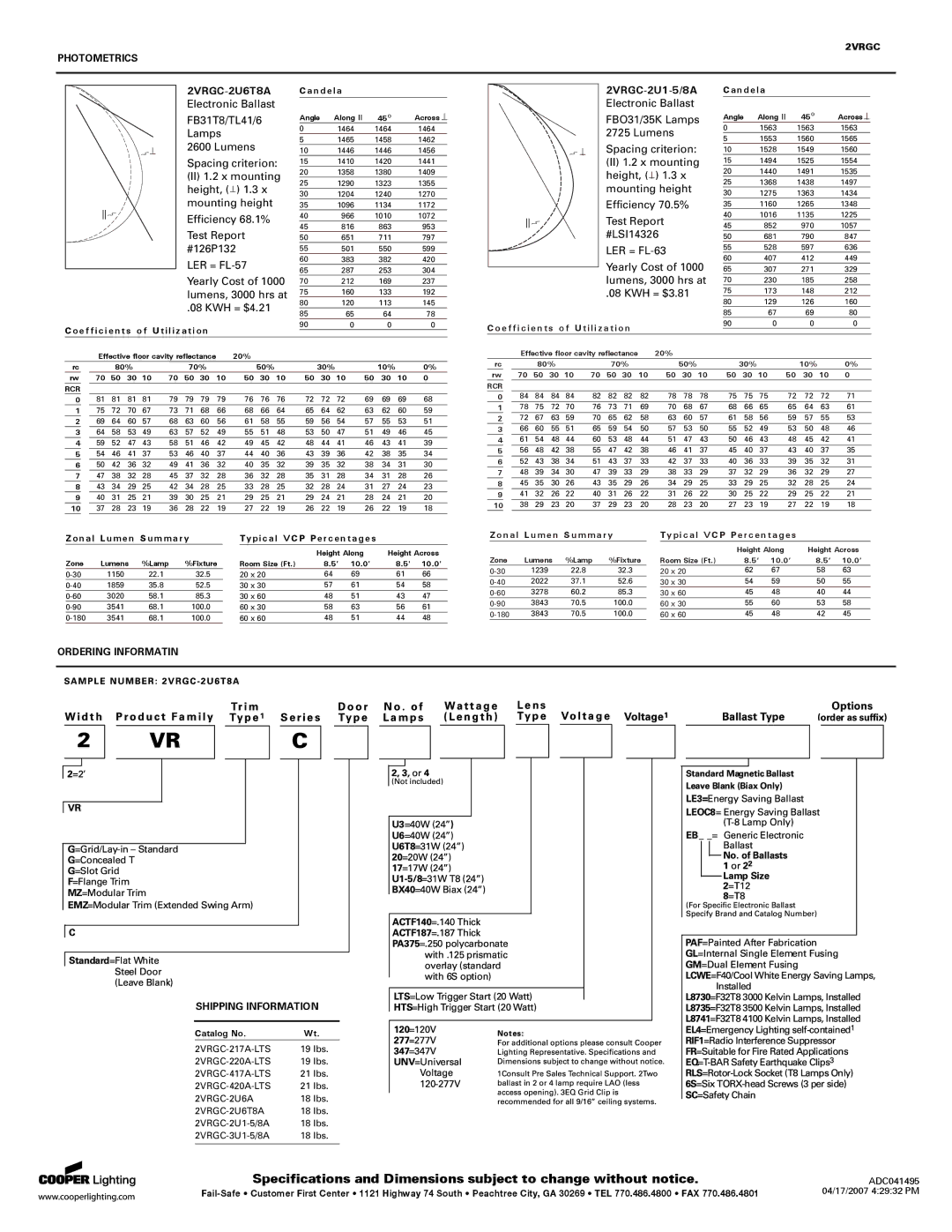

Luminaire Efficacy Rating

LER = FL-57

Catalog Number: 2VRGC-2U6T8ACTF140

Yearly Cost of 1000 lumens, 3000 hrs at .08 KWH = $4.21

Luminaire Efficacy Rating

LER = FL-63

Catalog Number: 2VRGC-2U15/8ACTF140

CEILING COMPATIBILITY

G	G	G	F	MZ	Ceiling	Trim
Grid/Lay-in	Concealed T	Slot Grid	Flange Trim	Modular Trim	Type**	Type
Standard			With Supporting	With Supporting	Exposed Grid	G
			Swing Gates	Swing Gates	Concealed T	G
					Slot Grid	G
					Flange	F
					Concealed Spline	MZ
					Metal Pan	MZ

Specifications and Dimensions subject to change without notice.

Consult your representative for additional options and finishes.

Yearly Cost of 1000 lumens, 3000 hrs at .08 KWH = $3.81

*Reference the lamp/ballast data in the Technical Section for spcific lamp/ballast requirements.

**Consult Pre Sales Technical Support.
