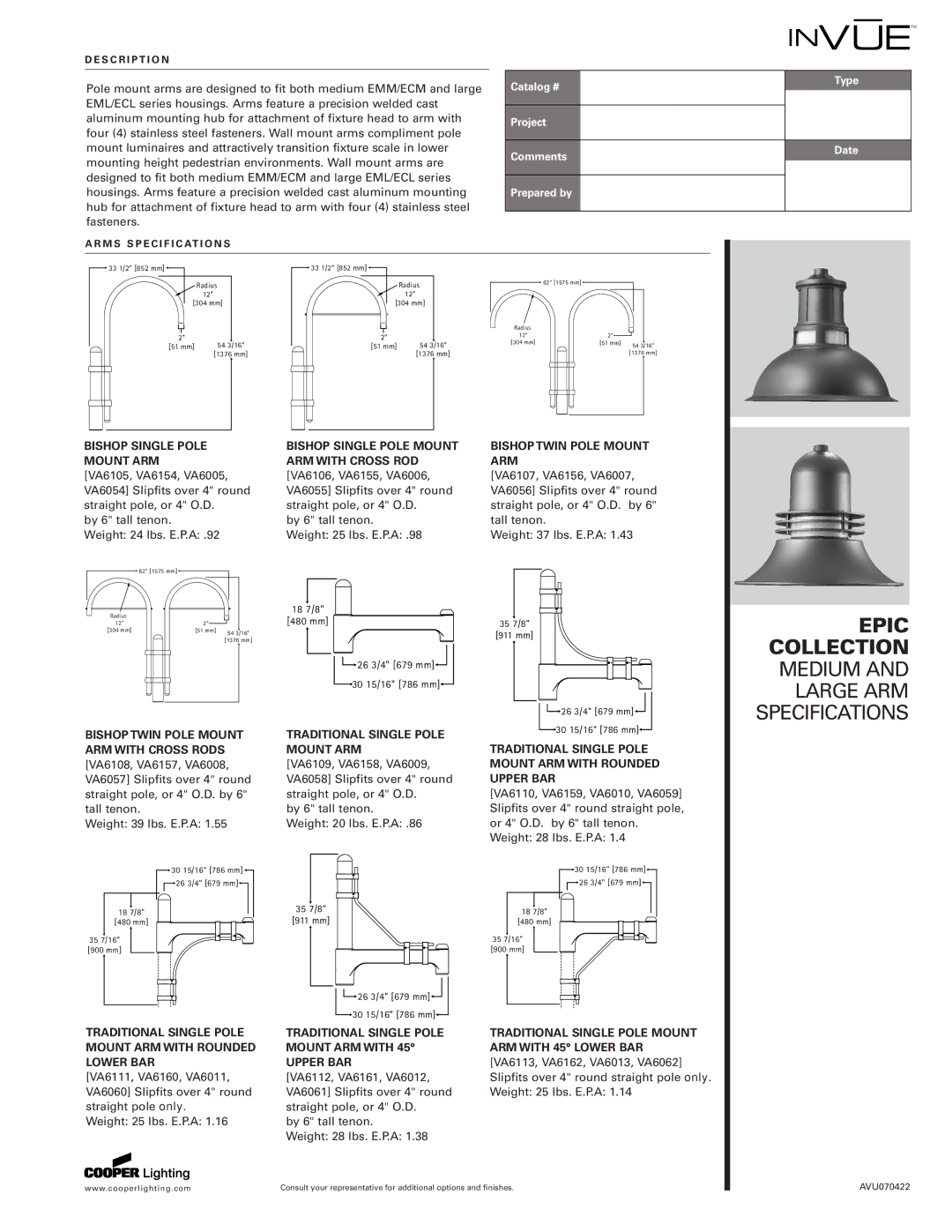

EPIC COLLECTION

TM

D E S C R I P T I O N

Pole mount arms are designed to fit both medium EMM/ECM and large EML/ECL series housings. Arms feature a precision welded cast aluminum mounting hub for attachment of fixture head to arm with four (4) stainless steel fasteners. Wall mount arms compliment pole mount luminaires and attractively transition fixture scale in lower mounting height pedestrian environments. Wall mount arms are designed to fit both medium EMM/ECM and large EML/ECL series housings. Arms feature a precision welded cast aluminum mounting hub for attachment of fixture head to arm with four (4) stainless steel fasteners.

Catalog #

Project

Comments

Prepared by

Type

Date

A R M S S P E C I F I C AT I O N S

33 1/2" [852 mm]



33 1/2" [852 mm]











Radius



Radius



62" [1575 mm]















12''



12''







[304 mm]

[304 mm]















Radius





2''



2''



12''

2''



[51 mm]

54 3/16''

[51 mm]

54 3/16''

[304 mm]

[51 mm]

54 3/16''



[1376 mm]



[1376 mm]





[1376 mm]

BISHOP SINGLE POLE

BISHOP SINGLE POLE MOUNT

BISHOP TWIN POLE MOUNT

MOUNT ARM

ARM WITH CROSS ROD

ARM

[VA6105, VA6154, VA6005,

[VA6106, VA6155, VA6006,

[VA6107, VA6156, VA6007,

VA6054] Slipfits over 4" round

VA6055] Slipfits over 4" round

VA6056] Slipfits over 4" round

straight pole, or 4" O.D.

straight pole, or 4" O.D.

straight pole, or 4" O.D. by 6"

by 6" tall tenon.

by 6" tall tenon.

tall tenon.

Weight: 24 lbs. E.P.A: .92

Weight: 25 lbs. E.P.A: .98

Weight: 37 lbs. E.P.A: 1.43





62" [1575 mm]

















































































Radius





18 7/8"









[480 mm]

12''

2''













[304 mm]

[51 mm]

54 3/16''













[1376 mm]

MEDIUM ANDLARGE ARM SPECIFICATIONS 26 3/4" [679 mm]Manual backgroundManual background

Manual background30 15/16" [786 mm]Manual background

357/8"

[911 mm]

Manual backgroundManual background26 3/4" [679 mm]Manual backgroundManual background

EPIC COLLECTION

MEDIUM AND

LARGE ARM SPECIFICATIONS

BISHOP TWIN POLE MOUNT ARM WITH CROSS RODS

[VA6108, VA6157, VA6008, VA6057] Slipfits over 4" round straight pole, or 4" O.D. by 6" tall tenon.

Weight: 39 lbs. E.P.A: 1.55

Manual background 30 15/16" [786 mm] Manual background

Manual backgroundManual background 26 3/4" [679 mm] Manual background

187/8"

[480 mm]

357/16" [900 mm]

TRADITIONAL SINGLE POLE MOUNT ARM WITH ROUNDED LOWER BAR

[VA6111, VA6160, VA6011,

VA6060] Slipfits over 4" round straight pole only.

Weight: 25 lbs. E.P.A: 1.16

TRADITIONAL SINGLE POLE MOUNT ARM

[VA6109, VA6158, VA6009, VA6058] Slipfits over 4" round straight pole, or 4" O.D.

by 6" tall tenon. Weight: 20 lbs. E.P.A: .86

357/8"

[911 mm]

Manual backgroundManual background26 3/4" [679 mm]Manual backgroundManual background

Manual background30 15/16" [786 mm]Manual background

TRADITIONAL SINGLE POLE MOUNT ARM WITH 45°

UPPER BAR

[VA6112, VA6161, VA6012, VA6061] Slipfits over 4" round straight pole, or 4" O.D.

by 6" tall tenon.

Weight: 28 lbs. E.P.A: 1.38

Manual background30 15/16" [786 mm]Manual background

TRADITIONAL SINGLE POLE MOUNT ARM WITH ROUNDED UPPER BAR

[VA6110, VA6159, VA6010, VA6059] Slipfits over 4" round straight pole, or 4" O.D. by 6" tall tenon.

Weight: 28 lbs. E.P.A: 1.4

Manual background30 15/16" [786 mm] Manual background

Manual backgroundManual background 26 3/4" [679 mm] Manual background

187/8"

[480 mm]

357/16" [900 mm]

TRADITIONAL SINGLE POLE MOUNT ARM WITH 45° LOWER BAR

[VA6113, VA6162, VA6013, VA6062] Slipfits over 4" round straight pole only.

Weight: 25 lbs. E.P.A: 1.14

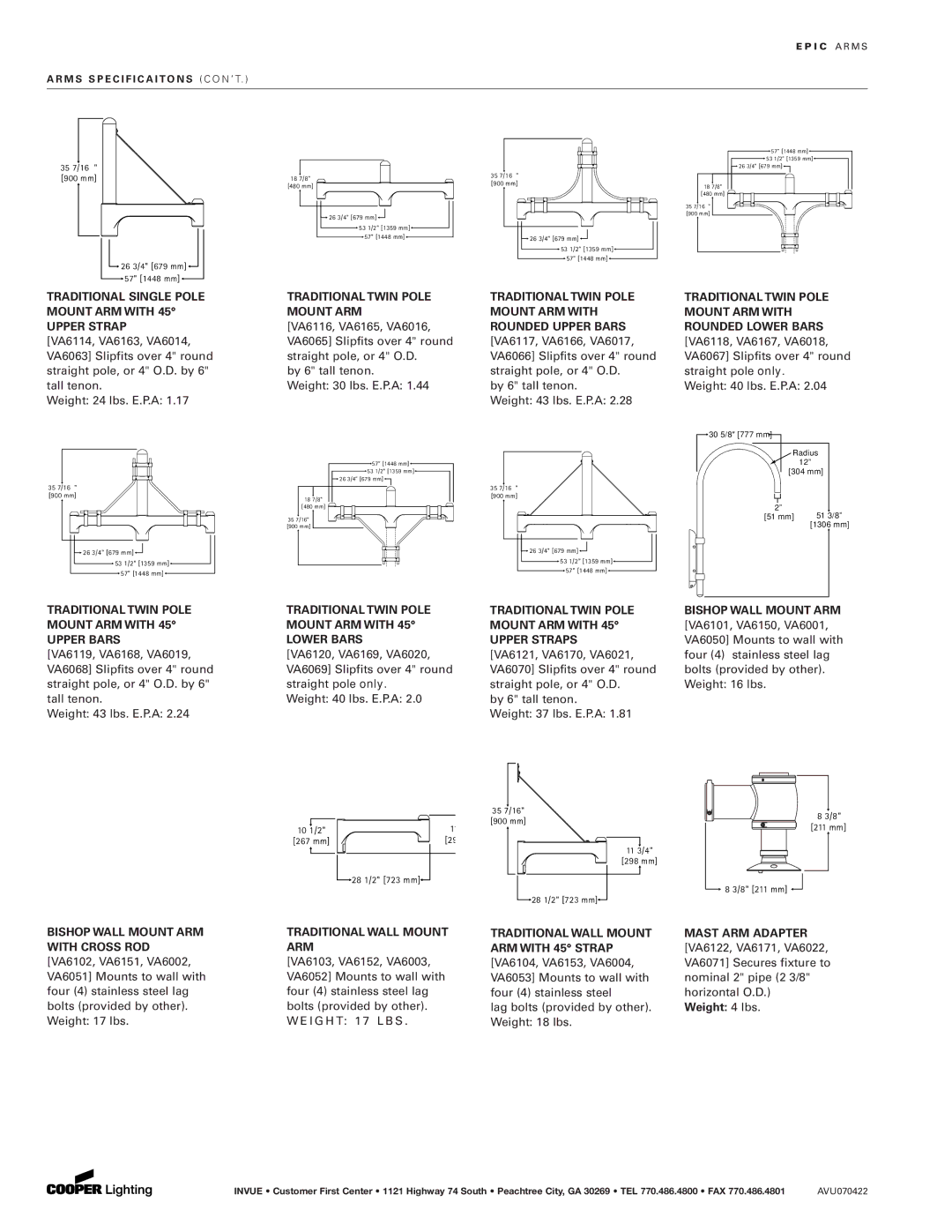

www.cooperlighting.com

Consult your representative for additional options and finishes.

AVU070422
