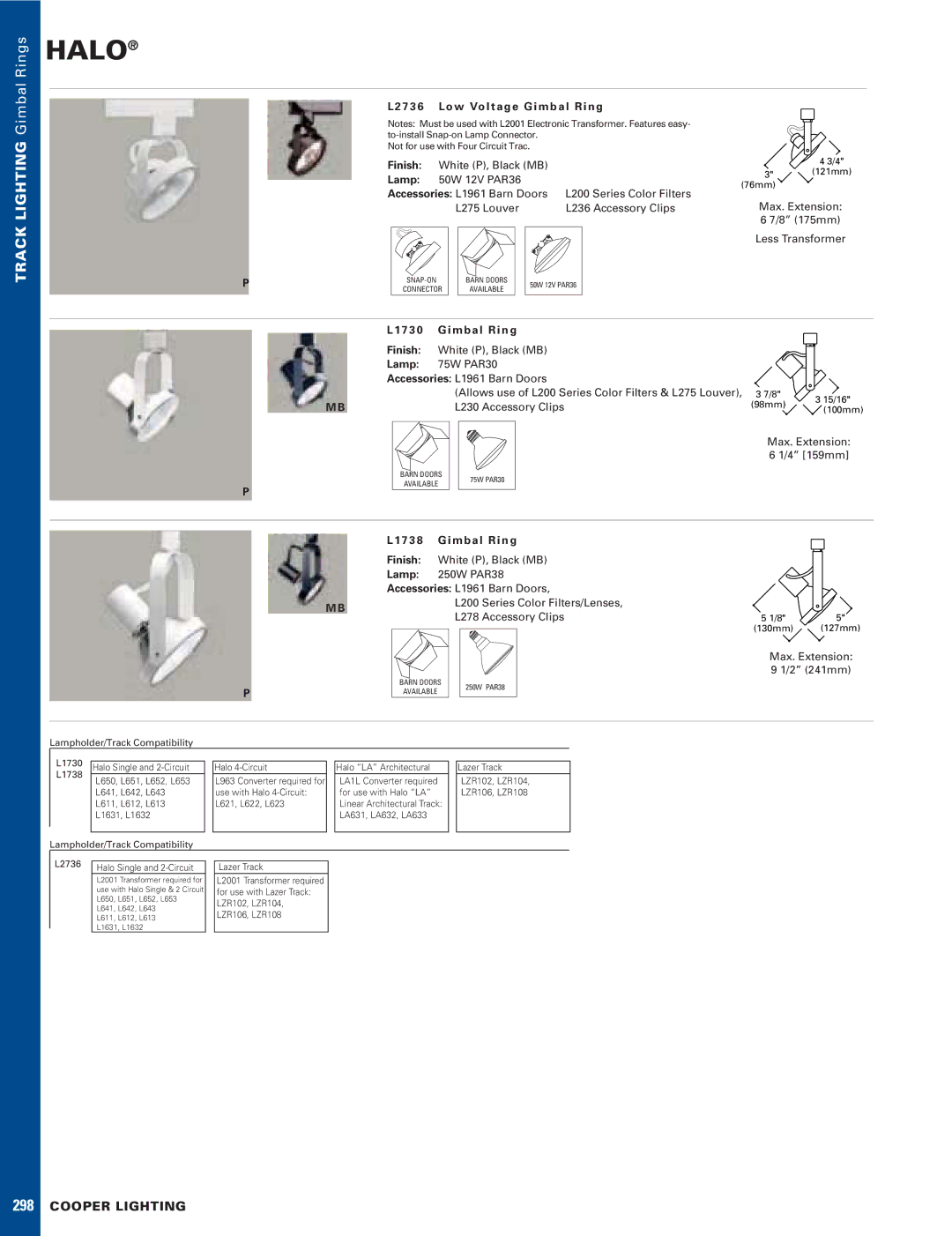

HALO®

TRACK LIGHTING Gimbal

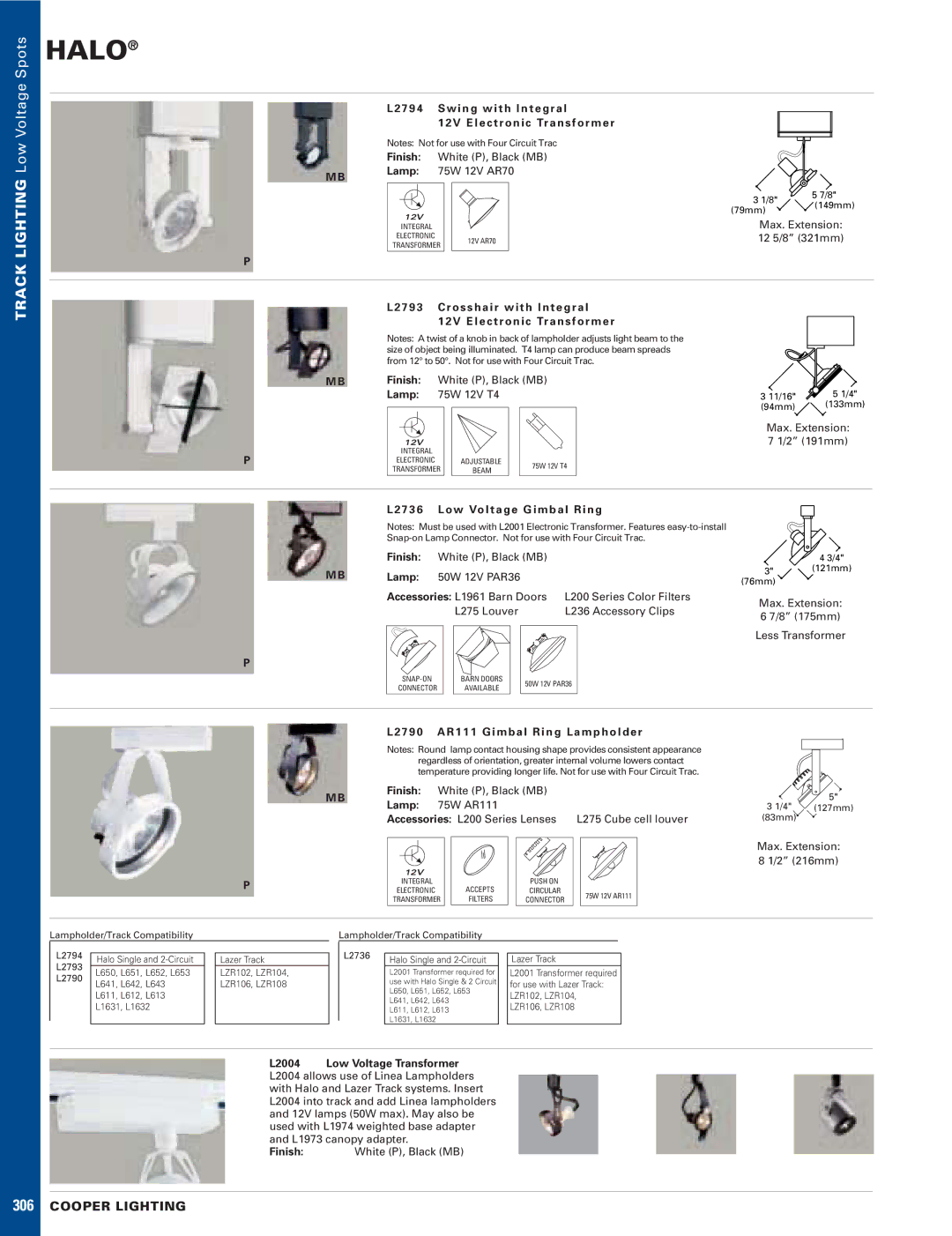

L 2 7 3 6 L o w Vo l t a g e G i m b a l R i n g

Notes: Must be used with L2001 Electronic Transformer. Features easy- to-install Snap-on Lamp Connector.

Not for use with Four Circuit Trac.

Finish:	White (P), Black (MB)
Lamp:	50W 12V PAR36
Accessories: L1961 Barn Doors		L200 Series Color Filters
	L275 Louver	L236 Accessory Clips

P	SNAP-ON	BARN DOORS	50W 12V PAR36
	CONNECTOR	AVAILABLE

	4 3/4"
3"	(121mm)

(76mm)

Max. Extension: 6 7/8” (175mm)

Less Transformer

M B

P

L 1 7 3 0	G i m b a l R i n g
Finish:	White (P), Black (MB)
Lamp:	75W PAR30
Accessories: L1961 Barn Doors
	(Allows use of L200 Series Color Filters & L275 Louver),	3 7/8"	3 15/16"
	L230 Accessory Clips	(98mm)
			(100mm)

	Max. Extension:
	6 1/4” [159mm]
BARN DOORS	75W PAR30
AVAILABLE

				L 1 7 3 8	G i m b a l R i n g
				Finish:	White (P), Black (MB)
				Lamp:	250W PAR38
				Accessories: L1961 Barn Doors,
			M B			L200 Series Color Filters/Lenses,
						L278 Accessory Clips		5 1/8"	5"
								(130mm)	(127mm)
								Max. Extension:
								9 1/2” (241mm)
				BARN DOORS			250W PAR38
		P		AVAILABLE
Lampholder/Track Compatibility
L1730
	Halo Single and 2-Circuit	Halo 4-Circuit		Halo “LA” Architectural			Lazer Track
L1738
	L650, L651, L652, L653	L963 Converter required for		LA1L Converter required			LZR102, LZR104,
	L641, L642, L643	use with Halo 4-Circuit:		for use with Halo “LA”			LZR106, LZR108
	L611, L612, L613	L621, L622, L623		Linear Architectural Track:
	L1631, L1632			LA631, LA632, LA633
Lampholder/Track Compatibility
L2736
	Halo Single and 2-Circuit	Lazer Track
	L2001 Transformer required for	L2001 Transformer required
	use with Halo Single & 2 Circuit	for use with Lazer Track:
	L650, L651, L652, L653	LZR102, LZR104,
	L641, L642, L643
		LZR106, LZR108
	L611, L612, L613
	L1631, L1632
