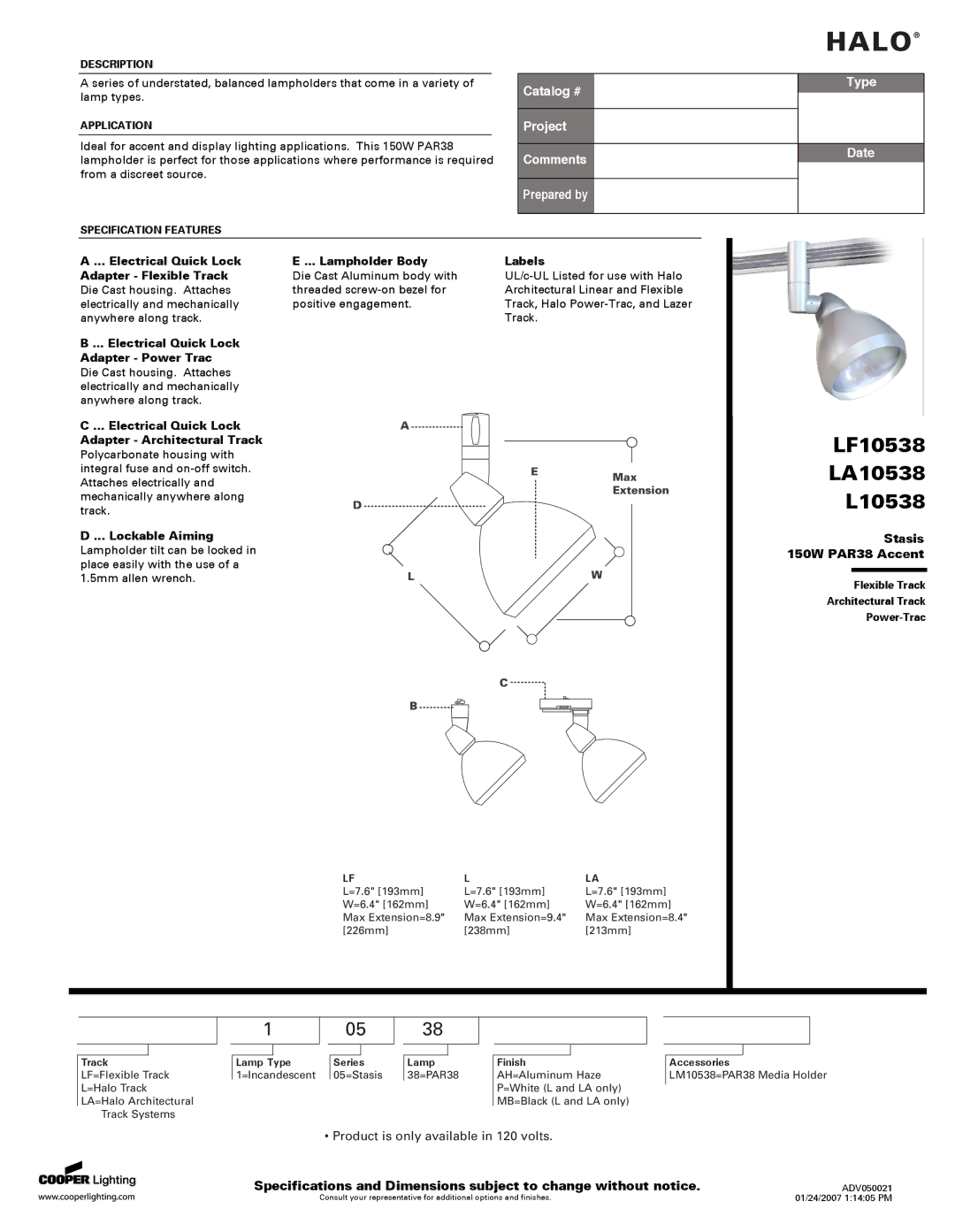

Cooper Lighting specifications Halo, LF10538 LA10538 L10538, Catalog #, Project Comments, Type

DESCRIPTION

A series of understated, balanced lampholders that come in a variety of lamp types.

APPLICATION

Ideal for accent and display lighting applications. This 150W PAR38 lampholder is perfect for those applications where performance is required from a discreet source.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

HALO®

TypeDate

A ... Electrical Quick Lock Adapter - Flexible Track

Die Cast housing. Attaches electrically and mechanically anywhere along track.

B ... Electrical Quick Lock Adapter - Power Trac

Die Cast housing. Attaches electrically and mechanically anywhere along track.

C ... Electrical Quick Lock Adapter - Architectural Track

Polycarbonate housing with integral fuse and on-off switch. Attaches electrically and mechanically anywhere along track.

D ... Lockable Aiming

Lampholder tilt can be locked in place easily with the use of a 1.5mm allen wrench.

E ... Lampholder Body	Labels
Die Cast Aluminum body with	UL/c-UL Listed for use with Halo
threaded screw-on bezel for	Architectural Linear and Flexible
positive engagement.	Track, Halo Power-Trac, and Lazer
	Track.

A

EMax

Extension

D

LW

C

B

LF10538

LA10538

L10538

Stasis 150W PAR38 Accent

Flexible Track

Architectural Track

Power-Trac

LF	L	LA
L=7.6" [193mm]	L=7.6" [193mm]	L=7.6" [193mm]
W=6.4" [162mm]	W=6.4" [162mm]	W=6.4" [162mm]
Max Extension=8.9"	Max Extension=9.4"	Max Extension=8.4"
[226mm]	[238mm]	[213mm]

Track

LF=Flexible Track

L=Halo Track

LA=Halo Architectural

Track Systems

1

Lamp Type 1=Incandescent

05 38

Series Lamp

05=Stasis 38=PAR38

Finish AH=Aluminum Haze P=White (L and LA only) MB=Black (L and LA only)

Accessories

LM10538=PAR38 Media Holder

• Product is only available in 120 volts.

Specifications and Dimensions subject to change without notice.	ADV050021
Consult your representative for additional options and finishes.	01/24/2007 1:14:05 PM
