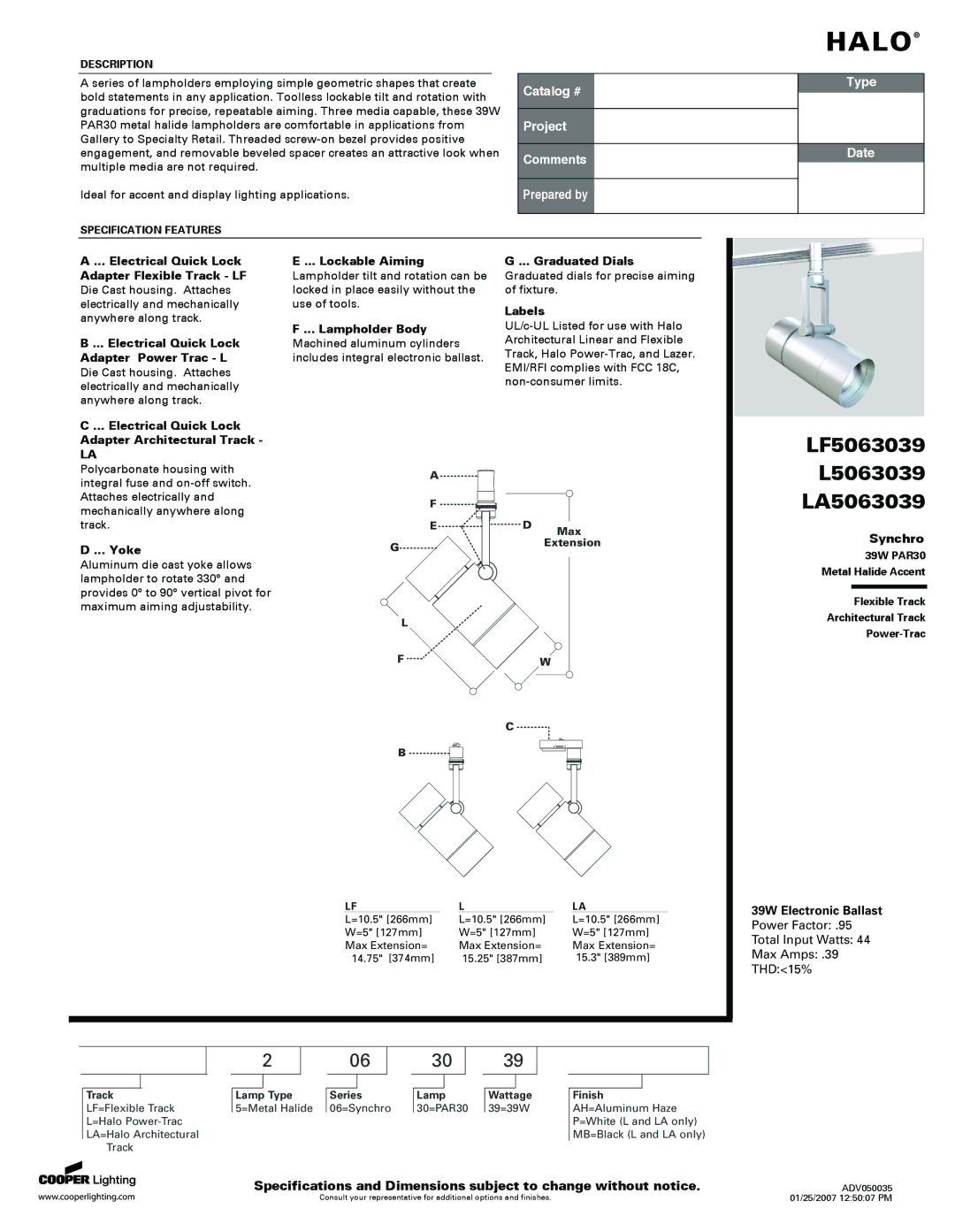

Catalog #
Project
Comments
Prepared by
Type
Date
SPECIFICATION FEATURES
01/25/2007 12:50:07 PM
Consult your representative for additional options and finishes.
ADV050035
DESCRIPTION
A series of lampholders employing simple geometric shapes that create
bold statements in any application. Toolless lockable tilt and rotation with
graduations for precise, repeatable aiming. Three media capable, these 39W
PAR30 metal halide lampholders are comfortable in applications from
Gallery to Specialty Retail. Threaded screw-on bezel provides positive
engagement, and removable beveled spacer creates an attractive look when
multiple media are not required.
Ideal for accent and display lighting applications.
A ... Electrical Quick Lock
Adapter Flexible Track - LF
Die Cast housing. Attaches
electrically and mechanically
anywhere along track.
B ... Electrical Quick Lock
Adapter Power Trac - L
Die Cast housing. Attaches
electrically and mechanically
anywhere along track.
C ... Electrical Quick Lock
Adapter Architectural Track -
LA
Polycarbonate housing with
integral fuse and on-off switch.
Attaches electrically and
mechanically anywhere along
track.
D ... Yoke
Aluminum die cast yoke allows
lampholder to rotate 330° and
provides 0° to 90° vertical pivot for
maximum aiming adjustability.
E ... Lockable Aiming
Lampholder tilt and rotation can be
locked in place easily without the
use of tools.
F ... Lampholder Body
Machined aluminum cylinders
includes integral electronic ballast.
G ... Graduated Dials
Graduated dials for precise aiming
of fixture.
Labels
UL/c-UL Listed for use with Halo
Architectural Linear and Flexible
Track, Halo Power-Trac, and Lazer.
EMI/RFI complies with FCC 18C,
non-consumer limits.

LF5063039

L5063039

LA5063039

Synchro
39W PAR30
Metal Halide Accent
Flexible Track
Architectural Track
Power-Trac
B
E Max
Extension
L
W
G
A
F
C
LF
L=10.5" [266mm]
W=5" [127mm]
Max Extension=
14.75"
L
L=10.5" [266mm]
W=5" [127mm]
Max Extension=
15.25" [387mm]
LA
L=10.5" [266mm]
W=5" [127mm]
Max Extension=
15.3" [389mm]
[374mm]
F
D
Track
LF=Flexible Track
L=Halo Power-Trac
LA=Halo Architectural
Track
Lamp Type
5=Metal Halide
Series
06=Synchro
Lamp
30=PAR30
Finish
AH=Aluminum Haze
P=White (L and LA only)
MB=Black (L and LA only)
2 06 30
Wattage
39=39W
39
39W Electronic BallastPower Factor: .95Total Input Watts: 44Max Amps: .39THD:<15%
HAL O®
