DESCRIPTION



Catalog #

Type

Miniature cylindrical recessed housing and round trim with smooth





regressed splay and 45º cut-off. Includes enclosure with integral electronic

Project



metal halide ballast and wiring compartment.





For new construction or remodel applications. Insulation must be kept 3”

Comments

Date





from all sides and at least 1” above the housing.

Prepared by









SPECIFICATION FEATURES







A....Housing







All aluminum construction with 18” of

D....Electrical





flexible conduit attached to a cylindrical

Electronic metal halide ballast housed





transformer/wiring enclosure. Swing

in a separate metal enclosure.





out mounting clips form pressure fit for

Enclosure includes a separated wiring





mounting in 1/2” - 3/4” drywall.

compartment and entry for primary





B....Trim:

leads.





3.5” o.d. round trim with smooth re-

E....Lamp





gressed splay and 45º cut-off. Finished

ES16 or CMHMR16 Metal Halide in





in white, black, industrial silver, stainless

20 watts. (not included). GX10 twist-lock





steel (painted), and custom colors.





lamp socket for firm, mechanical lamp



LYNX





C....System Protection:

connection. Can accept up to two (2)



Thermal protection inside housing.

optical accessories.





Vent holes in housing provide cooler

Ceiling Cut-Out: 3.19” dia.



LX3004MH

operation. All aluminum construction



provides overall reduced temperatures.





Miniature Round

8.90”

18.00”



Trim w/ Smooth



Flexible Conduit



Regressed Splay







2.00”





45º Cut-Off











C

Cylindrical Housing













Ballast/Wiring

D





Enclosure







A



E









ES16 Metal Halide 20 watts







CMHMR16 Metal Halide 20 watts



3.50” dia.



B







2.31” di

U.L. Listed. Suitable for use in combustible ceilings.

ORDERING INFORMATION

LX3004MH

__

20

__

Fixture LX3004MH Regressed Lynx Trim with Smooth Regressed Splay, 45º Cut-Off & Housing & Ballast Enclosure

Finish

WH = White

BK = Black

S = Industrial Silver

SS= Stainless Steel (painted) PM = Primer

Lamp/Ballast Wattage

20 = 20 watts

Voltage

120 = 120 volts

277 = 277 volts

Specifications and Dimensions subject to change without notice.

rev. 011007

www.cooperlighting.com

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031



Page 1
Image 1

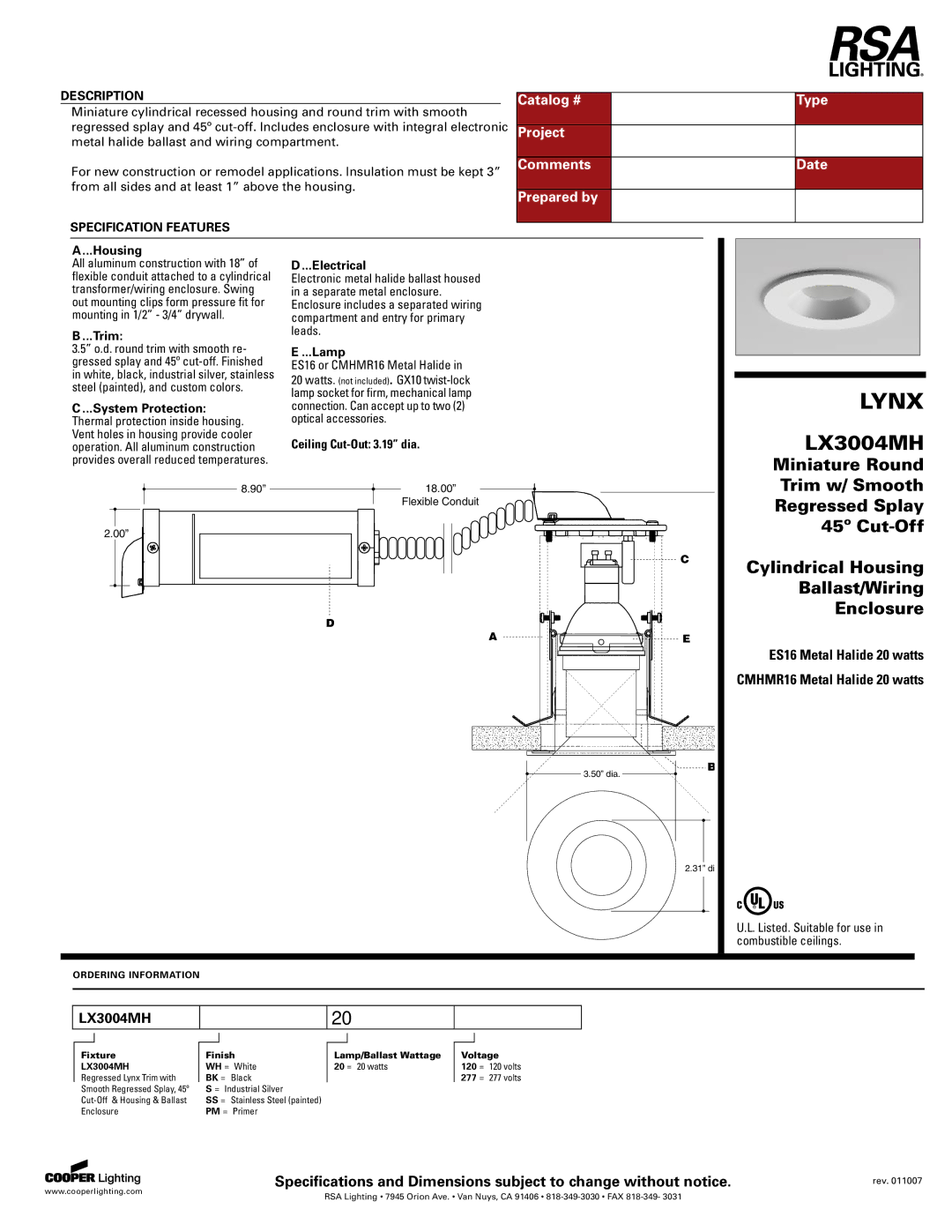

Cooper Lighting LX3004MH specifications Catalog # Type, Project, Comments Date, Prepared by
