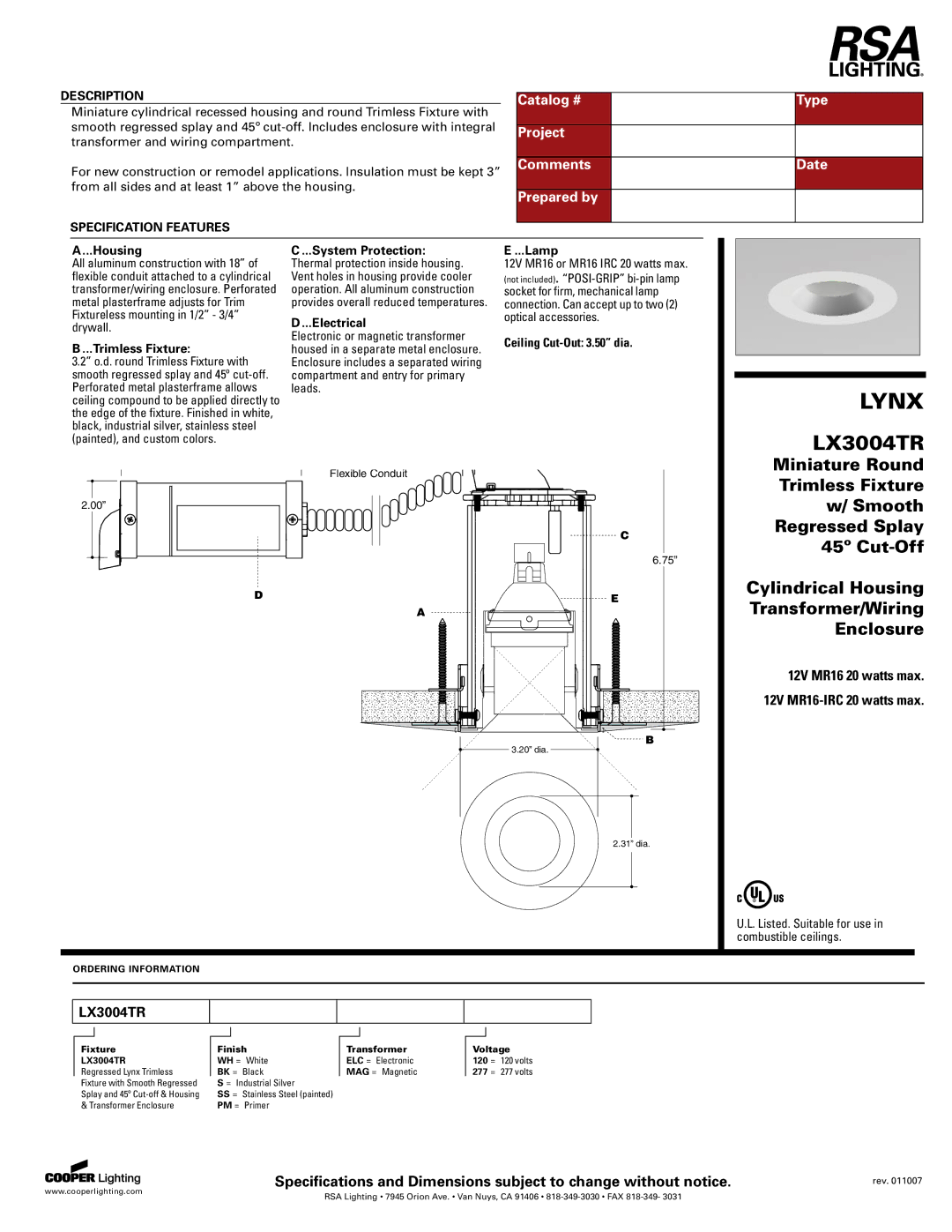

Cooper Lighting LX3004TR specifications Lynx, Miniature Round Trimless Fixture w/ Smooth

DESCRIPTION

Miniature cylindrical recessed housing and round Trimless Fixture with smooth regressed splay and 45º cut-off. Includes enclosure with integral transformer and wiring compartment.

For new construction or remodel applications. Insulation must be kept 3” from all sides and at least 1” above the housing.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

Type

Date

A....Housing

All aluminum construction with 18” of flexible conduit attached to a cylindrical transformer/wiring enclosure. Perforated metal plasterframe adjusts for Trim Fixtureless mounting in 1/2” - 3/4” drywall.

B....Trimless Fixture:

3.2” o.d. round Trimless Fixture with smooth regressed splay and 45º cut-off. Perforated metal plasterframe allows ceiling compound to be applied directly to the edge of the fixture. Finished in white, black, industrial silver, stainless steel (painted), and custom colors.

C....System Protection:

Thermal protection inside housing. Vent holes in housing provide cooler operation. All aluminum construction provides overall reduced temperatures.

D....Electrical

Electronic or magnetic transformer housed in a separate metal enclosure. Enclosure includes a separated wiring compartment and entry for primary leads.

E....Lamp

12V MR16 or MR16 IRC 20 watts max. (not included). “POSI-GRIP” bi-pin lamp socket for firm, mechanical lamp connection. Can accept up to two (2) optical accessories.

Ceiling Cut-Out: 3.50” dia.

LYNX

LX3004TR

2.00”

D

Flexible Conduit

C

6.75”

E

A

B

3.20” dia.

Miniature Round

Trimless Fixture

w/ Smooth

Regressed Splay

45º Cut-Off

Cylindrical Housing

Transformer/Wiring

Enclosure

12V MR16 20 watts max.

12V MR16-IRC 20 watts max.

2.31” dia.

U.L. Listed. Suitable for use in combustible ceilings.

ORDERING INFORMATION

LX3004TR

__

__

__

Fixture

LX3004TR

Regressed Lynx Trimless Fixture with Smooth Regressed Splay and 45º Cut-off & Housing & Transformer Enclosure

Finish

WH = White

BK = Black

S = Industrial Silver

SS= Stainless Steel (painted) PM = Primer

Transformer

ELC = Electronic MAG = Magnetic

Voltage

120 = 120 volts

277 = 277 volts

Specifications and Dimensions subject to change without notice. rev. 011007

www.cooperlighting.com RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
