O P T I O N A L P E N D A N T M O U N T

D E C O R AT I V E

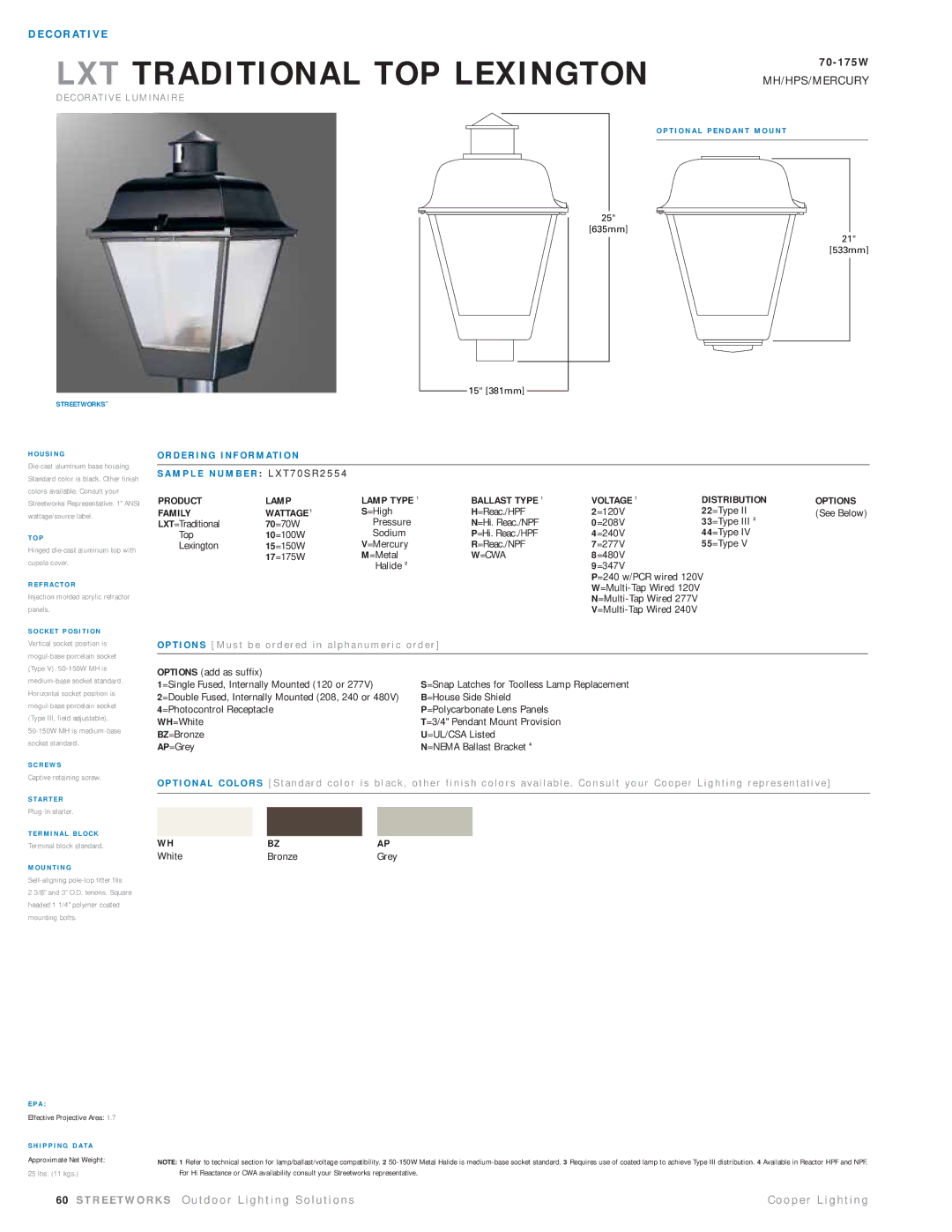

LXT TRADITIONAL TOP LEXINGTON

70-175W

MH/HPS/MERCURY

D E C O R AT I V E L U M I N A I R E

25"

[635mm]

15" [381mm]

21"

[533mm]

STREETWORKS™

H O U S I N G

Die-cast aluminum base housing. Standard color is black. Other finish colors available. Consult your Streetworks Representative. 1" ANSI wattage/source label.

T O P

Hinged die-cast aluminum top with

cupola cover.

R E F R A C T O R

Injection molded acrylic refractor panels.

S O C K E T P O S I T I O N

Vertical socket position is mogul-base porcelain socket (Type V). 50-150W MH is medium-base socket standard. Horizontal socket position is mogul-base porcelain socket (Type III, field adjustable).

50-150W MH is medium-base socket standard.

S C R E W S

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : L X T 7 0 S R 2 5 5 4

PRODUCT

LAMP

LAMP TYPE 1

BALLAST TYPE 1

VOLTAGE 1

FAMILY

WATTAGE 1

S=High

H=Reac./HPF

2=120V

LXT=Traditional

70=70W

Pressure

N=Hi. Reac./NPF

0=208V

Top

10=100W

Sodium

P=Hi. Reac./HPF

4=240V

Lexington

15=150W

V=Mercury

R=Reac./NPF

7=277V



17=175W

M=Metal

W=CWA

8=480V





Halide 2



9=347V









P=240 w/PCR wired 120V









W=Multi-Tap Wired 120V









N=Multi-Tap Wired 277V









V=Multi-Tap Wired 240V

O P T I O N S [ M u s t b e o r d e r e d i n a l p h a n u m e r i c o r d e r ]



OPTIONS (add as suffix)









1=Single Fused, Internally Mounted (120 or 277V)

S=Snap Latches for Toolless Lamp Replacement

2=Double Fused, Internally Mounted (208, 240 or 480V)

B=House Side Shield



4=Photocontrol Receptacle



P=Polycarbonate Lens Panels



WH=White





T=3/4" Pendant Mount Provision



BZ=Bronze





U=UL/CSA Listed



AP=Grey





N=NEMA Ballast Bracket 4



OPTIONS

(See Below)

Captive retaining screw.

S TA RT E R

Plug-in starter.

T E R M I N A L B L O C K

Terminal block standard.

M O U N T I N G

Self-aligning pole-top fitter fits

2 3/8" and 3" O.D. tenons. Square headed 1 1/4" polymer coated mounting bolts.

O P T I O N A L C O L O R S [ S t a n d a r d c o l o r i s b l a c k , o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]

WH

BZ

AP

White

Bronze

Grey

E PA :

Effective Projective Area: 1.7

S H I P P I N G D ATA



Approximate Net Weight:

NOTE: 1 Refer to technical section for lamp/ballast/voltage compatibility. 2 50-150W Metal Halide is medium-base socket standard. 3 Requires use of coated lamp to achieve Type III distribution. 4 Available in Reactor HPF and NPF.

25 lbs. (11 kgs.)

For Hi Reactance or CWA availability consult your Streetworks representative.

60 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s

C o o p e r L i g h t i n g
