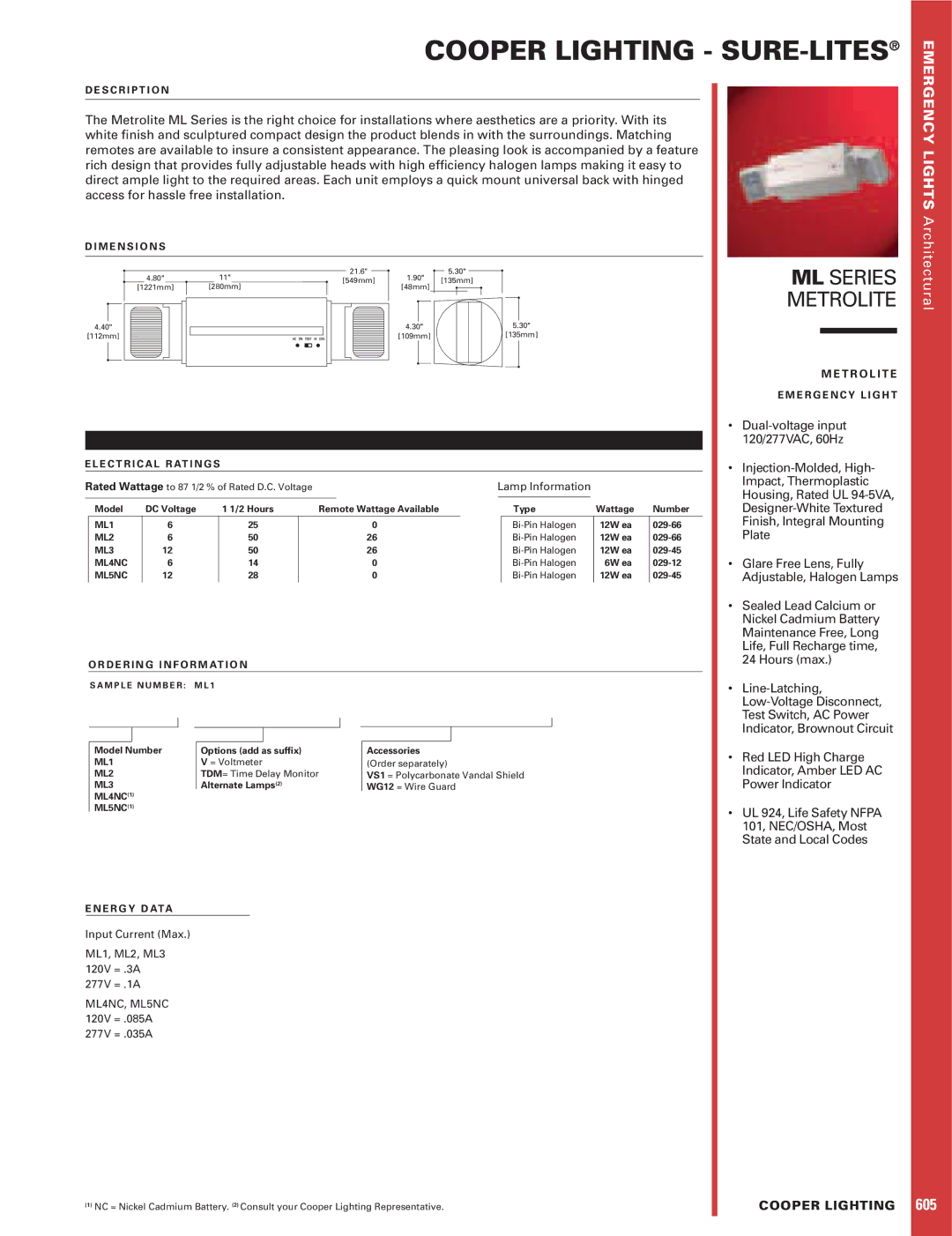

COOPER LIGHTING - SURE-LITES®

D E S C R I P T I O N

The Metrolite ML Series is the right choice for installations where aesthetics are a priority. With its white finish and sculptured compact design the product blends in with the surroundings. Matching remotes are available to insure a consistent appearance. The pleasing look is accompanied by a feature rich design that provides fully adjustable heads with high efficiency halogen lamps making it easy to direct ample light to the required areas. Each unit employs a quick mount universal back with hinged access for hassle free installation.

D I M E N S I O N S

4.80"

11"

21.6"

1.90"

5.30"

[549mm]

[135mm]

[1221mm]

[280mm]

[48mm]





4.40"





4.30"

5.30"

[112mm]





[109mm]

[135mm]

E L E C T R I C A L R AT I N G S

Rated Wattage to 87 1/2 % of Rated D.C. Voltage





Lamp Information

































Model

DC Voltage

1 1/2 Hours

Remote Wattage Available





Type

Wattage

Number



ML1

6

25



0





Bi-Pin Halogen

12W ea

029-66



ML2

6

50



26





Bi-Pin Halogen

12W ea

029-66



ML3

12

50



26





Bi-Pin Halogen

12W ea

029-45



ML4NC

6

14



0





Bi-Pin Halogen

6W ea

029-12



ML5NC

12

28



0





Bi-Pin Halogen

12W ea

029-45

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : M L 1









































Model Number



Options (add as suffix)

Accessories

ML1



V = Voltmeter

(Order separately)

ML2



TDM= Time Delay Monitor

VS1 = Polycarbonate Vandal Shield

ML3



Alternate Lamps(2)

WG12 = Wire Guard



ML4NC(1)













ML5NC(1)













E N E R G Y D ATA

Input Current (Max.)

ML1, ML2, ML3 120V = .3A 277V = .1A

ML4NC, ML5NC 120V = .085A 277V = .035A

ML SERIES

METROLITE

M E T R O L I T E

E M E R G E N C Y L I G H T

Dual-voltage input 120/277VAC, 60Hz

Injection-Molded, High- Impact, Thermoplastic Housing, Rated UL 94-5VA, Designer-White Textured Finish, Integral Mounting Plate

Glare Free Lens, Fully Adjustable, Halogen Lamps

Sealed Lead Calcium or Nickel Cadmium Battery Maintenance Free, Long Life, Full Recharge time, 24 Hours (max.)

Line-Latching, Low-Voltage Disconnect, Test Switch, AC Power Indicator, Brownout Circuit

Red LED High Charge Indicator, Amber LED AC Power Indicator

UL 924, Life Safety NFPA 101, NEC/OSHA, Most State and Local Codes

EMERGENCY LIGHTS Architectural

(1) NC = Nickel Cadmium Battery. (2) Consult your Cooper Lighting Representative.

COOPER LIGHTING

605

Page 1
