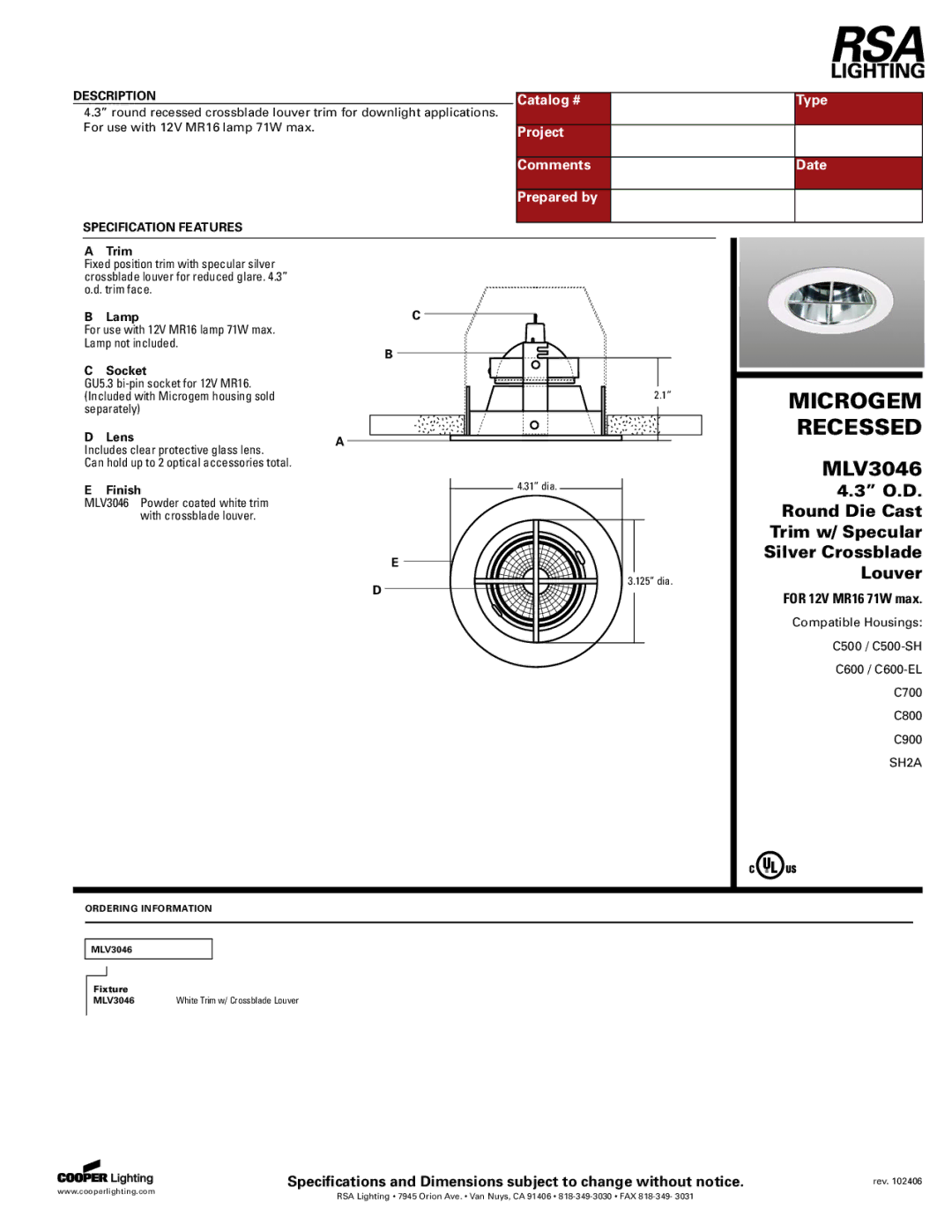

DESCRIPTION | Catalog # |
| Type |
4.3” round recessed crossblade louver trim for downlight applications. |
|
| |
For use with 12V MR16 lamp 71W max. | Project |
|
|
| Comments |
| Date |
| Prepared by |
|
|
SPECIFICATION FEATURES |
|
|
|
A Trim |
|
|
|
Fixed position trim with specular silver |
|
|
|
crossblade louver for reduced glare. 4.3” |
|
|
|
o.d. trim face. |
|
|
|
B Lamp | C |
|
|
For use with 12V MR16 lamp 71W max. |
|
|
|
Lamp not included. | B |
|
|
|
|
| |
C Socket |
|
|
|
GU5.3 |
| 2.1” | MICROGEM |
separately) |
| ||
(Included with Microgem housing sold |
|
| |
D Lens | A |
| RECESSED |
Includes clear protective glass lens. |
|
| |
|
|
| |
Can hold up to 2 optical accessories total. |
|
| MLV3046 |
| 4.31” dia. |
| |
E Finish |
| 4.3” O.D. | |
|
| ||
MLV3046 Powder coated white trim |
|
| Round Die Cast |
with crossblade louver. |
|
| |
|
|
| Trim w/ Specular |
| E |
| Silver Crossblade |
|
| Louver | |
| D | 3.125” dia. | |
|
| ||
|
| FOR 12V MR16 71W max. | |
|
|
| |
|
|
| Compatible Housings: |
|
|
| C500 / |
|
|
| C600 / |
|
|
| C700 |
|
|
| C800 |
|
|
| C900 |
|
|
| SH2A |
ORDERING INFORMATION
MLV3046
Fixture |
|
MLV3046 | White Trim w/ Crossblade Louver |
Specifications and Dimensions subject to change without notice. | rev. 102406 |
www.cooperlighting.com | RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • |
|
