DESCRIPTION

Enclosed and gasketed, rugged construction and three especially selected shielding elements make this fixture ideally suited for use in various types of security areas. The housing is a welded completely, enclosed steel chamber. The door is heavy gauge extruded aluminum with mitered corners. The door has a continuous aluminum piano hinge and tamper proof fasteners. The door and shielding are completely gasketed for minimum maintenance. Fixtures are installed as individual or continuous runs.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

FAIL-SAFE®

Type

Date

Mounting

Ballast

Surface

Standard Class P, CBM/ETL ballast.

Lamps

Housing

By Others.

20 ga. cold rolled steel.

Shielding

IK12 lexan prismatic lens, 93 tempered glass lens, KSH25 acrylic prismatic lens.

Finish

Baked on low gloss white powder coated polyester-epoxy.

MSM

4 1/4" [108mm]

Medical Surface Mount

12" [305mm], 24" [610mm]

ORDERING INFORMATION

LNL= LED Night Light (50,000 hrs.) provided by Cooper

S T A N D A R D L U M I N A I R E S E C T I O N

12" [305mm] x 48" [1219mm]24" [610mm] x 24" [610mm]24" [610mm] x 48" [1219mm]

Specifications and Dimensions subject to change without notice.

ADC041681

Consult your representative for additional options and finishes.

04/15/2007 12:24:03 PM

Page 1

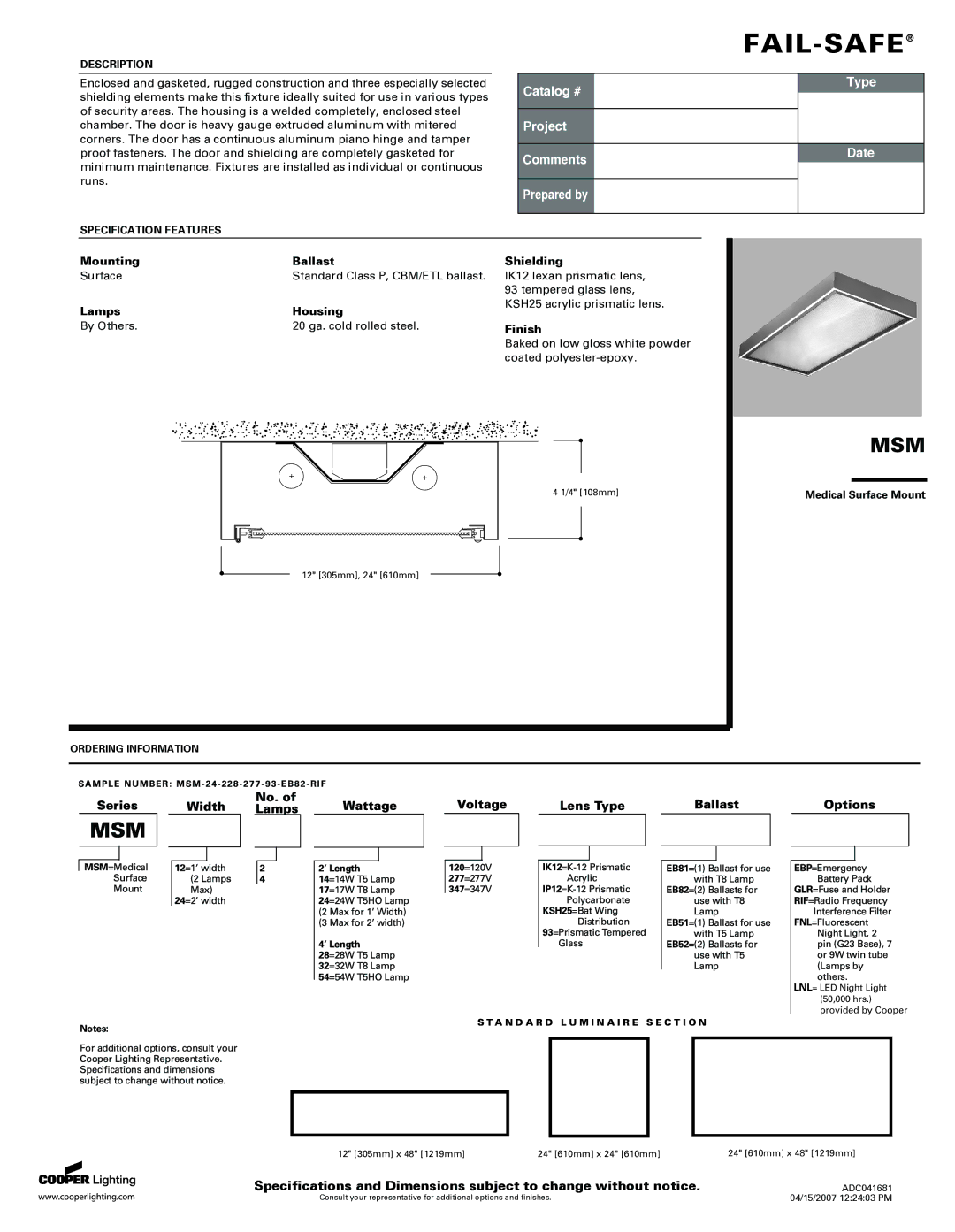

Image 1
Cooper Lighting MSM specifications Description, Specification Features, Ordering Information

MSM specifications

Cooper Lighting's MSM series offers a comprehensive lighting solution designed for various applications in commercial and industrial settings. Known for its durability and efficiency, the MSM series is an excellent choice for environments such as warehouses, manufacturing facilities, and retail spaces. One of its standout features is its robust construction, which makes it capable of withstanding harsh conditions. The lights are typically constructed with high-quality materials, ensuring longevity and minimal maintenance needs.

A significant technological aspect of the MSM series is its use of advanced LED technology. This not only contributes to energy efficiency but also provides brighter illumination compared to traditional lighting options. The LED modules used in Cooper Lighting’s MSM series are designed to last longer, which translates to reduced replacement costs over time. The series also incorporates intelligent lighting controls that can adapt to various operational needs, optimizing energy consumption while maintaining the desired illumination levels.

Another key characteristic of the MSM series is its versatility. The fixtures are available in a variety of configurations, including different lumen outputs and beam angles. This adaptability allows for customized lighting solutions based on specific needs within a space. Whether the requirement is for high bay or low bay lighting, the MSM series can be tailored to ensure optimal performance.

In addition, the MSM series includes features such as dimming capabilities, allowing users to further enhance energy savings and extend the lifespan of the lighting fixtures. Moreover, the fixtures are designed with thermal management systems to dissipate heat efficiently, enhancing performance and reliability during prolonged use.

Cooper Lighting's MSM series is also recognized for its ease of installation and maintenance. The lightweight design coupled with user-friendly mounting options facilitates quick setup and adjustments. Furthermore, many models come equipped with integrated sensors, enabling automatic adjustments based on occupancy and daylight availability.

Overall, the MSM series from Cooper Lighting embodies a blend of durability, efficiency, and advanced technology, making it a reliable choice for various lighting applications. Its commitment to performance and flexibility ensures that users can achieve optimal illumination while addressing energy efficiency and operational needs.
