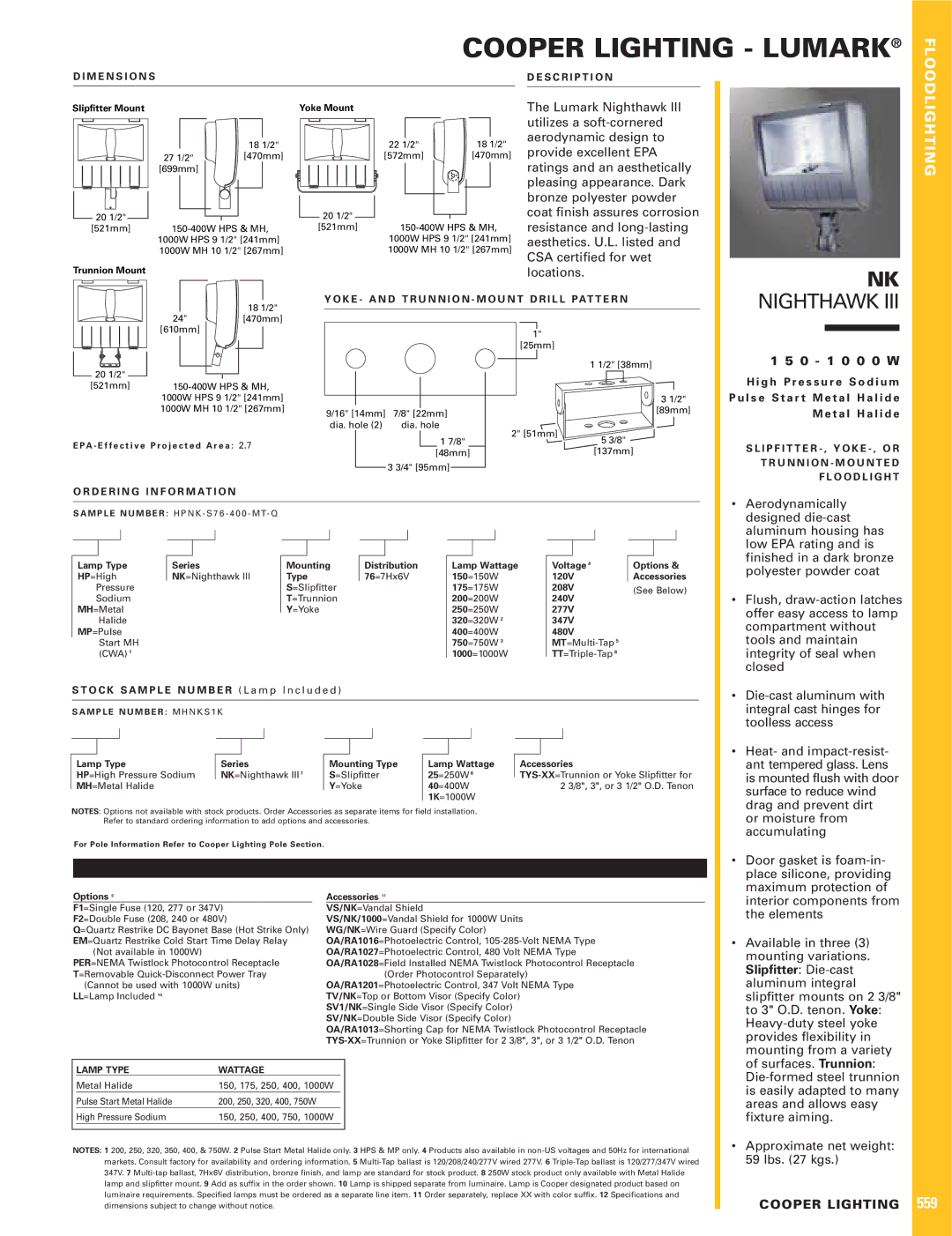

Cooper Lighting Nighthawk III dimensions M E N S I O N Sd E S C R I P T I O N

COOPER LIGHTING - LUMARK®

D I M E N S I O N SD E S C R I P T I O N

Slipfitter Mount
		18 1/2"
	27 1/2"	[470mm]
	[699mm]
20 1/2"
[521mm]	150-400W HPS & MH,
	1000W HPS 9 1/2" [241mm]
	1000W MH 10 1/2" [267mm]
Trunnion Mount

Yoke Mount
	22 1/2"	18 1/2"
	[572mm]	[470mm]
20 1/2"
[521mm]	150-400W HPS & MH,
	1000W HPS 9 1/2" [241mm]
	1000W MH 10 1/2" [267mm]

The Lumark Nighthawk III utilizes a soft-cornered aerodynamic design to provide excellent EPA ratings and an aesthetically pleasing appearance. Dark bronze polyester powder coat finish assures corrosion resistance and long-lasting aesthetics. U.L. listed and CSA certified for wet

locations.

NK

	24"	18 1/2"
		[470mm]
	[610mm]
20 1/2"
[521mm]	150-400W HPS & MH,

Y O K E - A N D T R U N N I O N - M O U N T D R I L L PAT T E R N

1"

[25mm]

1 1/2" [38mm]

NIGHTHAWK III

1 5 0 - 1 0 0 0 W

H i g h P r e s s u r e S o d i u m

1000W HPS 9 1/2" [241mm]

1000W MH 10 1/2" [267mm]

E PA - E f f e c t i v e P r o j e c t e d A r e a : 2.7

9/16"	[14mm]	7/8" [22mm]
dia.	hole (2)	dia. hole
			1 7/8"

2" [51mm]

3 1/2"

[89mm]

5 3/8"

P u l s e S t a r t M e t a l H a l i d e M e t a l H a l i d e

[48mm]

3 3/4" [95mm]

[137mm]

S L I P F I T T E R - , Y O K E - , O R T R U N N I O N - M O U N T E D F L O O D L I G H T

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : H P N K - S 7 6 - 4 0 0 - M T- Q

Lamp Type	Series	Mounting	Distribution	Lamp Wattage	Voltage 4	Options &
HP=High	NK=Nighthawk III	Type	76=7Hx6V	150=150W	120V	Accessories
Pressure		S=Slipfitter		175=175W	208V	(See Below)
Sodium		T=Trunnion		200=200W	240V
MH=Metal		Y=Yoke		250=250W	277V
Halide				320=320W 2	347V
MP=Pulse				400=400W	480V
Start MH				750=750W 3	MT=Multi-Tap 5
(CWA) 1				1000=1000W	TT=Triple-Tap 6

S T O C K S A M P L E N U M B E R ( L a m p I n c l u d e d )

S A M P L E N U M B E R : M H N K S 1 K

Lamp Type	Series	Mounting Type	Lamp Wattage	Accessories
HP=High Pressure Sodium	NK=Nighthawk III 7	S=Slipfitter	25=250W 8	TYS-XX=Trunnion or Yoke Slipfitter for
MH=Metal Halide		Y=Yoke	40=400W	2 3/8", 3", or 3 1/2" O.D. Tenon
			1K=1000W

NOTES: Options not available with stock products. Order Accessories as separate items for field installation.

Refer to standard ordering information to add options and accessories.

For Pole Information Refer to Cooper Lighting Pole Section.

Options 9		Accessories 11
F1=Single Fuse (120, 277 or 347V)		VS/NK=Vandal Shield
F2=Double Fuse (208, 240 or 480V)		VS/NK/1000=Vandal Shield for 1000W Units
Q=Quartz Restrike DC Bayonet Base (Hot Strike Only)		WG/NK=Wire Guard (Specify Color)
EM=Quartz Restrike Cold Start Time Delay Relay		OA/RA1016=Photoelectric Control, 105-285-Volt NEMA Type
(Not available in 1000W)		OA/RA1027=Photoelectric Control, 480 Volt NEMA Type
PER=NEMA Twistlock Photocontrol Receptacle		OA/RA1028=Field Installed NEMA Twistlock Photocontrol Receptacle
T=Removable Quick-Disconnect Power Tray		(Order Photocontrol Separately)
(Cannot be used with 1000W units)		OA/RA1201=Photoelectric Control, 347 Volt NEMA Type
LL=Lamp Included 10		TV/NK=Top or Bottom Visor (Specify Color)
		SV1/NK=Single Side Visor (Specify Color)
		SV/NK=Double Side Visor (Specify Color)
		OA/RA1013=Shorting Cap for NEMA Twistlock Photocontrol Receptacle
		TYS-XX=Trunnion or Yoke Slipfitter for 2 3/8", 3", or 3 1/2" O.D. Tenon
LAMP TYPE	WATTAGE
Metal Halide	150, 175, 250, 400, 1000W
Pulse Start Metal Halide	200, 250, 320, 400, 750W
High Pressure Sodium	150, 250, 400, 750, 1000W

NOTES: 1 200, 250, 320, 350, 400, & 750W. 2 Pulse Start Metal Halide only. 3 HPS & MP only. 4 Products also available in non-US voltages and 50Hz for international markets. Consult factory for availability and ordering information. 5 Multi-Tap ballast is 120/208/240/277V wired 277V. 6 Triple-Tap ballast is 120/277/347V wired 347V. 7 Multi-tap ballast, 7Hx6V distribution, bronze finish, and lamp are standard for stock product. 8 250W stock product only available with Metal Halide lamp and slipfitter mount. 9 Add as suffix in the order shown. 10 Lamp is shipped separate from luminaire. Lamp is Cooper designated product based on luminaire requirements. Specified lamps must be ordered as a separate line item. 11 Order separately, replace XX with color suffix. 12 Specifications and dimensions subject to change without notice.

•Aerodynamically designed die-cast aluminum housing has low EPA rating and is finished in a dark bronze polyester powder coat

•Flush, draw-action latches offer easy access to lamp compartment without tools and maintain integrity of seal when closed

•Die-cast aluminum with integral cast hinges for toolless access

•Heat- and impact-resist- ant tempered glass. Lens is mounted flush with door surface to reduce wind drag and prevent dirt

or moisture from accumulating

•Door gasket is foam-in- place silicone, providing maximum protection of interior components from the elements

•Available in three (3) mounting variations. Slipfitter: Die-cast aluminum integral slipfitter mounts on 2 3/8" to 3" O.D. tenon. Yoke: Heavy-duty steel yoke provides flexibility in mounting from a variety of surfaces. Trunnion: Die-formed steel trunnion is easily adapted to many areas and allows easy fixture aiming.

•Approximate net weight: 59 lbs. (27 kgs.)

COOPER LIGHTING

FLOODLIGHTING

559
