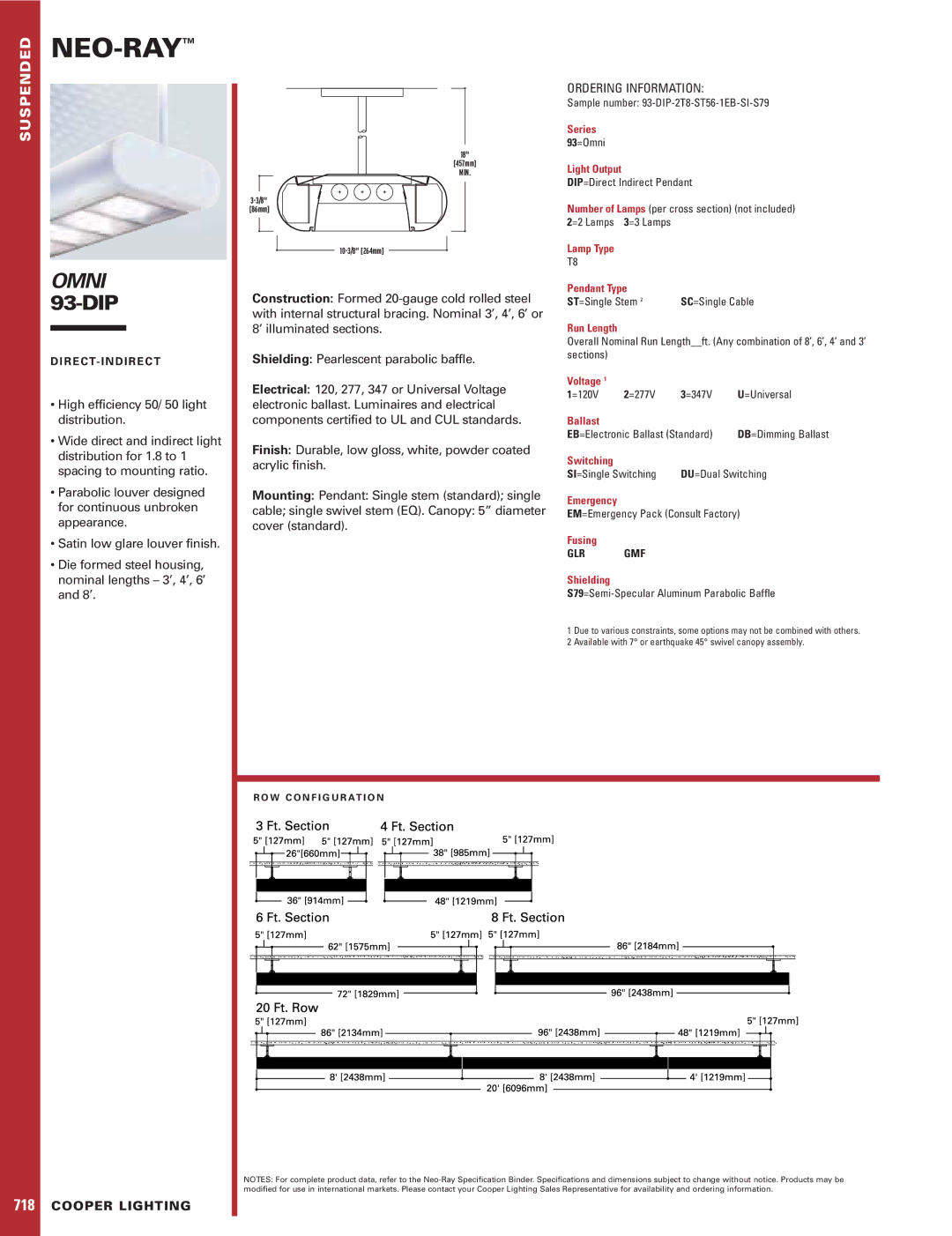

SUSPENDED

NEO-RAY



OMNI 93-DIP

D I R E C T- I N D I R E C T

High efficiency 50/ 50 light distribution.

Wide direct and indirect light distribution for 1.8 to 1 spacing to mounting ratio.

Parabolic louver designed for continuous unbroken appearance.

Satin low glare louver finish.

Die formed steel housing, nominal lengths – 3’, 4’, 6’ and 8’.

18"

[457mm]

MIN.

3-3/8" [86mm]

10-3/8" [264mm]

Construction: Formed 20-gauge cold rolled steel with internal structural bracing. Nominal 3’, 4’, 6’ or 8’ illuminated sections.

Shielding: Pearlescent parabolic baffle.

Electrical: 120, 277, 347 or Universal Voltage electronic ballast. Luminaires and electrical components certified to UL and CUL standards.

Finish: Durable, low gloss, white, powder coated acrylic finish.

Mounting: Pendant: Single stem (standard); single

cable; single swivel stem (EQ). Canopy: 5” diameter cover (standard).

ORDERING INFORMATION:

Sample number: 93-DIP-2T8-ST56-1EB-SI-S79

Series 93=Omni

Light Output

DIP=Direct Indirect Pendant

Number of Lamps (per cross section) (not included) 2=2 Lamps 3=3 Lamps

Lamp Type

T8

Pendant Type

SC=Single Cable

ST=Single Stem 2

Run Length

Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’ sections)

Voltage 1







1=120V

2=277V

3=347V

U=Universal

Ballast







EB=Electronic Ballast (Standard)

DB=Dimming Ballast

Switching







SI=Single Switching

DU=Dual Switching

Emergency

EM=Emergency Pack (Consult Factory)

Fusing

GLR GMF

Shielding

S79=Semi-Specular Aluminum Parabolic Baffle

1 Due to various constraints, some options may not be combined with others. 2 Available with 7° or earthquake 45° swivel canopy assembly.

718 COOPER LIGHTING

R O W C O N F I G U R AT I O N

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.

Page 1
Image 1
Cooper Lighting OMNI specifications Neo-Ray, Omni 93-DIP, Ordering Information, Glr Gmf

93-DIP, OMNI specifications

Cooper Lighting's OMNI,93-DIP is a cutting-edge solution in the realm of LED lighting, designed to meet the needs of various commercial and industrial spaces. This innovative fixture is engineered to provide high-quality illumination while promoting energy efficiency and longevity, making it an optimal choice for modern lighting applications.

One of the primary features of the OMNI,93-DIP is its exceptional flexibility. It is outfitted with a unique design that allows for easy installation in a variety of settings, from warehouses to retail environments. The fixture can be mounted in multiple orientations, whether it be surface-mounted or suspended, providing users with the ability to customize their lighting layout according to specific requirements.

The OMNI,93-DIP employs advanced LED technology that stands out for its impressive lumen output and excellent color rendering index (CRI). This ensures that spaces are illuminated brightly while maintaining an accurate representation of colors, which is particularly important in retail and display applications. The fixture is available in various color temperatures, giving users the option to select the ambiance that best fits their space.

Energy efficiency is at the forefront of the OMNI,93-DIP’s design. It consumes significantly less power compared to traditional fluorescent and incandescent lighting, ultimately reducing energy costs and promoting sustainability. It is also designed with a long operational life, often exceeding 50,000 hours, which minimizes the need for frequent replacements and maintenance.

Another notable characteristic of the OMNI,93-DIP is its integrated dimming capabilities. This feature allows users to adjust the light output according to the time of day or specific tasks, enhancing the overall functionality of the lighting system. Moreover, the fixture is compatible with various controls and sensors, facilitating a smart lighting approach that can adapt to occupancy and ambient light levels.

In conclusion, the Cooper Lighting OMNI,93-DIP is a versatile and high-performance LED lighting fixture that excels in energy efficiency, application flexibility, and superior illumination quality. With advanced technologies and a focus on user adaptability, this fixture stands out as a premier choice for anyone looking to upgrade their lighting systems in commercial or industrial environments.
