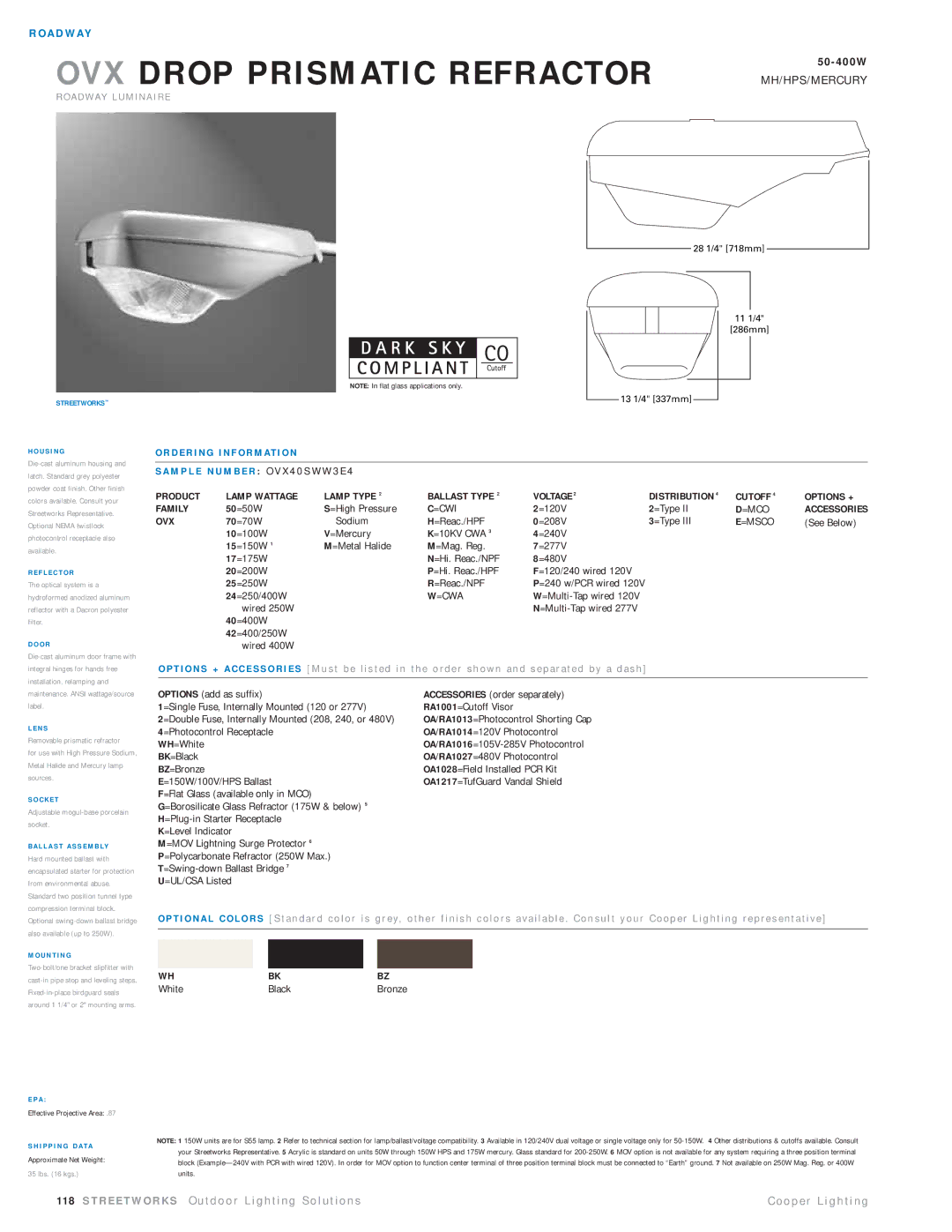

OVX DROP PRISMATIC REFRACTOR	50-400W
	MH/HPS/MERCURY
R O A D WAY L U M I N A I R E

28 1/4" [718mm]

11 1/4"

[286mm]

NOTE: In flat glass applications only.

STREETWORKS™

13 1/4" [337mm]

H O U S I N G

Die-cast aluminum housing and latch. Standard grey polyester powder coat finish. Other finish

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : O V X 4 0 S W W 3 E 4

colors available. Consult your Streetworks Representative. Optional NEMA twistlock photocontrol receptacle also available.

R E F L E C T O R

The optical system is a hydroformed anodized aluminum reflector with a Dacron polyester filter.

D O O R

PRODUCT	LAMP WATTAGE	LAMP TYPE 2	BALLAST TYPE 2	VOLTAGE 2	DISTRIBUTION 4
FAMILY	50=50W	S=High Pressure	C=CWI	2=120V	2=Type II
OVX	70=70W	Sodium	H=Reac./HPF	0=208V	3=Type III
	10=100W	V=Mercury	K=10KV CWA 3	4=240V
	15=150W 1	M=Metal Halide	M=Mag. Reg.	7=277V
	17=175W		N=Hi. Reac./NPF	8=480V
	20=200W		P=Hi. Reac./HPF	F=120/240 wired 120V
	25=250W		R=Reac./NPF	P=240 w/PCR wired 120V
	24=250/400W		W=CWA	W=Multi-Tap wired 120V
	wired 250W			N=Multi-Tap wired 277V
	40=400W
	42=400/250W
	wired 400W

CUTOFF 4	OPTIONS +
D=MCO	ACCESSORIES
E=MSCO	(See Below)

Die-cast aluminum door frame with integral hinges for hands free installation, relamping and maintenance. ANSI wattage/source label.

L E N S

Removable prismatic refractor

for use with High Pressure Sodium, Metal Halide and Mercury lamp sources.

S O C K E T

Adjustable mogul-base porcelain socket.

B A L L A S T A S S E M B LY

Hard mounted ballast with encapsulated starter for protection from environmental abuse. Standard two position tunnel type compression terminal block. Optional swing-down ballast bridge also available (up to 250W).

M O U N T I N G

Two-bolt/one bracket slipfitter with cast-in pipe stop and leveling steps. Fixed-in-place birdguard seals around 1 1/4" or 2" mounting arms.

E PA :

Effective Projective Area: .87

S H I P P I N G D ATA

Approximate Net Weight:

35 lbs. (16 kgs.)

O P T I O N S + A C C E S S O R I E S [ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]

OPTIONS (add as suffix)	ACCESSORIES (order separately)
1=Single Fuse, Internally Mounted (120 or 277V)	RA1001=Cutoff Visor
2=Double Fuse, Internally Mounted (208, 240, or 480V)	OA/RA1013=Photocontrol Shorting Cap
4=Photocontrol Receptacle	OA/RA1014=120V Photocontrol
WH=White	OA/RA1016=105V-285V Photocontrol
BK=Black	OA/RA1027=480V Photocontrol
BZ=Bronze	OA1028=Field Installed PCR Kit
E=150W/100V/HPS Ballast	OA1217=TufGuard Vandal Shield
F=Flat Glass (available only in MCO)
G=Borosilicate Glass Refractor (175W & below) 5
H=Plug-in Starter Receptacle
K=Level Indicator
M=MOV Lightning Surge Protector 6
P=Polycarbonate Refractor (250W Max.)
T=Swing-down Ballast Bridge 7
U=UL/CSA Listed

O P T I O N A L C O L O R S [ S t a n d a r d c o l o r i s g r e y, o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]

WH	BK	BZ
White	Black	Bronze

NOTE: 1 150W units are for S55 lamp. 2 Refer to technical section for lamp/ballast/voltage compatibility. 3 Available in 120/240V dual voltage or single voltage only for 50-150W. 4 Other distributions & cutoffs available. Consult your Streetworks Representative. 5 Acrylic is standard on units 50W through 150W HPS and 175W mercury. Glass standard for 200-250W. 6 MOV option is not available for any system requiring a three position terminal block (Example—240V with PCR with wired 120V). In order for MOV option to function center terminal of three position terminal block must be connected to “Earth” ground. 7 Not available on 250W Mag. Reg. or 400W units.
