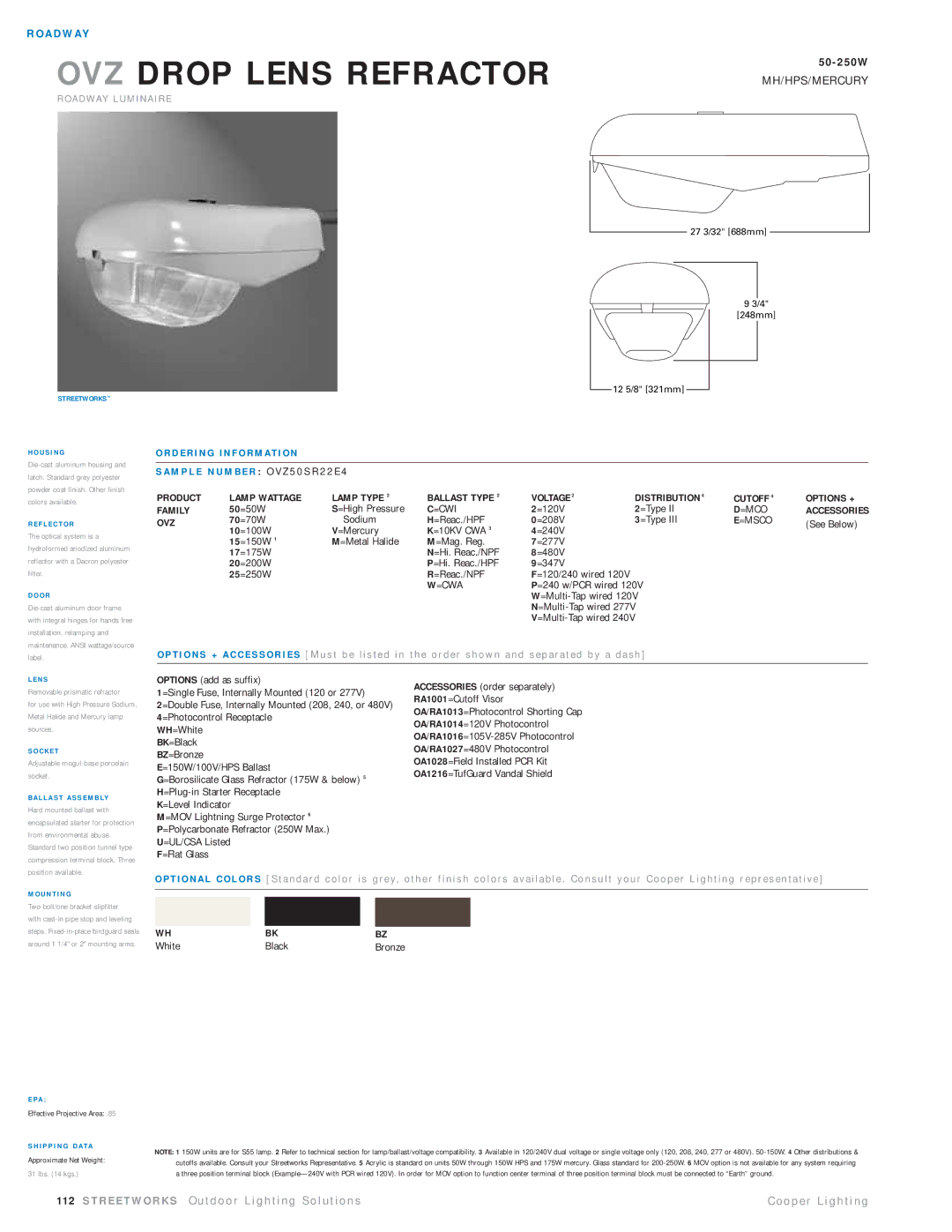

DISTRIBUTION 4 2=Type II
3=Type III

R O A D W AY



OVZ DROP LENS REFRACTOR

50-250W

MH/HPS/MERCURY

R O A D WAY L U M I N A I R E



27 3/32" [688mm]

9 3/4"

[248mm]

12 5/8" [321mm]

STREETWORKS

H O U S I N G

Die-cast aluminum housing and latch. Standard grey polyester powder coat finish. Other finish

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : O V Z 5 0 S R 2 2 E 4

colors available.

R E F L E C T O R

The optical system is a hydroformed anodized aluminum reflector with a Dacron polyester filter.

D O O R

Die-cast aluminum door frame with integral hinges for hands free installation, relamping and maintenance. ANSI wattage/source

PRODUCT

LAMP WATTAGE

LAMP TYPE 2

BALLAST TYPE 2

VOLTAGE 2

FAMILY

50=50W

S=High Pressure

C=CWI

2=120V

OVZ

70=70W

Sodium

H=Reac./HPF

0=208V



10=100W

V=Mercury

K=10KV CWA 3

4=240V



15=150W 1

M=Metal Halide

M=Mag. Reg.

7=277V



17=175W



N=Hi. Reac./NPF

8=480V



20=200W



P=Hi. Reac./HPF

9=347V



25=250W



R=Reac./NPF

F=120/240 wired 120V







W=CWA

P=240 w/PCR wired 120V









W=Multi-Tap wired 120V









N=Multi-Tap wired 277V









V=Multi-Tap wired 240V

CUTOFF 4

OPTIONS +

D=MCO

ACCESSORIES

E=MSCO

(See Below)



label.

O P T I O N S + A C C E S S O R I E S [ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]

L E N S

Removable prismatic refractor

for use with High Pressure Sodium, Metal Halide and Mercury lamp sources.

S O C K E T

Adjustable mogul-base porcelain socket.

B A L L A S T A S S E M B LY

Hard mounted ballast with encapsulated starter for protection from environmental abuse. Standard two position tunnel type compression terminal block. Three position available.

OPTIONS (add as suffix)

1=Single Fuse, Internally Mounted (120 or 277V)

2=Double Fuse, Internally Mounted (208, 240, or 480V)

4=Photocontrol Receptacle WH=White

BK=Black

BZ=Bronze

E=150W/100V/HPS Ballast

G=Borosilicate Glass Refractor (175W & below) 5 H=Plug-in Starter Receptacle

K=Level Indicator

M=MOV Lightning Surge Protector 6

P=Polycarbonate Refractor (250W Max.) U=UL/CSA Listed

F=Flat Glass

ACCESSORIES (order separately) RA1001=Cutoff Visor OA/RA1013=Photocontrol Shorting Cap OA/RA1014=120V Photocontrol OA/RA1016=105V-285V Photocontrol OA/RA1027=480V Photocontrol OA1028=Field Installed PCR Kit OA1216=TufGuard Vandal Shield

M O U N T I N G

Two-bolt/one bracket slipfitter with cast-in pipe stop and leveling steps. Fixed-in-place birdguard seals around 1 1/4" or 2" mounting arms.

E PA :

Effective Projective Area: .85

S H I P P I N G D ATA

Approximate Net Weight:

31 lbs. (14 kgs.)

O P T I O N A L C O L O R S [ S t a n d a r d c o l o r i s g r e y, o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]











WH

BK

BZ

White

Black

Bronze

NOTE: 1 150W units are for S55 lamp. 2 Refer to technical section for lamp/ballast/voltage compatibility. 3 Available in 120/240V dual voltage or single voltage only (120, 208, 240, 277 or 480V). 50-150W. 4 Other distributions & cutoffs available. Consult your Streetworks Representative. 5 Acrylic is standard on units 50W through 150W HPS and 175W mercury. Glass standard for 200-250W. 6 MOV option is not available for any system requiring a three position terminal block (Example—240V with PCR wired 120V). In order for MOV option to function center terminal of three position terminal block must be connected to “Earth” ground.

112 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s

C o o p e r L i g h t i n g

Page 1
