HPS SQUARE LENS DOWNLIGHT – HID 13"

PORTFOLIO

HOUSING

13"

13" Square Lens

Dimensions



Length



Width

Height



Cutout



Downlight HPS

Standard Housing

27-1/2"



14-3/4"

9-1/2"



14"



Add 2-5/8" width for 150W HPS ballast.











ED17

































ED23.5





















Square aperture downlight available with five different lens trims providing











a number of light distributions from a single horizontally mounted medium or









mogul base high pressure sodium lamp. Optional quartz standby lamp is









M5341T, 42T, 43T, 54T, 55T

factory installed to upper reflector. Magnetic ballast ordered separately









installs rapidly to ballast bridge with electrical quick connects.



























HOUSING

OPTIONS

BALLAST



ACCESSORIES









M5341T=Square 35W Mogul Base HPS

Q=Quartz Restrike System with

610=35W HPS 120/277V Magnetic

HB26=C Channel Bar Hanger, 26” Long, Pair



M5342T=Square 50W Mogul Base HPS

Time Delay, 100W DC Bayonet

620=50W HPS 120/277V Magnetic

HB50=C Channel Bar Hanger, 50” Long, Pair



M5343T=Square 70W Mogul Base HPS

Base Quartz Lamp (Included)

630=70W HPS 120/277V Magnetic

RMB22=Wood Joist Bar Hanger, 22” Long, Pair

M5354T=Square 100W Mogul Base HPS

X=DC Bayonet Lamp Socket only

638=70W HPS 120/347V Magnetic

FK=Field Installed Fuse Kit, Specify Amperage

M5355T=Square 150W Mogul Base HPS

for Quartz Standby Lamp

640=100W HPS 120/277V Magnetic















648=100W HPS 120/347V Magnetic

650=150W HPS 120/277V Magnetic

658=150W HPS 120/347V Magnetic

TRIM

Surface Fresnel Lens

TRIM



FINISH





150W Max



11300=Square Surface



P=White Trim, Clear Glass







Regressed Fresnel Lens











N











O













I













CA













W E T LO























12-11/16"













14-1/2"

Regressed Fresnel Lens

TRIM



FINISH





150W Max



11302=Square Regressed



P=White Trim, Black Baffle, Clear Glass







Fresnel Lens























N













O













I













CA













W E T LO























12-11/16"













14-1/2"

Prismatic Drop Lens

TRIM



FINISH





150W Max



11311=Square Prismatic



P=White Trim, Clear Glass







Drop Lens











N











O













I













CA













W E T LO























12-11/16"













14-1/2"

Regressed Prismatic

TRIM



FINISH





Drop Lens



11313=Square Regressed



P=White Trim, Black Baffle, Clear Glass







Prismatic Drop Lens









150W Max

N











I













O













CA













W E T LO























12-11/16"













14-1/2"

Asymmetric Drop Lens

TRIM



FINISH





150W Max



11321=Square Asymmetric



P=White Trim, Clear Impact Resistant





N

Drop Lens



Polycarbonate















O













I













CA













W E T LO























12-11/16"













14-1/2"



Ordering Example



Housing

Ballast

Trim

Accessories













Housing, Ballast, Trim, Accessories and Lamps ordered as separate line items.

M5355TQ

650

11300P

HB26

894COOPER LIGHTING

Page 1
Image 1

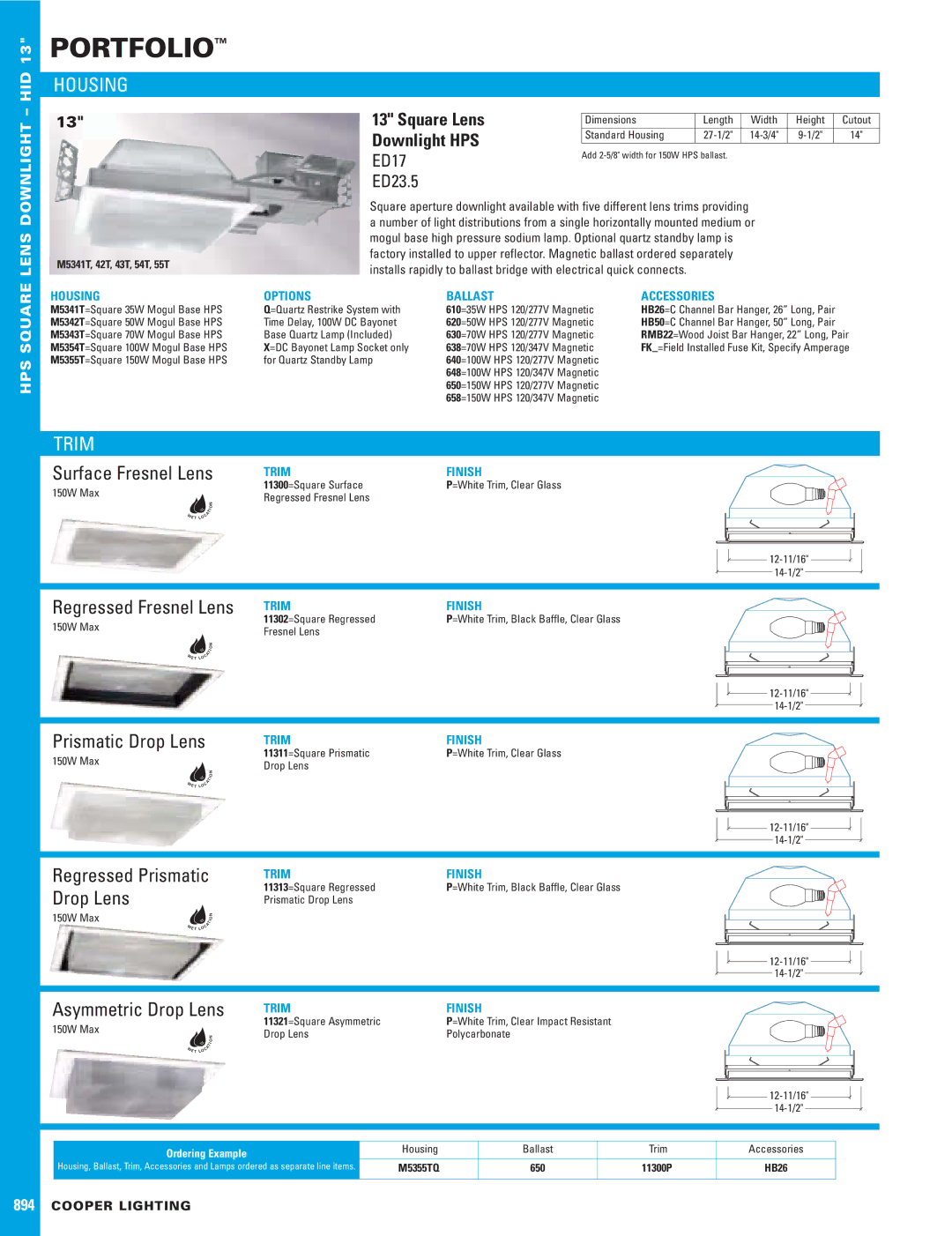

Cooper Lighting P/I-XP55T2P4 dimensions Surface Fresnel Lens, Regressed Fresnel Lens, Prismatic Drop Lens
