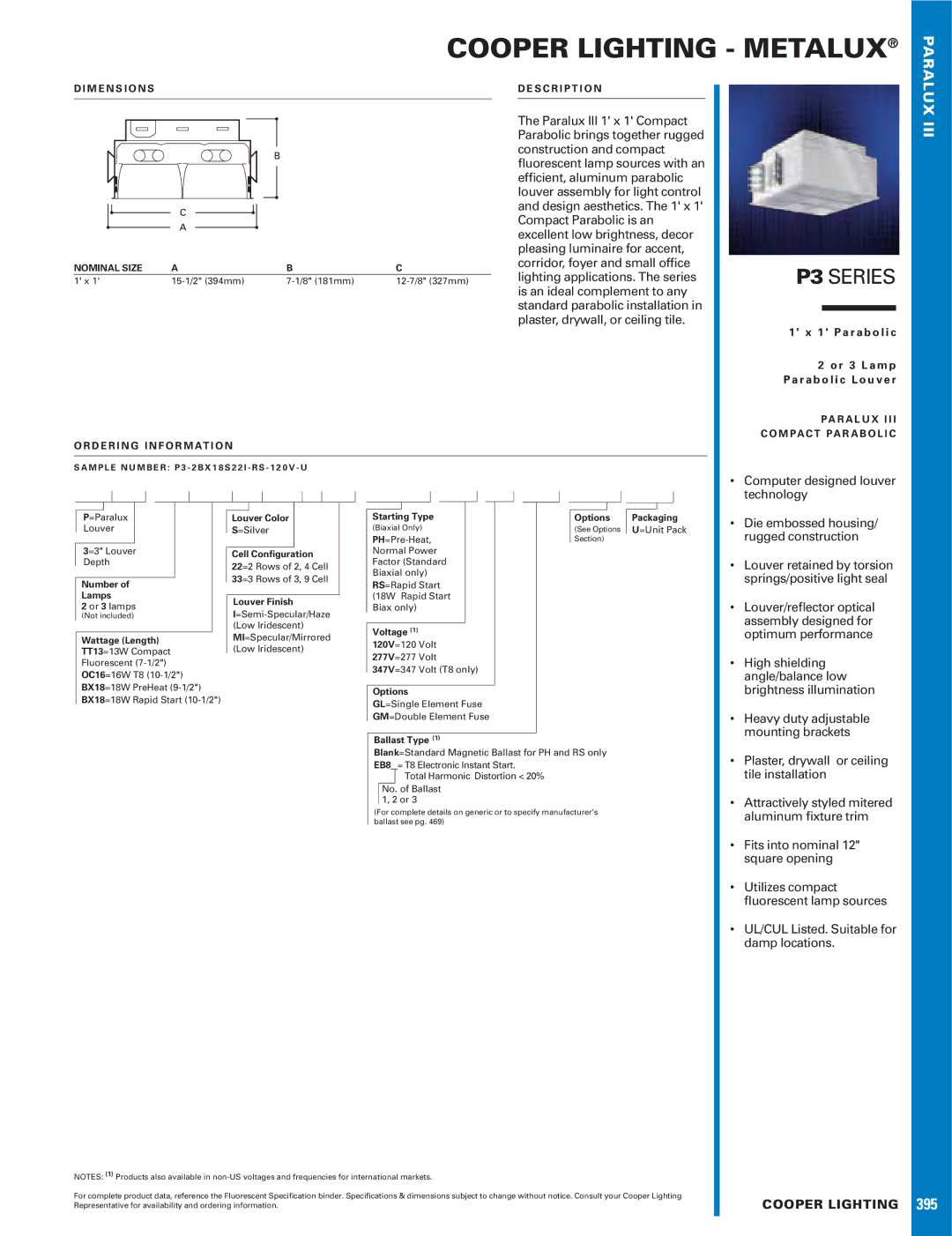

COOPER LIGHTING - METALUX®

PARALUX

D I M E N S I O N S

NOMINAL SIZE

A

B

C

1' x 1'

15-1/2" (394mm)

7-1/8" (181mm)

12-7/8" (327mm)

D E S C R I P T I O N

The Paralux III 1' x 1' Compact Parabolic brings together rugged construction and compact fluorescent lamp sources with an efficient, aluminum parabolic louver assembly for light control and design aesthetics. The 1' x 1' Compact Parabolic is an excellent low brightness, decor pleasing luminaire for accent, corridor, foyer and small office lighting applications. The series is an ideal complement to any standard parabolic installation in plaster, drywall, or ceiling tile.

P3 SERIES

1 ' x 1 ' P a r a b o l i c

2 o r 3 L a m p P a r a b o l i c L o u v e r

PA R A L U X I I I C O M PA C T PA R A B O L I C

III

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : P 3 - 2 B X 1 8 S 2 2 I - R S - 1 2 0 V - U

P=Paralux

Louver

3=3" Louver

Depth

Number of

Lamps

2 or 3 lamps

(Not included)

Wattage (Length)

TT13=13W Compact

Fluorescent (7-1/2")

OC16=16W T8 (10-1/2")

BX18=18W PreHeat (9-1/2")

BX18=18W Rapid Start (10-1/2")

Louver Color

S=Silver

Cell Configuration

22=2 Rows of 2, 4 Cell

33=3 Rows of 3, 9 Cell

Louver Finish

I=Semi-Specular/Haze

(Low Iridescent)

MI=Specular/Mirrored

(Low Iridescent)

Starting Type

(Biaxial Only)

PH=Pre-Heat, Normal Power Factor (Standard Biaxial only) RS=Rapid Start (18W Rapid Start Biax only)

Voltage (1)

120V=120 Volt

277V=277 Volt

347V=347 Volt (T8 only)

Options

GL=Single Element Fuse GM=Double Element Fuse

Options

(See Options Section)

Packaging

U=Unit Pack

•

Computer designed louver



technology

•

Die embossed housing/



rugged construction

• Louver retained by torsion



springs/positive light seal

•

Louver/reflector optical



assembly designed for



optimum performance

•

High shielding



angle/balance low



brightness illumination

•

Heavy duty adjustable



mounting brackets

Ballast Type (1)

Blank=Standard Magnetic Ballast for PH and RS only EB8 = T8 Electronic Instant Start.

Total Harmonic Distortion < 20% No. of Ballast

1, 2 or 3

(For complete details on generic or to specify manufacturer’s ballast see pg. 469)

•

Plaster, drywall or ceiling



tile installation

•

Attractively styled mitered



aluminum fixture trim

• Fits into nominal 12"



square opening

•

Utilizes compact



fluorescent lamp sources

• UL/CUL Listed. Suitable for



damp locations.

NOTES: (1) Products also available in non-US voltages and frequencies for international markets.



For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting

COOPER LIGHTING

Representative for availability and ordering information.

395
