C A T A L O G # : T Y P E :

 

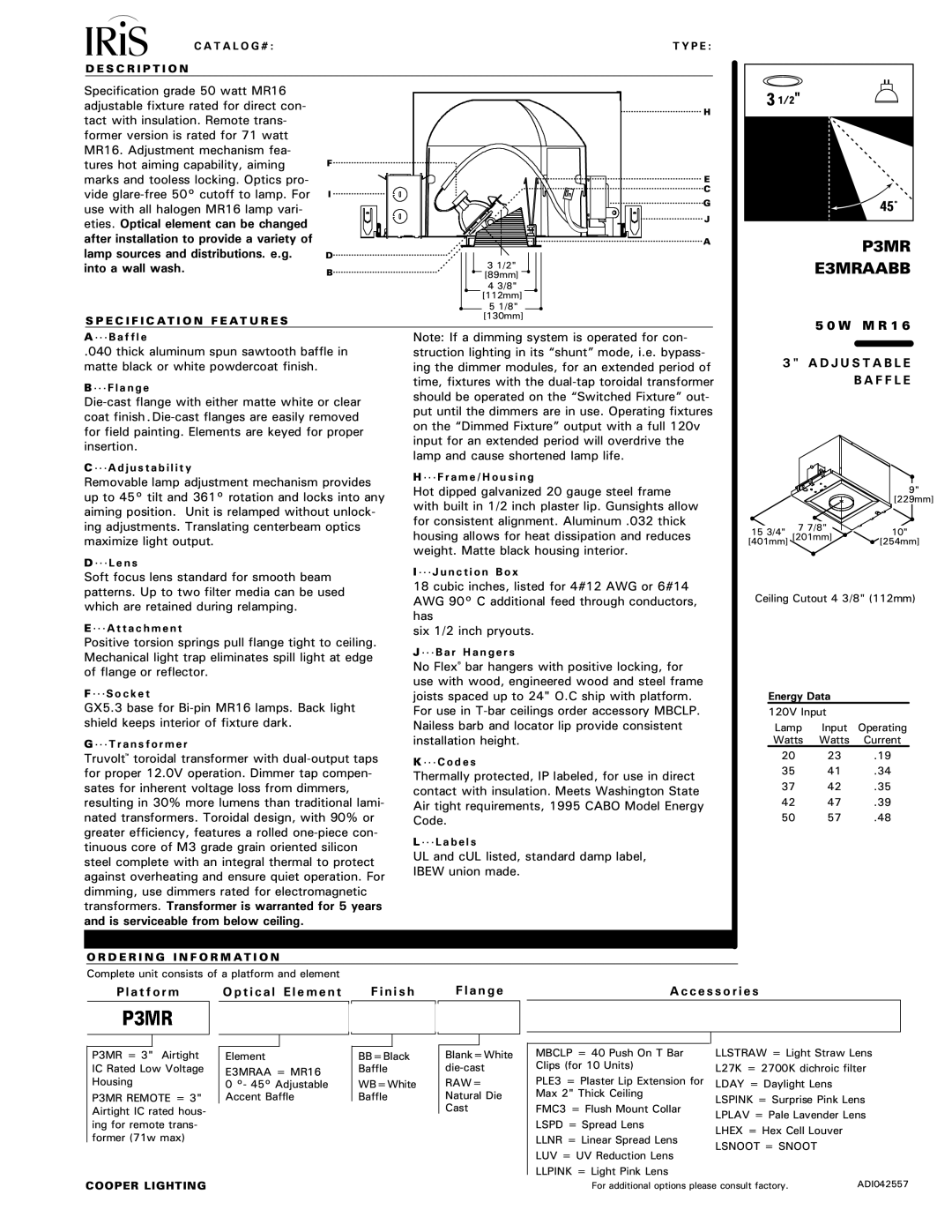

Specification grade 50 watt MR16 adjustable fixture rated for direct con- tact with insulation. Remote trans- former version is rated for 71 watt MR16. Adjustment mechanism fea- tures hot aiming capability, aiming marks and tooless locking. Optics pro- vide glare-free 50° cutoff to lamp. For use with all halogen MR16 lamp vari- eties. Optical element can be changed after installation to provide a variety of lamp sources and distributions. e.g. into a wall wash.

    





















3 1/2"

[89mm]

4 3/8"

[112mm]

5 1/8"

[130mm]

 







      

.. . B af fl e

.040 thick aluminum spun sawtooth baffle in matte black or white powdercoat finish.

.. . F la nge

Die-cast flange with either matte white or clear coat finishDie-cast flanges are easily removed for field painting. Elements are keyed for proper insertion.

.. .Ad jus tab il it y

Removable lamp adjustment mechanism provides up to 45° tilt and 361° rotation and locks into any aiming position. Unit is relamped without unlock- ing adjustments. Translating centerbeam optics maximize light output.

.. . Le ns

Soft focus lens standard for smooth beam patterns. Up to two filter media can be used which are retained during relamping.

.. . At tac hment

Positive torsion springs pull flange tight to ceiling. Mechanical light trap eliminates spill light at edge of flange or reflector.

.. .So cke t

GX5.3 base for Bi-pin MR16 lamps. Back light shield keeps interior of fixture dark.

.. . T r ans for mer

Truvolt™ toroidal transformer with dual-output taps for proper 12.0V operation. Dimmer tap compen- sates for inherent voltage loss from dimmers, resulting in 30% more lumens than traditional lami- nated transformers. Toroidal design, with 90% or greater efficiency, features a rolled one-piece con- tinuous core of M3 grade grain oriented silicon steel complete with an integral thermal to protect against overheating and ensure quiet operation. For dimming, use dimmers rated for electromagnetic transformers. Transformer is warranted for 5 years and is serviceable from below ceiling.

Note: If a dimming system is operated for con- struction lighting in its “shunt” mode, i.e. bypass- ing the dimmer modules, for an extended period of time, fixtures with the dual-tap toroidal transformer should be operated on the “Switched Fixture” out- put until the dimmers are in use. Operating fixtures on the “Dimmed Fixture” output with a full 120v input for an extended period will overdrive the lamp and cause shortened lamp life.

.. . F r ame/H ou si ng

Hot dipped galvanized 20 gauge steel frame with built in 1/2 inch plaster lip. Gunsights allow for consistent alignment. Aluminum .032 thick housing allows for heat dissipation and reduces weight. Matte black housing interior.

 .. . J unc ti on B ox

18 cubic inches, listed for 4#12 AWG or 6#14 AWG 90° C additional feed through conductors, has

six 1/2 inch pryouts.

 .. . B ar	H an ger s
No Flex®	bar hangers with positive locking, for

use with wood, engineered wood and steel frame joists spaced up to 24" O.C ship with platform. For use in T-bar ceilings order accessory MBCLP. Nailess barb and locator lip provide consistent installation height.

 .. . Cod es

Thermally protected, IP labeled, for use in direct contact with insulation. Meets Washington State Air tight requirements, 1995 CABO Model Energy Code.

 .. . La bel s

UL and cUL listed, standard damp label, IBEW union made.

3 " A D J U S T A B L E B A F F L E

9"

[229mm]

15 3/4"	7 7/8"	10"
	[201mm]
[401mm]		[254mm]

Ceiling Cutout 4 3/8" (112mm)

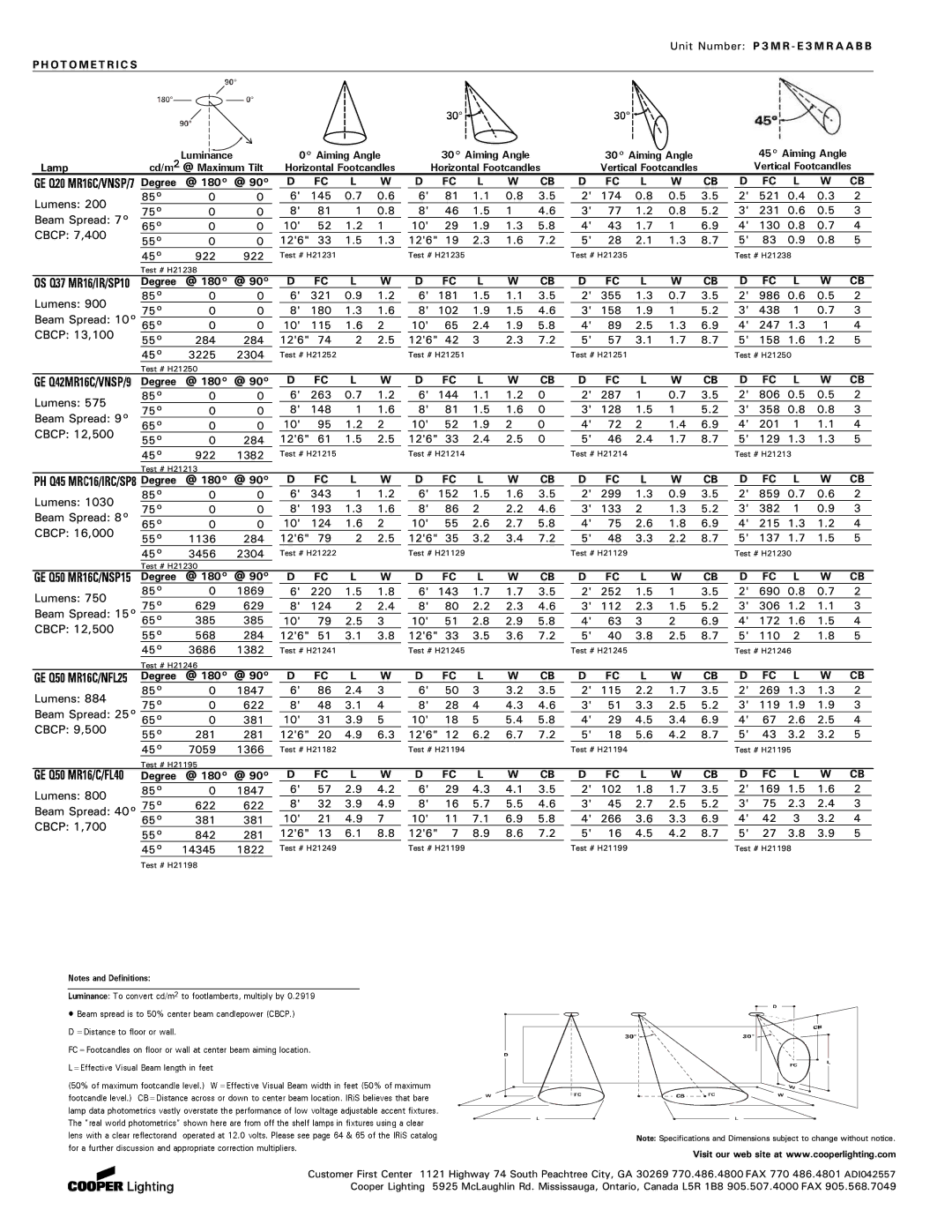

Energy Data
120V Input
Lamp	Input	Operating
Watts	Watts	Current
20	23	.19
35	41	.34
37	42	.35
42	47	.39
50	57	.48

 

Complete unit consists of a platform and element

P l a t f or m O pt i c a l El e me nt F i ni s h

F l a n ge A c c e s s o r i e s

P3MR = 3" Airtight IC Rated Low Voltage Housing

P3MR REMOTE = 3" Airtight IC rated hous- ing for remote trans- former (71w max)

 

Element

E3MRAA = MR16

0 °- 45° Adjustable

Accent Baffle

BB=Black

Baffle

WB=White

Baffle

Blank=White die-cast

RAW= Natural Die Cast

MBCLP = 40 Push On T Bar	LLSTRAW = Light Straw Lens
Clips (for 10 Units)	L27K = 2700K dichroic filter
PLE3 = Plaster Lip Extension for	LDAY = Daylight Lens
Max 2" Thick Ceiling	LSPINK = Surprise Pink Lens
FMC3 = Flush Mount Collar
	LPLAV = Pale Lavender Lens
LSPD = Spread Lens
	LHEX = Hex Cell Louver
LLNR = Linear Spread Lens
	LSNOOT = SNOOT
LUV = UV Reduction Lens
LLPINK = Light Pink Lens
For additional options please consult factory.		ADI042557
