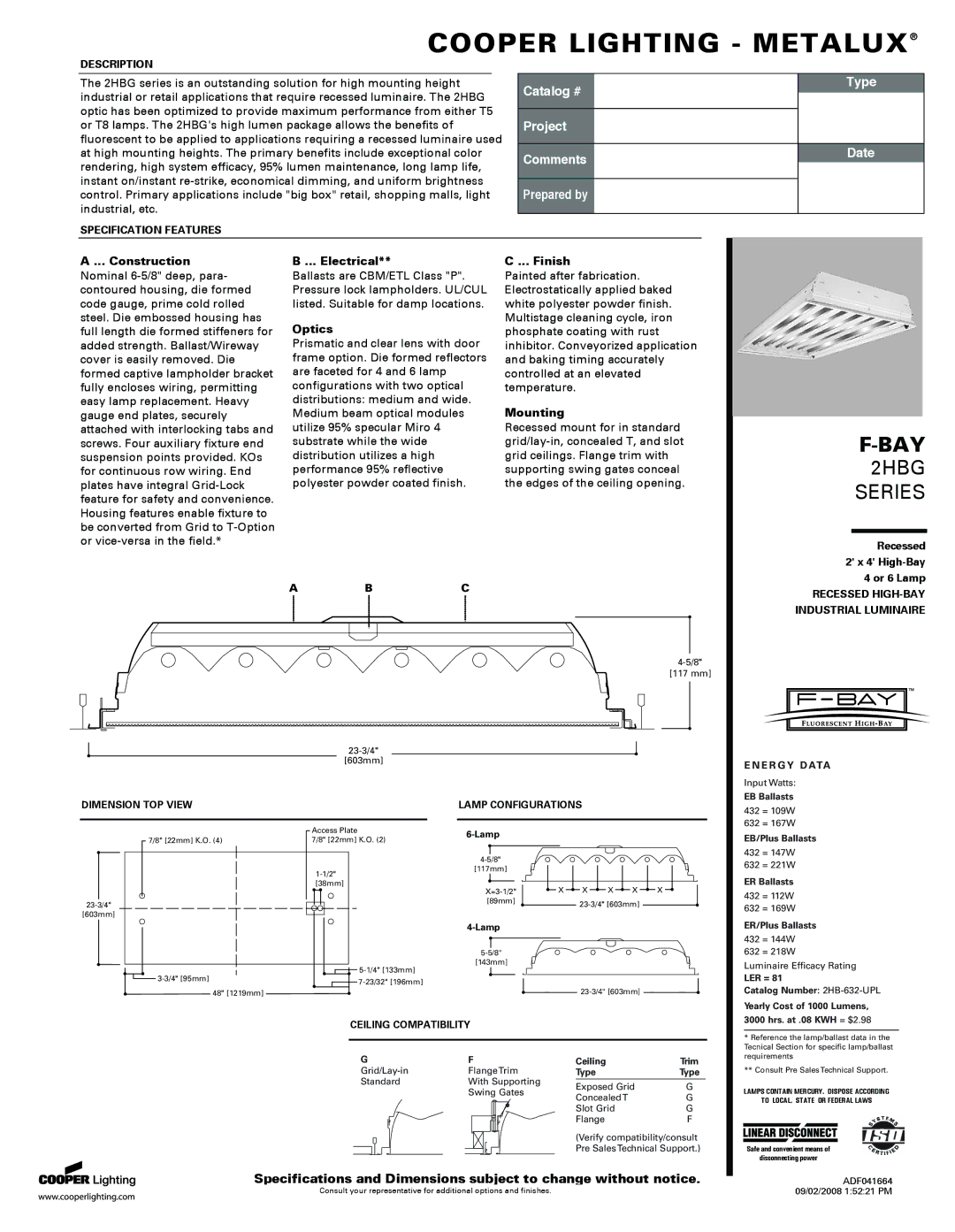

COOPER LIGHTING - METALUX®

DESCRIPTION

The 2HBG series is an outstanding solution for high mounting height industrial or retail applications that require recessed luminaire. The 2HBG optic has been optimized to provide maximum performance from either T5 or T8 lamps. The 2HBG's high lumen package allows the benefits of fluorescent to be applied to applications requiring a recessed luminaire used at high mounting heights. The primary benefits include exceptional color rendering, high system efficacy, 95% lumen maintenance, long lamp life, instant on/instant re-strike, economical dimming, and uniform brightness control. Primary applications include "big box" retail, shopping malls, light industrial, etc.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

Type

Date

A ... Construction

Nominal 6-5/8" deep, para- contoured housing, die formed code gauge, prime cold rolled steel. Die embossed housing has full length die formed stiffeners for added strength. Ballast/Wireway cover is easily removed. Die formed captive lampholder bracket fully encloses wiring, permitting easy lamp replacement. Heavy gauge end plates, securely attached with interlocking tabs and screws. Four auxiliary fixture end suspension points provided. KOs for continuous row wiring. End plates have integral Grid-Lock feature for safety and convenience. Housing features enable fixture to be converted from Grid to T-Option or vice-versa in the field.*

B ... Electrical**

Ballasts are CBM/ETL Class "P". Pressure lock lampholders. UL/CUL listed. Suitable for damp locations.

Optics

Prismatic and clear lens with door frame option. Die formed reflectors are faceted for 4 and 6 lamp configurations with two optical distributions: medium and wide. Medium beam optical modules utilize 95% specular Miro 4 substrate while the wide distribution utilizes a high performance 95% reflective polyester powder coated finish.

A BC

C ... Finish

Painted after fabrication. Electrostatically applied baked white polyester powder finish. Multistage cleaning cycle, iron phosphate coating with rust inhibitor. Conveyorized application and baking timing accurately controlled at an elevated temperature.

Mounting

Recessed mount for in standard grid/lay-in, concealed T, and slot grid ceilings. Flange trim with supporting swing gates conceal the edges of the ceiling opening.

F-BAY

2HBG

SERIES

Recessed 2' x 4' High-Bay 4 or 6 Lamp

RECESSED HIGH-BAY INDUSTRIAL LUMINAIRE

4-5/8"

[117 mm]



23-3/4"













[603mm]











DIMENSION TOP VIEW



LAMP CONFIGURATIONS









Access Plate

6-Lamp









7/8" [22mm] K.O. (4)

7/8" [22mm] K.O. (2)























4-5/8"











1-1/2"

[117mm]























[38mm]

X=3-1/2"

X X

X

X

X





23-3/4"



[89mm]

23-3/4" [603mm]









[603mm]

















4-Lamp













5-5/8"











5-1/4" [133mm]

[143mm]









3-3/4" [95mm]











7-23/32" [196mm]























48" [1219mm]





23-3/4" [603mm]





CEILING COMPATIBILITY











G

F

Ceiling





Trim



Grid/Lay-in

Flange Trim

Type





Type



Standard

With Supporting

Exposed Grid

G





Swing Gates





Concealed T



G















Slot Grid



G







Flange





F

(Verify compatibility/consult Pre Sales Technical Support.)

Specifications and Dimensions subject to change without notice.

Consult your representative for additional options and finishes.

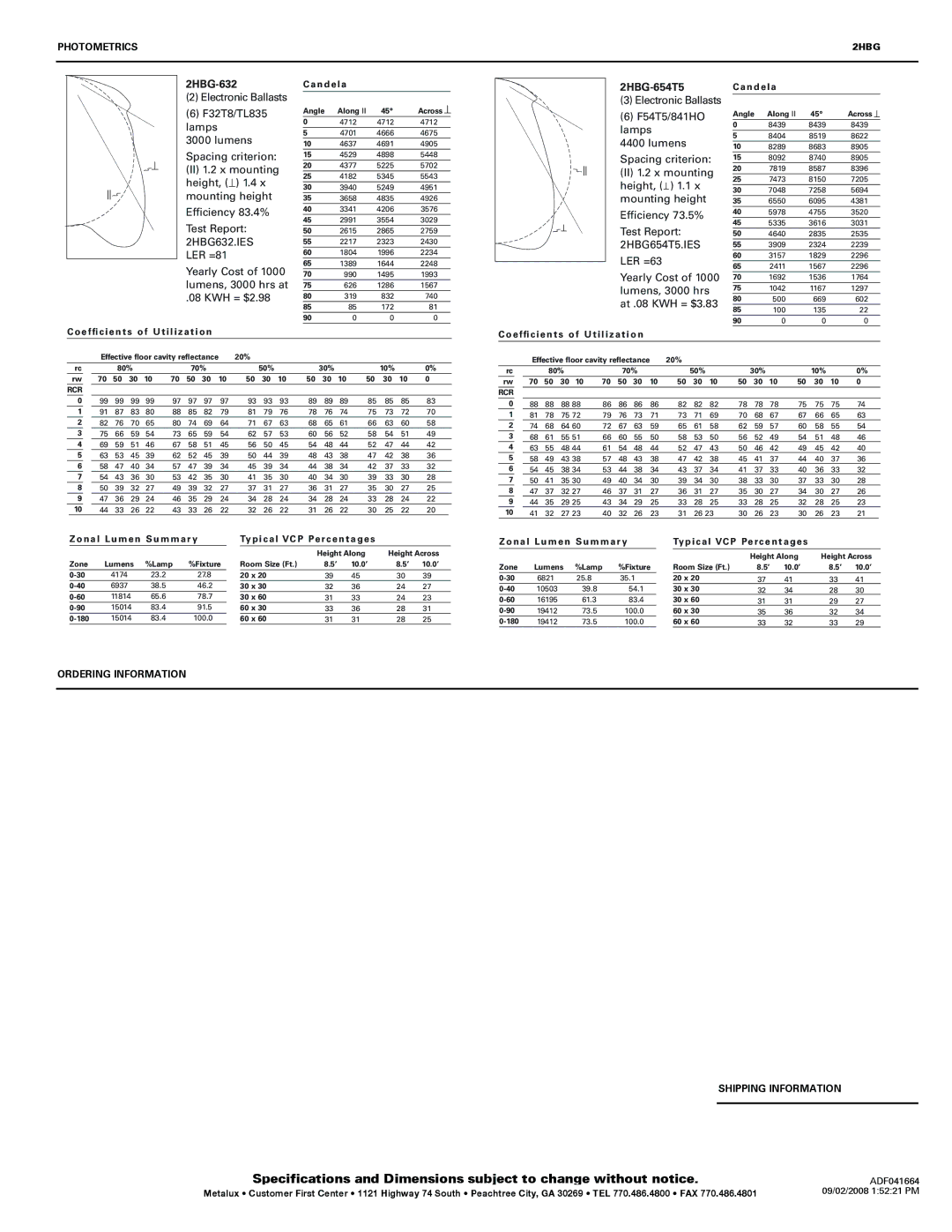

E N E R G Y DATA

Input Watts:

EB Ballasts

432 = 109W

632 = 167W

EB/Plus Ballasts

432 = 147W

632 = 221W

ER Ballasts

432 = 112W

632 = 169W

ER/Plus Ballasts

432 = 144W

632 = 218W

Luminaire Efficacy Rating

LER = 81

Catalog Number: 2HB-632-UPL

Yearly Cost of 1000 Lumens, 3000 hrs. at .08 KWH = $2.98

*Reference the lamp/ballast data in the Tecnical Section for specific lamp/ballast requirements

**Consult Pre Sales Technical Support.

LAMPS CONTAIN MERCURY. DISPOSE ACCORDING

TO LOCAL, STATE OR FEDERAL LAWS

Safe and convenient means of

disconnecting power

ADF041664 09/02/2008 1:52:21 PM

Page 1
