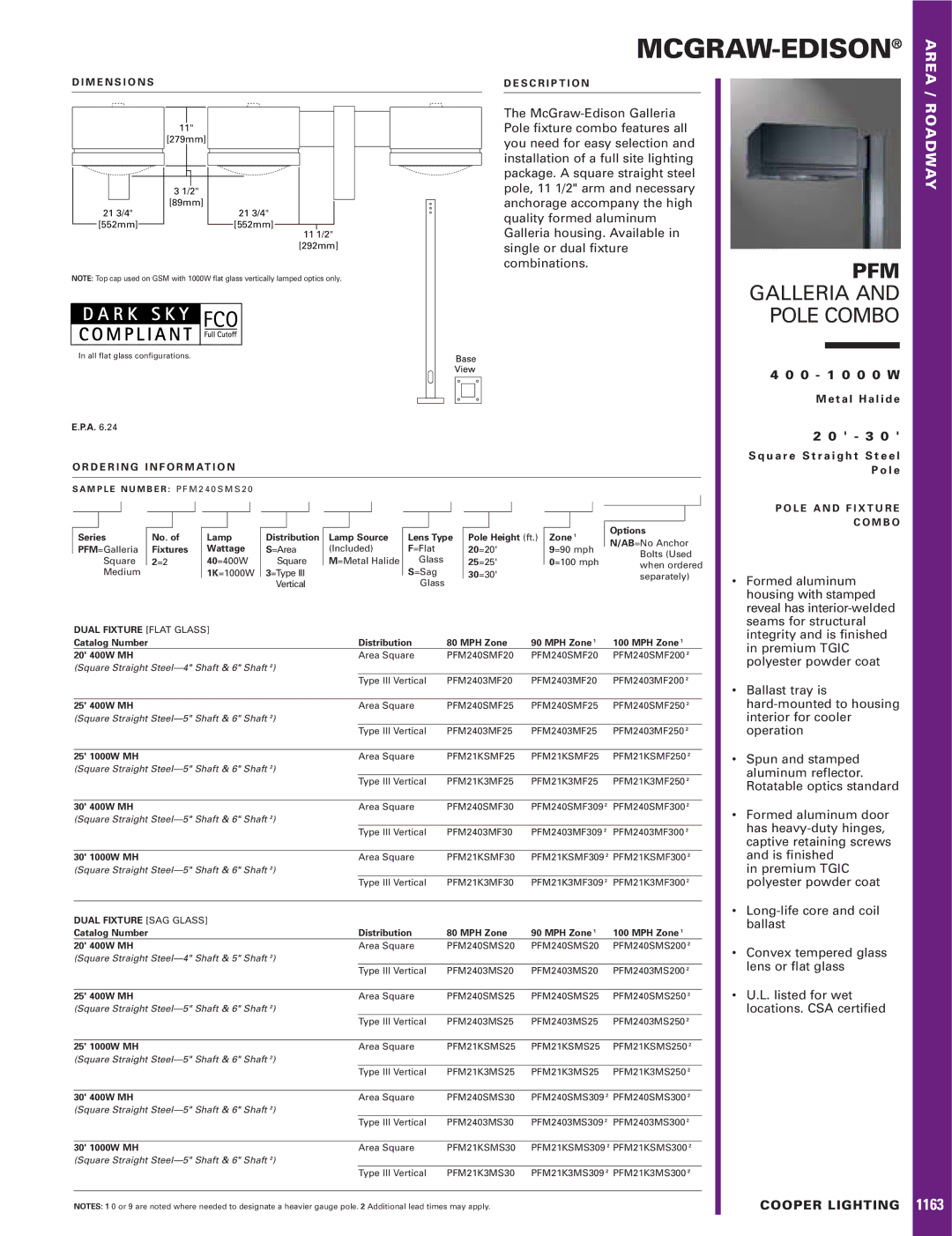

MCGRAW-EDISON®

D E S C R I P T I O N

The McGraw-Edison Galleria Pole fixture combo features all you need for easy selection and installation of a full site lighting package. A square straight steel pole, 11 1/2" arm and necessary anchorage accompany the high quality formed aluminum Galleria housing. Available in single or dual fixture combinations.

D I M E N S I O N S

11"

[279mm]

	3 1/2"
	[89mm]
21 3/4"	21 3/4"
[552mm]	[552mm]

11 1/2"

[292mm]

AREA / ROADWAY

PFM

GALLERIA AND POLE COMBO

4 0 0 - 1 0 0 0 W

M e t a l H a l i d e

2 0 ' - 3 0 '

S q u a r e S t r a i g h t S t e e l P o l e

P O L E A N D F I X T U R E

C O M B O

•Formed aluminum housing with stamped reveal has interior-welded seams for structural integrity and is finished in premium TGIC polyester powder coat

•Ballast tray is hard-mounted to housing interior for cooler operation

•Spun and stamped aluminum reflector. Rotatable optics standard

•Formed aluminum door has heavy-duty hinges, captive retaining screws and is finished

in premium TGIC polyester powder coat

•Long-life core and coil ballast

•Convex tempered glass lens or flat glass

•U.L. listed for wet locations. CSA certified

NOTE: Top cap used on GSM with 1000W flat glass vertically lamped optics only.

In all flat glass configurations.

E.P.A. 3.12

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : P F M 1 4 0 S M S 2 0

Series	No. of	Lamp	Distribution	Lamp Source	Lens Type	Pole Height (ft.)	Zone 1	Options
PFM=Galleria	Fixtures	Wattage	S=Area	(Included)	F=Flat	20=20'	9=90 mph	N/AB=No Anchor
Square	1=1	40=400W	Square	M=Metal Halide	Glass	25=25'	0=100 mph	Bolts (Used
Medium		1K=1000W	3=Type III		S=Sag	30=30'		when ordered
			Vertical		Glass			separately)

SINGLE FIXTURE [FLAT GLASS]
Catalog Number	Distribution	80 MPH Zone	90 MPH Zone 1	100 MPH Zone 1
20' 400W MH	Area Square	PFM140SMF20	PFM140SMF20	PFM140SMF20
(Square Straight Steel—4" Shaft)
	Type III Vertical	PFM1403MF20	PFM1403MF20	PFM1403MF20
25' 400W MH	Area Square	PFM140SMF25	PFM140SMF25	PFM140SMF250 2
(Square Straight Steel—4" Shaft & 5" Shaft 2)
	Type III Vertical	PFM1403MF25	PFM1403MF25	PFM1403MF250 2
25' 1000W MH	Area Square	PFM11KSMF25	PFM11KSMF25	PFM11KSMF250 2
(Square Straight Steel—4" Shaft & 5" Shaft 2)
	Type III Vertical	PFM11K3MF25	PFM11K3MF25	PFM11K3MF250 2
30' 400W MH	Area Square	PFM140SMF30	PFM140SMF309	PFM140SMF300 2
(Square Straight Steel—5" Shaft & 6" Shaft 2)
	Type III Vertical	PFM1403MF30	PFM1403MF309	PFM1403MF300 2
30' 1000W MH	Area Square	PFM11KSMF30	PFM11KSMF309	PFM11KSMF300 2
(Square Straight Steel—5" Shaft & 6" Shaft 2)
	Type III Vertical	PFM11K3MF30	PFM11K3MF309	PFM11K3MF300 2
SINGLE FIXTURE [SAG GLASS]
Catalog Number	Distribution	80 MPH Zone	90 MPH Zone 1	100 MPH Zone 1
20' 400W MH	Area Square	PFM140SMS20	PFM140SMS20	PFM140SMS20
(Square Straight Steel—4" Shaft)
	Type III Vertical	PFM1403MS20	PFM1403MS20	PFM1403MS20
25' 400W MH	Area Square	PFM140SMS25	PFM140SMS25	PFM140SMS250 2
(Square Straight Steel—4" Shaft & 5" Shaft 2)
	Type III Vertical	PFM1403MS25	PFM1403MS25	PFM1403MS250 2
25' 1000W MH	Area Square	PFM11KSMS25	PFM11KSMS25	PFM11KSMS250 2
(Square Straight Steel—4" Shaft & 5" Shaft 2)
	Type III Vertical	PFM11K3MS25	PFM11K3MS25	PFM11K3MS250 2
30' 400W MH	Area Square	PFM140SMS30	PFM140SMS309	PFM140SMS300 2
(Square Straight Steel—5" Shaft & 6" Shaft 2)
	Type III Vertical	PFM1403MS30	PFM1403MS309	PFM1403MS300 2
30' 1000W MH	Area Square	PFM11KSMS30	PFM11KSMS309	PFM11KSMS300 2
(Square Straight Steel—5" Shaft & 6" Shaft 2)
	Type III Vertical	PFM11K3MS30	PFM11K3MS309	PFM11K3MS300 2

1162

COOPER LIGHTING
	NOTES: 1 0 or 9 are noted where needed to designate a heavier gauge pole. 2 Additional lead times may apply.
