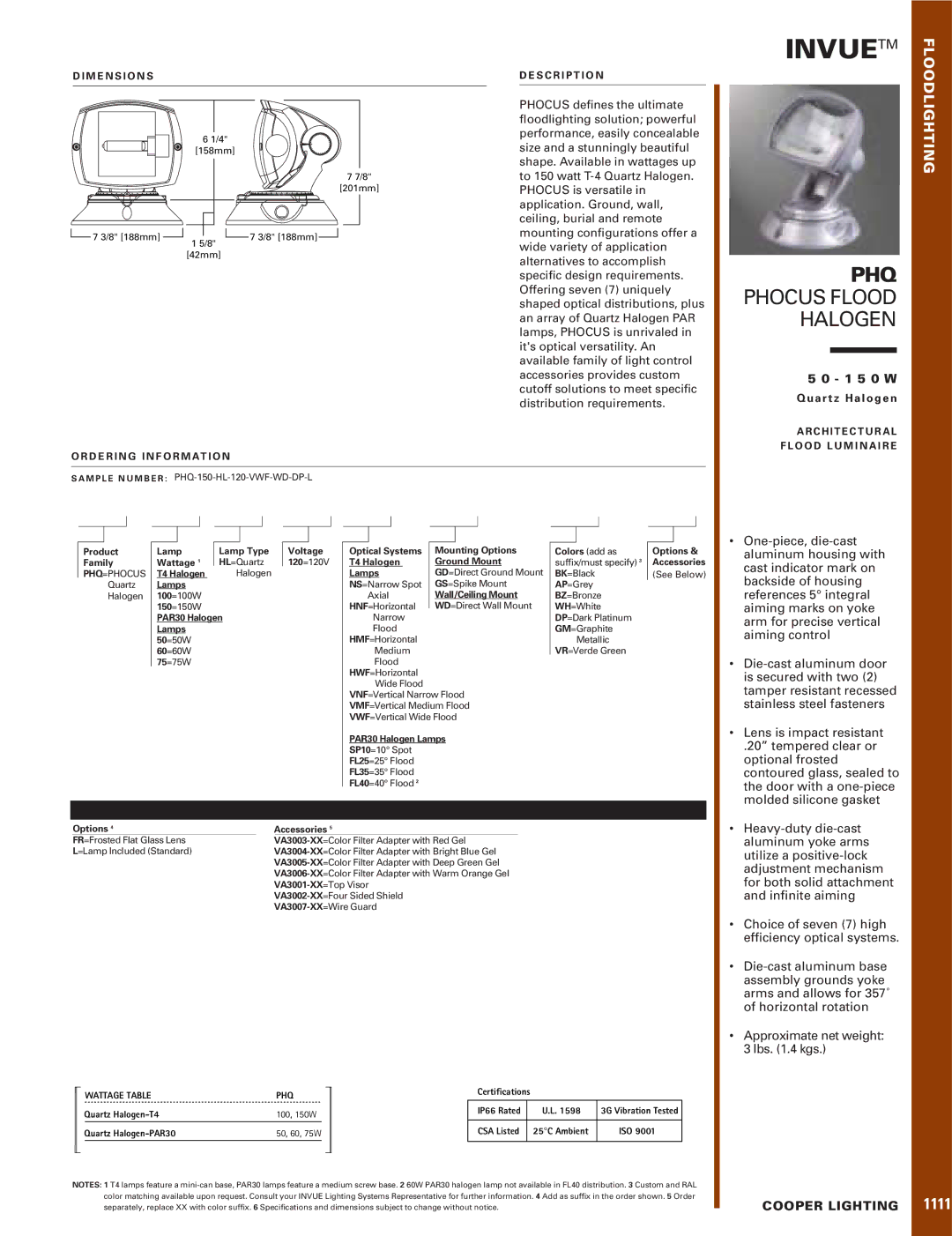

D I M E N S I O N SD E S C R I P T I O N

INVUETM

61/4"

[158mm]

7 7/8"

[201mm]

7 3/8" [188mm]			7 3/8" [188mm]
	1 5/8"
		[42mm]

PHOCUS defines the ultimate floodlighting solution; powerful performance, easily concealable size and a stunningly beautiful shape. Available in wattages up to 150 watt T-4 Quartz Halogen. PHOCUS is versatile in application. Ground, wall, ceiling, burial and remote mounting configurations offer a wide variety of application alternatives to accomplish specific design requirements. Offering seven (7) uniquely shaped optical distributions, plus an array of Quartz Halogen PAR lamps, PHOCUS is unrivaled in it's optical versatility. An available family of light control accessories provides custom cutoff solutions to meet specific distribution requirements.

PHQ

PHOCUS FLOOD HALOGEN

5 0 - 1 5 0 W

Q u a r t z H a l o g e n

A R C H I T E C T U R A L F L O O D L U M I N A I R E

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : PHQ-150-HL-120-VWF-WD-DP-L

Product

Family

PHQ=PHOCUS

Quartz

Halogen

Lamp	Lamp Type
Wattage 1	HL=Quartz
T4 Halogen	Halogen
Lamps
100=100W

150=150W

PAR30 Halogen

Lamps

50=50W

60=60W

75=75W

Voltage 120=120V

Optical Systems

T4 Halogen

Lamps

NS=Narrow Spot

Axial

HNF=Horizontal

Narrow

Flood

HMF=Horizontal

Medium

Flood

Mounting Options

Ground Mount

GD=Direct Ground Mount

GS=Spike Mount

Wall/Ceiling Mount

WD=Direct Wall Mount

Colors (add as suffix/must specify) 3 BK=Black AP=Grey BZ=Bronze WH=White DP=Dark Platinum GM=Graphite

Metallic

VR=Verde Green

Options & Accessories

(See Below)

• One-piece, die-cast

aluminum housing with

cast indicator mark on

backside of housing

references 5° integral

aiming marks on yoke

arm for precise vertical

aiming control

• Die-cast aluminum door

FLOODLIGHTINGAREA/ROADWAY

HWF=Horizontal

Wide Flood

VNF=Vertical Narrow Flood

VMF=Vertical Medium Flood

VWF=Vertical Wide Flood

PAR30 Halogen Lamps

SP10=10° Spot

FL25=25° Flood

FL35=35° Flood

FL40=40° Flood 2

Options 4	Accessories 5
FR=Frosted Flat Glass Lens	VA3003-XX=Color Filter Adapter with Red Gel
L=Lamp Included (Standard)	VA3004-XX=Color Filter Adapter with Bright Blue Gel
	VA3005-XX=Color Filter Adapter with Deep Green Gel
	VA3006-XX=Color Filter Adapter with Warm Orange Gel
	VA3001-XX=Top Visor
	VA3002-XX=Four Sided Shield
	VA3007-XX=Wire Guard

WATTAGE TABLE	PHQ	Certifications
Quartz Halogen-T4	100, 150W	IP66 Rated	U.L. 1598	3G Vibration Tested
Quartz Halogen-PAR30	50, 60, 75W	CSA Listed	25°C Ambient	ISO 9001

NOTES: 1 T4 lamps feature a mini-can base, PAR30 lamps feature a medium screw base. 2 60W PAR30 halogen lamp not available in FL40 distribution. 3 Custom and RAL color matching available upon request. Consult your INVUE Lighting Systems Representative for further information. 4 Add as suffix in the order shown. 5 Order separately, replace XX with color suffix. 6 Specifications and dimensions subject to change without notice.

is secured with two (2)

tamper resistant recessed

stainless steel fasteners

• Lens is impact resistant

.20” tempered clear or

optional frosted

contoured glass, sealed to

the door with a one-piece

molded silicone gasket

• Heavy-duty die-cast

aluminum yoke arms

utilize a positive-lock

adjustment mechanism

for both solid attachment

and infinite aiming

• Choice of seven (7) high

efficiency optical systems.

• Die-cast aluminum base

assembly grounds yoke

arms and allows for 357˚

of horizontal rotation

• Approximate net weight:

3 lbs. (1.4 kgs.)

COOPER LIGHTING
