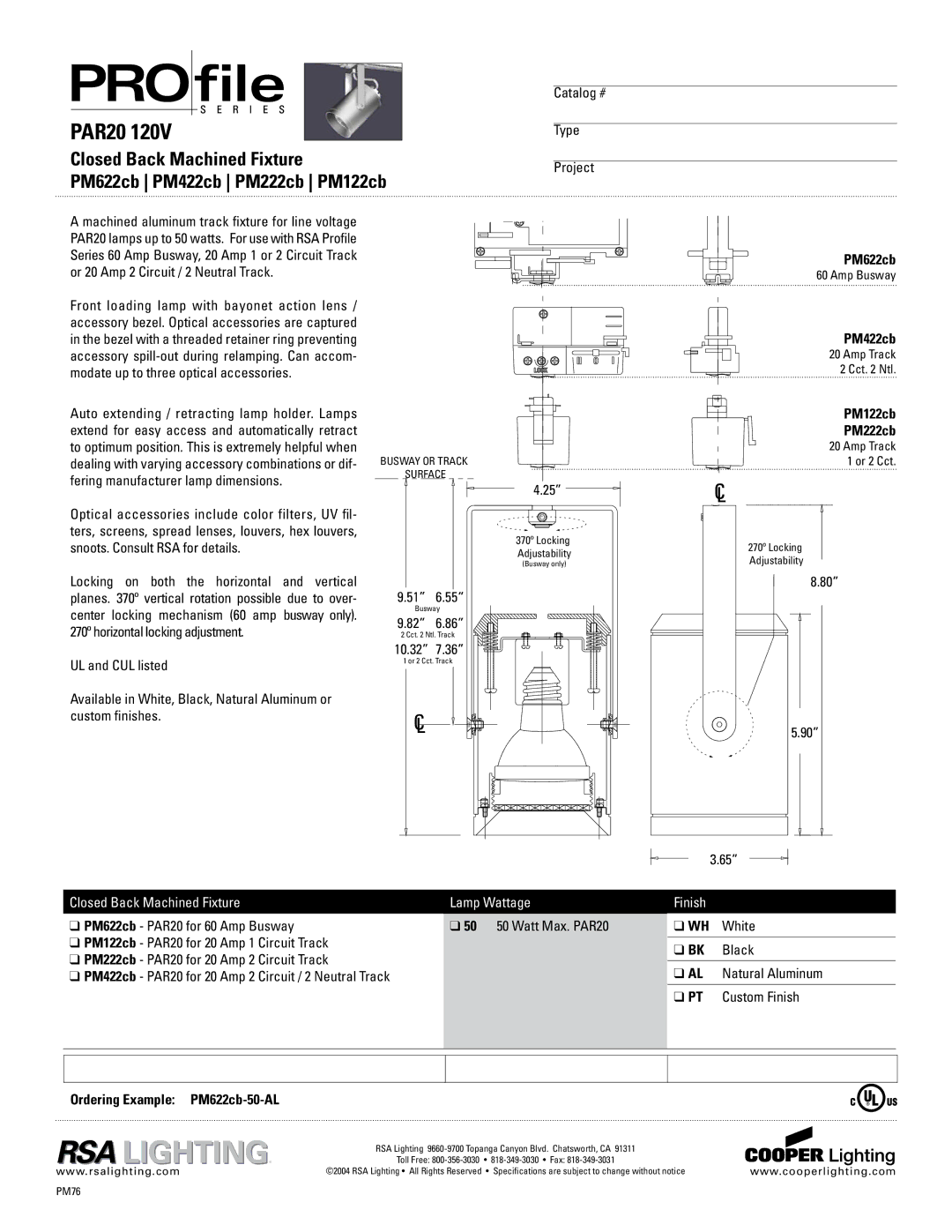

PAR20 120V

Closed Back Machined Fixture

PM622cb PM422cb PM222cb PM122cb

A machined aluminum track fixture for line voltage PAR20 lamps up to 50 watts. For use with RSA Profile Series 60 Amp Busway, 20 Amp 1 or 2 Circuit Track or 20 Amp 2 Circuit / 2 Neutral Track.

Catalog #

Type

Project

PM622cb

60 Amp Busway

Front loading lamp with bayonet action lens /











accessory bezel. Optical accessories are captured









PM422cb

in the bezel with a threaded retainer ring preventing









accessory spill-out during relamping. Can accom-









20 Amp Track

modate up to three optical accessories.









2 Cct. 2 Ntl.

Auto extending / retracting lamp holder. Lamps









PM122cb

extend for easy access and automatically retract









PM222cb

to optimum position. This is extremely helpful when









20 Amp Track

dealing with varying accessory combinations or dif-

"537!99/2 42!#+





1 or 2 Cct.

fering manufacturer lamp dimensions.

352&!#%





#





v











Optical accessories include color filters, UV fil-









,











ters, screens, spread lenses, louvers, hex louvers,





Ž ,OCKING





snoots. Consult RSA for details.







Ž ,OCKING





!DJUSTABILITY











!DJUSTABILITY







"USWAYSONLY



Locking on both the horizontal and vertical

v

h





v

planes. 370º vertical rotation possible due to over-







center locking mechanism (60 amp busway only).

"USWAY







v

v







270º horizontal locking adjustment.







 #CT .TL 4RACK









v

v







UL and CUL listed

 OR #CT 4RACK

















Available in White, Black, Natural Aluminum or

#









custom finishes.











,







v











v

Closed Back Machined Fixture



Lamp Wattage

Finish



PM622cb - PAR20 for 60 Amp Busway



50

50 Watt Max. PAR20

WH

White

PM122cb - PAR20 for 20 Amp 1 Circuit Track







BK

Black

PM222cb - PAR20 for 20 Amp 2 Circuit Track













AL

Natural Aluminum

PM422cb - PAR20 for 20 Amp 2 Circuit / 2 Neutral Track













PT

Custom Finish

Ordering Example: PM622cb-50-AL











RSA Lighting 9660-9700 Topanga Canyon Blvd. Chatsworth, CA 91311

















®

Toll Free: 800-356-3030818-349-3030 • Fax: 818-349-3031









www.rsalighting.com

©2004 RSA Lighting • All Rights Reserved • Specifications are subject to change without notice

www.cooperlighting.com

PM76

Page 1
