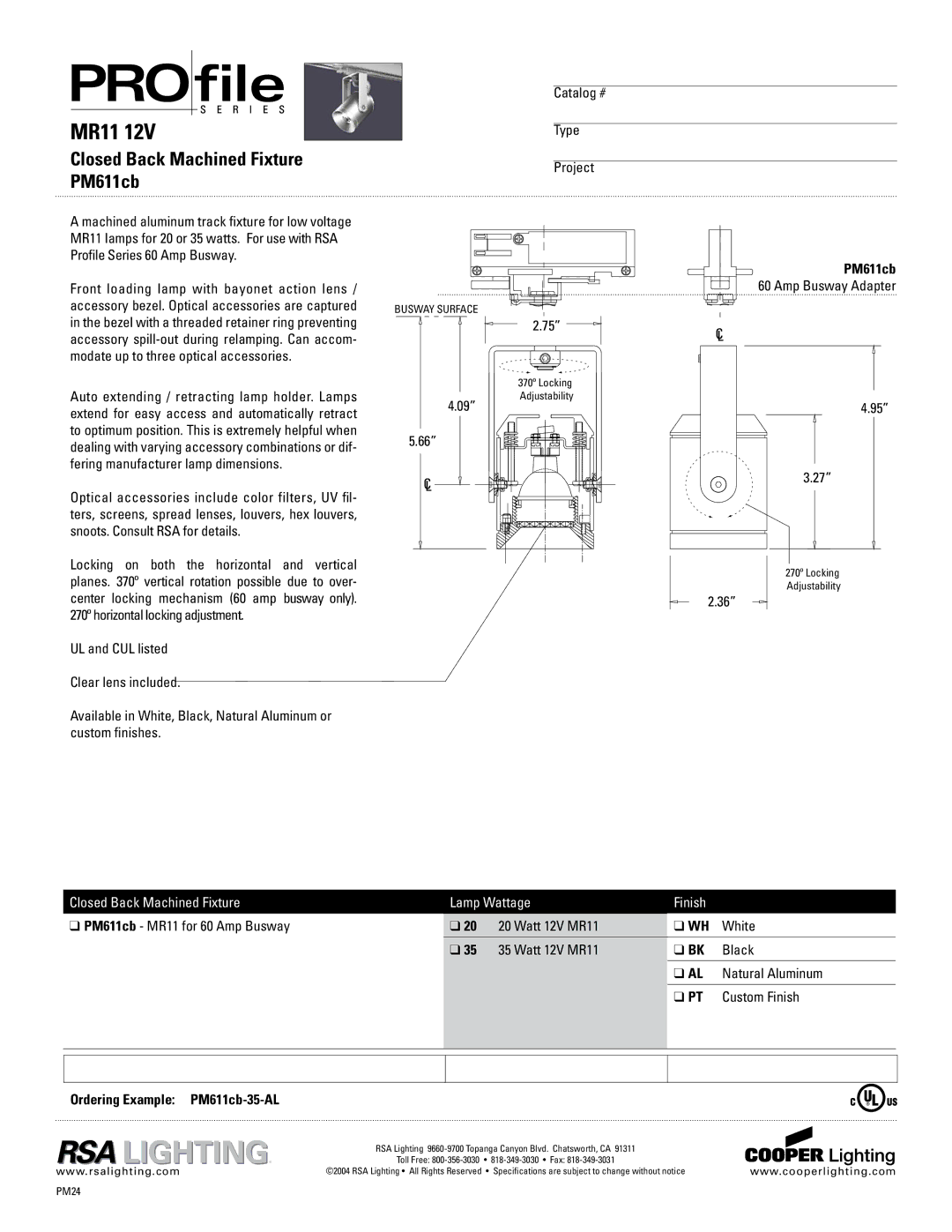

Cooper Lighting specifications MR11, Closed Back Machined Fixture PM611cb, v v #

MR11 12V

Closed Back Machined Fixture PM611cb

Catalog #

Type

Project

A machined aluminum track fixture for low voltage MR11 lamps for 20 or 35 watts. For use with RSA Profile Series 60 Amp Busway.

Front loading lamp with bayonet action lens / accessory bezel. Optical accessories are captured in the bezel with a threaded retainer ring preventing accessory spill-out during relamping. Can accom- modate up to three optical accessories.

Auto extending / retracting lamp holder. Lamps extend for easy access and automatically retract to optimum position. This is extremely helpful when dealing with varying accessory combinations or dif- fering manufacturer lamp dimensions.

Optical accessories include color filters, UV fil- ters, screens, spread lenses, louvers, hex louvers, snoots. Consult RSA for details.

Locking on both the horizontal and vertical planes. 370º vertical rotation possible due to over- center locking mechanism (60 amp busway only). 270º horizontal locking adjustment.

UL and CUL listed

Clear lens included.

Available in White, Black, Natural Aluminum or custom finishes.

"537!99352&!#%

v

v

#,

v

Ž ,OCKING

!DJUSTABILITY

PM611cb

60 Amp Busway Adapter

#,

v

v

Ž ,OCKING !DJUSTABILITY

v

Closed Back Machined Fixture	Lamp Wattage		Finish
❑ PM611cb - MR11 for 60 Amp Busway	❑ 20	20 Watt 12V MR11	❑ WH	White
	❑ 35	35 Watt 12V MR11	❑ BK	Black
			❑ AL	Natural Aluminum
			❑ PT	Custom Finish

Ordering Example: PM611cb-35-AL

		RSA Lighting 9660-9700 Topanga Canyon Blvd. Chatsworth, CA 91311
	®	Toll Free: 800-356-3030 • 818-349-3030 • Fax: 818-349-3031
www.rsalighting.com		©2004 RSA Lighting • All Rights Reserved • Specifications are subject to change without notice	www.cooperlighting.com

PM24
