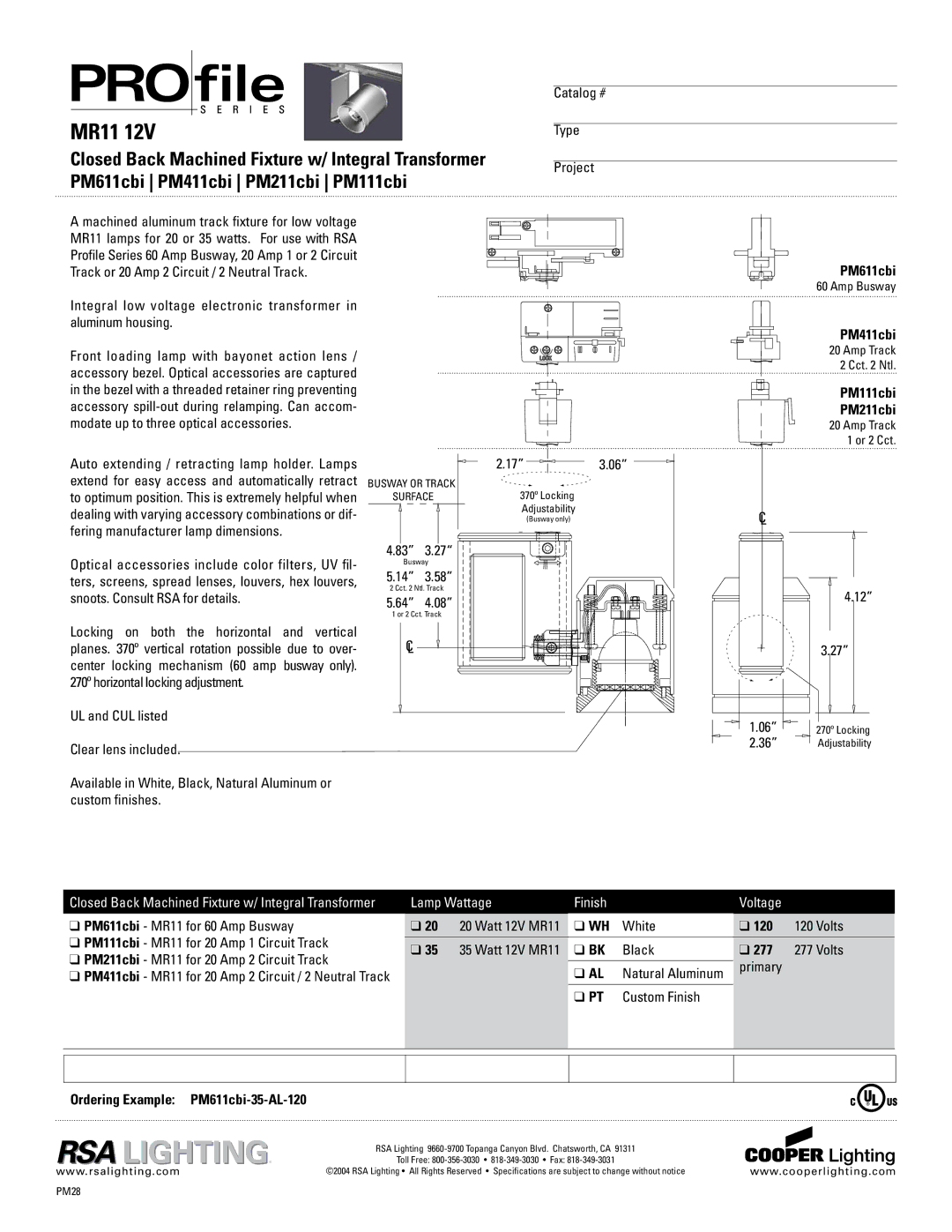

Cooper Lighting PM411cbi, PM611cbi, PM211cbi specifications MR11, Lamp Wattage, Finish, Voltage

MR11 12V

Closed Back Machined Fixture w/ Integral Transformer PM611cbi PM411cbi PM211cbi PM111cbi

Catalog #

Type

Project

A machined aluminum track fixture for low voltage MR11 lamps for 20 or 35 watts. For use with RSA Profile Series 60 Amp Busway, 20 Amp 1 or 2 Circuit Track or 20 Amp 2 Circuit / 2 Neutral Track.

Integral low voltage electronic transformer in aluminum housing.

Front loading lamp with bayonet action lens / accessory bezel. Optical accessories are captured in the bezel with a threaded retainer ring preventing accessory spill-out during relamping. Can accom- modate up to three optical accessories.

Auto extending / retracting lamp holder. Lamps extend for easy access and automatically retract to optimum position. This is extremely helpful when dealing with varying accessory combinations or dif- fering manufacturer lamp dimensions.

Optical accessories include color filters, UV fil- ters, screens, spread lenses, louvers, hex louvers, snoots. Consult RSA for details.

Locking on both the horizontal and vertical planes. 370º vertical rotation possible due to over- center locking mechanism (60 amp busway only). 270º horizontal locking adjustment.

UL and CUL listed

Clear lens included.

Available in White, Black, Natural Aluminum or custom finishes.

"537!99/2 42!#+ 352&!#%

v h

"USWAY

v v

#CT .TL 4RACK

v v

OR #CT 4RACK

#,

v v

Ž ,OCKING !DJUSTABILITY

"USWAYSONLY

	PM611cbi
	60 Amp Busway
	PM411cbi
	20 Amp Track
	2 Cct. 2 Ntl.
	PM111cbi
	PM211cbi
	20 Amp Track
	1 or 2 Cct.
#
,
	v
	v
v	Ž ,OCKING
v	!DJUSTABILITY

Closed Back Machined Fixture w/ Integral Transformer	Lamp Wattage		Finish		Voltage
❑ PM611cbi - MR11 for 60 Amp Busway	❑ 20	20 Watt 12V MR11	❑ WH	White	❑ 120	120 Volts
❑ PM111cbi - MR11 for 20 Amp 1 Circuit Track
	❑ 35	35 Watt 12V MR11	❑ BK	Black	❑ 277	277 Volts
❑ PM211cbi - MR11 for 20 Amp 2 Circuit Track
					primary
			❑ AL	Natural Aluminum
❑ PM411cbi - MR11 for 20 Amp 2 Circuit / 2 Neutral Track
			❑ PT	Custom Finish

Ordering Example: PM611cbi-35-AL-120

		RSA Lighting 9660-9700 Topanga Canyon Blvd. Chatsworth, CA 91311
	®	Toll Free: 800-356-3030 • 818-349-3030 • Fax: 818-349-3031
www.rsalighting.com		©2004 RSA Lighting • All Rights Reserved • Specifications are subject to change without notice	www.cooperlighting.com

PM28
