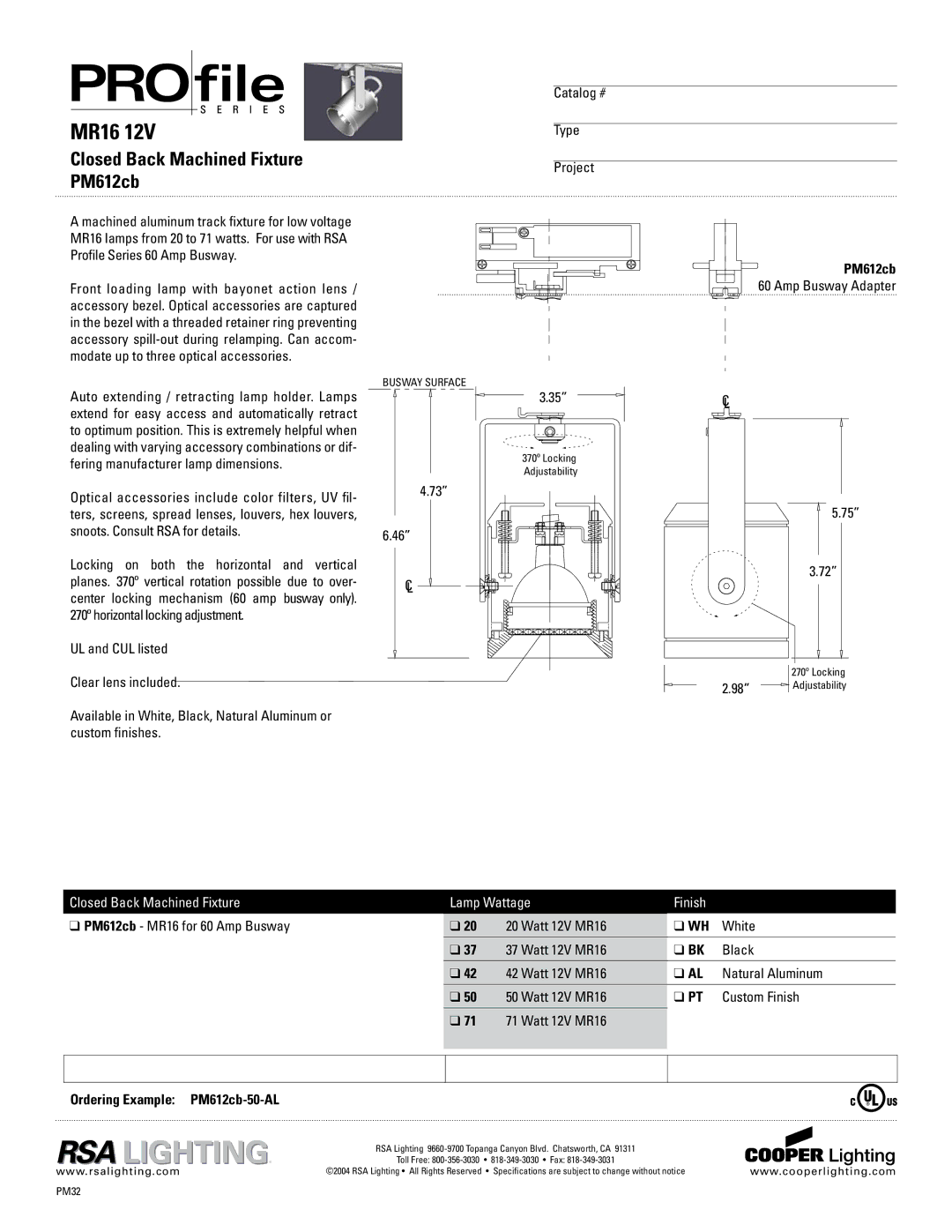

MR16 12V

Closed Back Machined Fixture PM612cb

Catalog #

Type

Project

A machined aluminum track fixture for low voltage MR16 lamps from 20 to 71 watts. For use with RSA Profile Series 60 Amp Busway.

Front loading lamp with bayonet action lens / accessory bezel. Optical accessories are captured in the bezel with a threaded retainer ring preventing accessory spill-out during relamping. Can accom- modate up to three optical accessories.

Auto extending / retracting lamp holder. Lamps extend for easy access and automatically retract to optimum position. This is extremely helpful when dealing with varying accessory combinations or dif- fering manufacturer lamp dimensions.

Optical accessories include color filters, UV fil- ters, screens, spread lenses, louvers, hex louvers, snoots. Consult RSA for details.

Locking on both the horizontal and vertical planes. 370º vertical rotation possible due to over- center locking mechanism (60 amp busway only). 270º horizontal locking adjustment.

UL and CUL listed

Clear lens included.

"537!99352&!#%

v

v

#,

v

Ž ,OCKING !DJUSTABILITY

PM612cb

60 Amp Busway Adapter

#
,
	v
	v
	Ž ,OCKING
v	!DJUSTABILITY

Available in White, Black, Natural Aluminum or custom finishes.

Closed Back Machined Fixture	Lamp Wattage		Finish
❑ PM612cb - MR16 for 60 Amp Busway	❑ 20	20 Watt 12V MR16	❑ WH	White
	❑ 37	37 Watt 12V MR16	❑ BK	Black
	❑ 42	42 Watt 12V MR16	❑ AL	Natural Aluminum
	❑ 50	50 Watt 12V MR16	❑ PT	Custom Finish
	❑ 71	71 Watt 12V MR16

Ordering Example: PM612cb-50-AL

		RSA Lighting 9660-9700 Topanga Canyon Blvd. Chatsworth, CA 91311
	®	Toll Free: 800-356-3030 • 818-349-3030 • Fax: 818-349-3031
www.rsalighting.com		©2004 RSA Lighting • All Rights Reserved • Specifications are subject to change without notice	www.cooperlighting.com
