MR16 12V

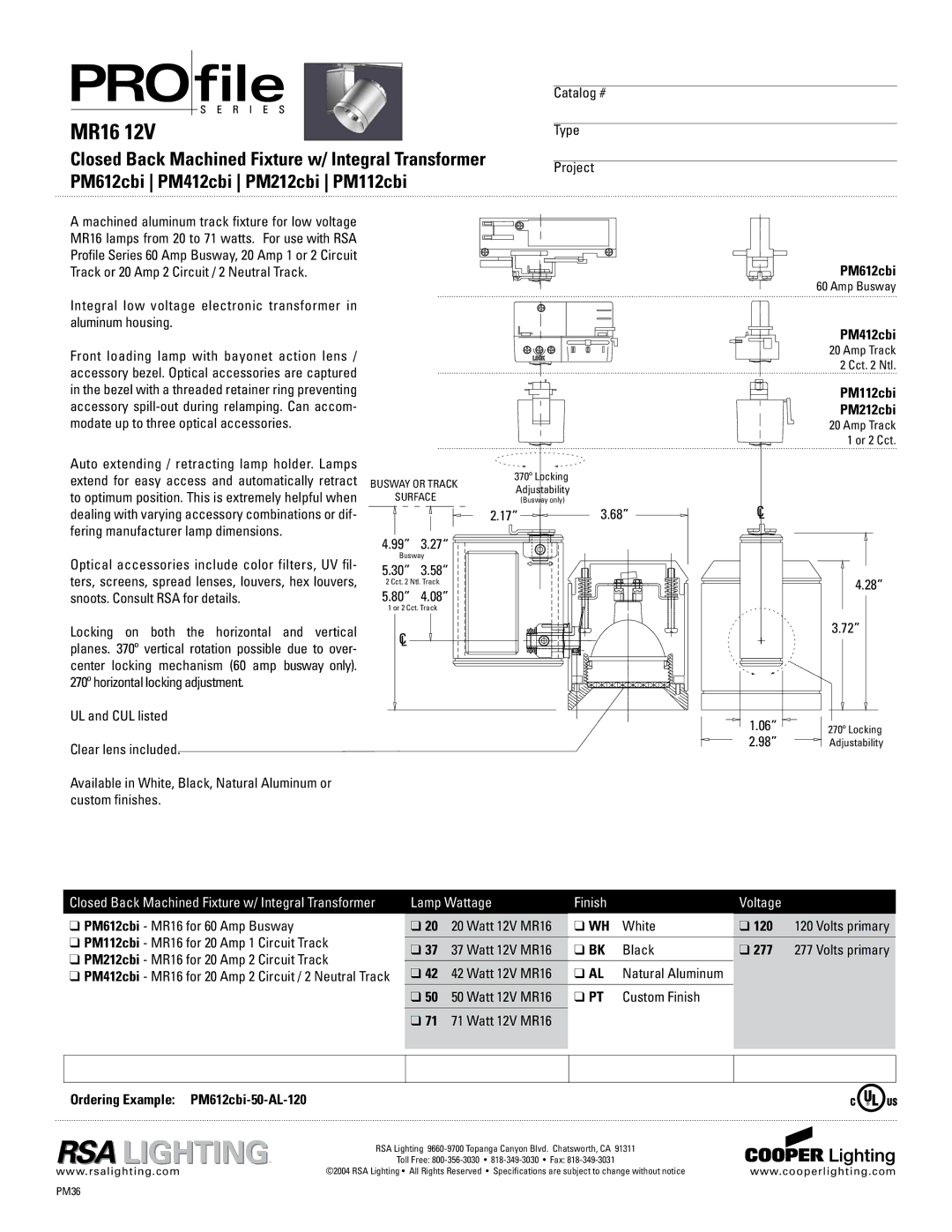

Closed Back Machined Fixture w/ Integral Transformer PM612cbi PM412cbi PM212cbi PM112cbi

A machined aluminum track fixture for low voltage

MR16 lamps from 20 to 71 watts. For use with RSA

Profile Series 60 Amp Busway, 20 Amp 1 or 2 Circuit

Track or 20 Amp 2 Circuit / 2 Neutral Track.

Catalog #

Type

Project

PM612cbi

60 Amp Busway

Integral low voltage electronic transformer in aluminum housing.

Front loading lamp with bayonet action lens / accessory bezel. Optical accessories are captured in the bezel with a threaded retainer ring preventing accessory spill-out during relamping. Can accom- modate up to three optical accessories.

PM412cbi

20 Amp Track

2 Cct. 2 Ntl.

PM112cbi

PM212cbi

20 Amp Track

1 or 2 Cct.

Auto extending / retracting lamp holder. Lamps extend for easy access and automatically retract to optimum position. This is extremely helpful when dealing with varying accessory combinations or dif- fering manufacturer lamp dimensions.

Optical accessories include color filters, UV fil- ters, screens, spread lenses, louvers, hex louvers, snoots. Consult RSA for details.

Locking on both the horizontal and vertical planes. 370º vertical rotation possible due to over- center locking mechanism (60 amp busway only). 270º horizontal locking adjustment.

UL and CUL listed

Clear lens included.

"537!99/2 42!#+		Ž ,OCKING
		!DJUSTABILITY
352&!#%
			"USWAYSONLY
		v	v
v	h
"USWAY
v	v
 #CT .TL 4RACK
v	v
 OR #CT 4RACK
#
,

#
,
	v
	v
v	Ž ,OCKING
v	!DJUSTABILITY

Available in White, Black, Natural Aluminum or custom finishes.

Closed Back Machined Fixture w/ Integral Transformer	Lamp Wattage		Finish		Voltage
❑ PM612cbi - MR16 for 60 Amp Busway	❑ 20	20 Watt 12V MR16	❑ WH	White	❑ 120	120 Volts primary
❑ PM112cbi - MR16 for 20 Amp 1 Circuit Track
	❑ 37	37 Watt 12V MR16	❑ BK	Black	❑ 277	277 Volts primary
❑ PM212cbi - MR16 for 20 Amp 2 Circuit Track
	❑ 42	42 Watt 12V MR16	❑ AL	Natural Aluminum
❑ PM412cbi - MR16 for 20 Amp 2 Circuit / 2 Neutral Track
	❑ 50	50 Watt 12V MR16	❑ PT	Custom Finish
	❑ 71	71 Watt 12V MR16

Ordering Example: PM612cbi-50-AL-120

		RSA Lighting 9660-9700 Topanga Canyon Blvd. Chatsworth, CA 91311
	®	Toll Free: 800-356-3030 • 818-349-3030 • Fax: 818-349-3031
www.rsalighting.com		©2004 RSA Lighting • All Rights Reserved • Specifications are subject to change without notice	www.cooperlighting.com

PM36
