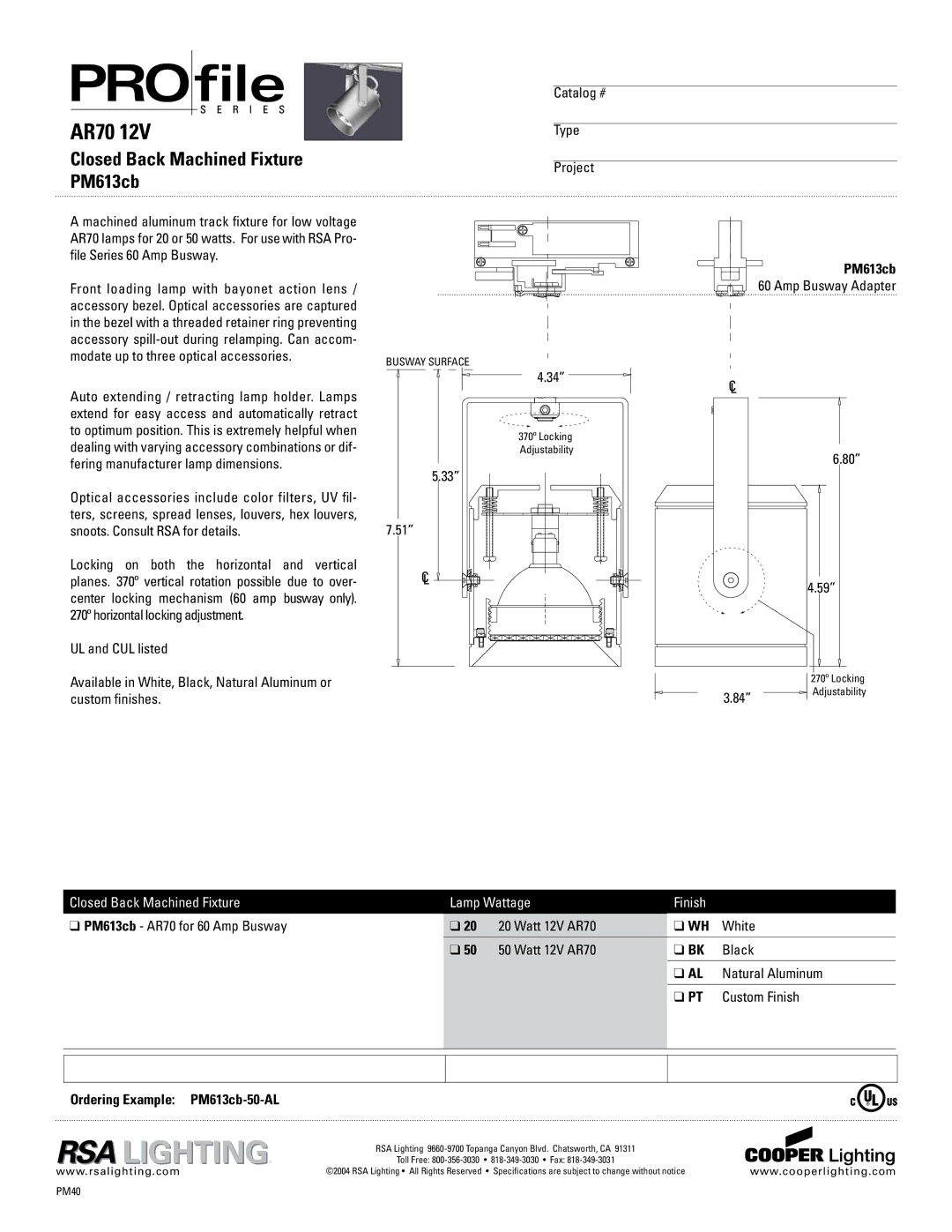

AR70 12V
Closed Back Machined Fixture PM613cb
Catalog #
Type
Project
A machined aluminum track fixture for low voltage AR70 lamps for 20 or 50 watts. For use with RSA Pro- file Series 60 Amp Busway.
Front loading lamp with bayonet action lens / accessory bezel. Optical accessories are captured in the bezel with a threaded retainer ring preventing accessory
Auto extending / retracting lamp holder. Lamps extend for easy access and automatically retract to optimum position. This is extremely helpful when dealing with varying accessory combinations or dif- fering manufacturer lamp dimensions.
Optical accessories include color filters, UV fil- ters, screens, spread lenses, louvers, hex louvers, snoots. Consult RSA for details.
Locking on both the horizontal and vertical planes. 370º vertical rotation possible due to over- center locking mechanism (60 amp busway only). 270º horizontal locking adjustment.
UL and CUL listed
Available in White, Black, Natural Aluminum or custom finishes.
BUSWAY SURFACE
5.33”
7.51”
CL
4.34”
370º Locking Adjustability
PM613cb
60 Amp Busway Adapter
CL
6.80”
4.59”
270º Locking
3.84” Adjustability
Closed Back Machined Fixture | Lamp Wattage | Finish |
| |
|
|
|
|
|
❑ PM613cb - AR70 for 60 Amp Busway | ❑ 20 | 20 Watt 12V AR70 | ❑ WH | White |
|
|
|
|
|
| ❑ 50 | 50 Watt 12V AR70 | ❑ BK | Black |
|
|
|
|
|
|
|
| ❑ AL | Natural Aluminum |
|
|
|
|
|
|
|
| ❑ PT | Custom Finish |
Ordering Example: PM613cb-50-AL
|
|
|
|
| RSA Lighting |
|
|
|
|
|
|
|
| ® | Toll Free: |
|
|
|
|
www.rsalighting.com | ©2004 RSA Lighting • All Rights Reserved • Specifications are subject to change without notice | www.cooperlighting.com | |||||||
PM40
