PM46
#
,
#
,
"537!9/242!#+
352&!#%
,OCKING
!DJUSTABILITY
"USWAYONLY
,OCKING
!DJUSTABILITY
v
v
v
v
v
v
v h
 "USWAY
v v
 #CT.TL4RACK
v v
OR#CT4RACK
PM613obi
60 Amp Busway
Catalog #
Type
Project

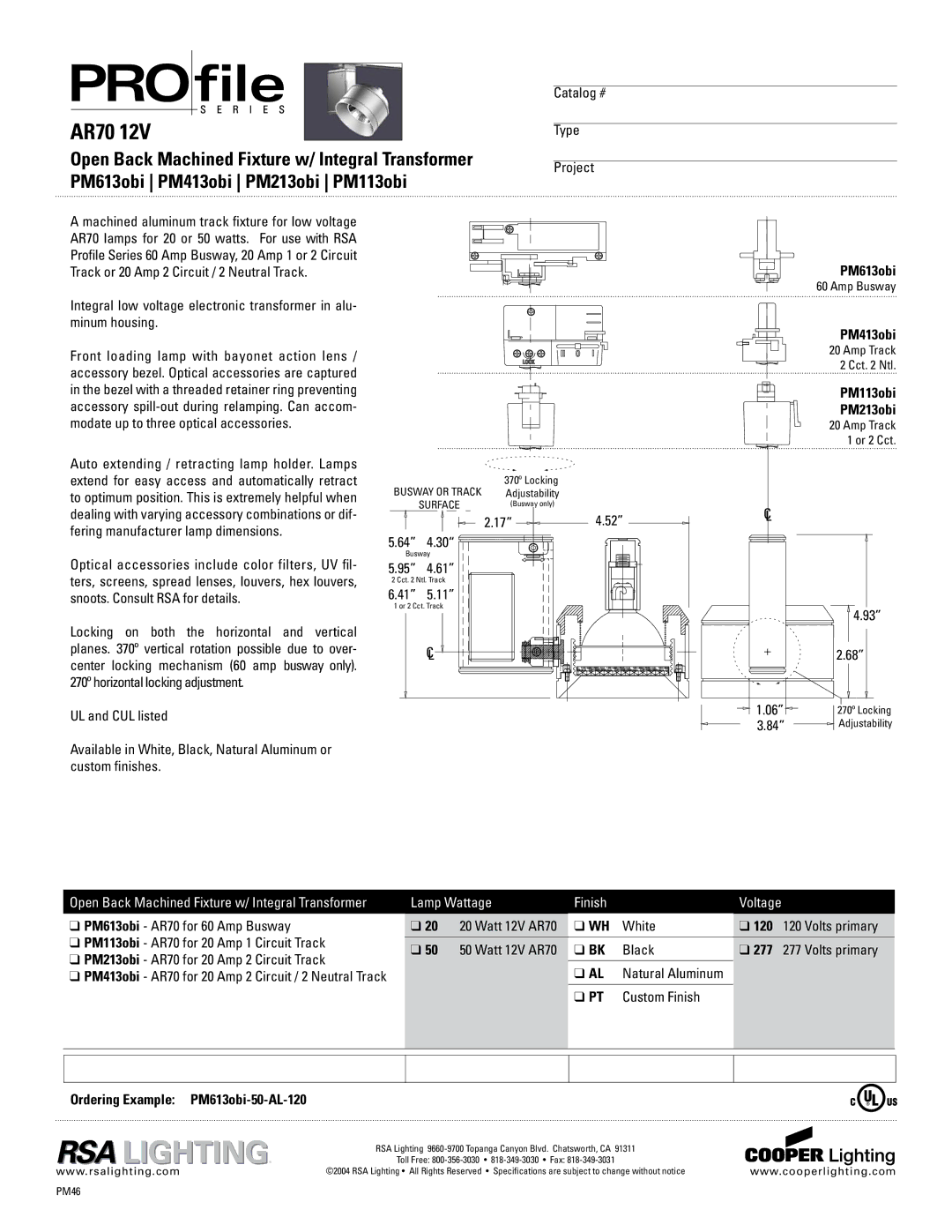

A machined aluminum track fixture for low voltage
AR70 lamps for 20 or 50 watts. For use with RSA
Profile Series 60 Amp Busway, 20 Amp 1 or 2 Circuit
Track or 20 Amp 2 Circuit / 2 Neutral Track.
Integral low voltage electronic transformer in alu-
minum housing.
Front loading lamp with bayonet action lens /
accessory bezel. Optical accessories are captured
in the bezel with a threaded retainer ring preventing
accessory spill-out during relamping. Can accom-
modate up to three optical accessories.
Auto extending / retracting lamp holder. Lamps
extend for easy access and automatically retract
to optimum position. This is extremely helpful when
dealing with varying accessory combinations or dif-
fering manufacturer lamp dimensions.
Optical accessories include color filters, UV fil-
ters, screens, spread lenses, louvers, hex louvers,
snoots. Consult RSA for details.
Locking on both the horizontal and vertical
planes. 370º vertical rotation possible due to over-
center locking mechanism (60 amp busway only).
270º horizontal locking adjustment.
UL and CUL listed
Available in White, Black, Natural Aluminum or
custom finishes.

AR70 12V

Open Back Machined Fixture w/ Integral Transformer

PM613obi | PM413obi | PM213obi | PM113obi

Open Back Machined Fixture w/ Integral Transformer Lamp Wattage Finish Voltage
❑ PM613obi - AR70 for 60 Amp Busway
❑ PM113obi - AR70 for 20 Amp 1 Circuit Track
❑ PM213obi - AR70 for 20 Amp 2 Circuit Track
❑ PM413obi - AR70 for 20 Amp 2 Circuit / 2 Neutral Track
❑ 20 20 Watt 12V AR70 ❑ WH White ❑ 120 120 Volts primary
❑ 50 50 Watt 12V AR70 ❑ BK Black ❑ 277 277 Volts primary
❑ AL Natural Aluminum
❑ PT Custom Finish
Ordering Example: PM613obi-50-AL-120
PM413obi
20 Amp Track
2 Cct. 2 Ntl.
PM113obi
PM213obi
20 Amp Track
1 or 2 Cct.
