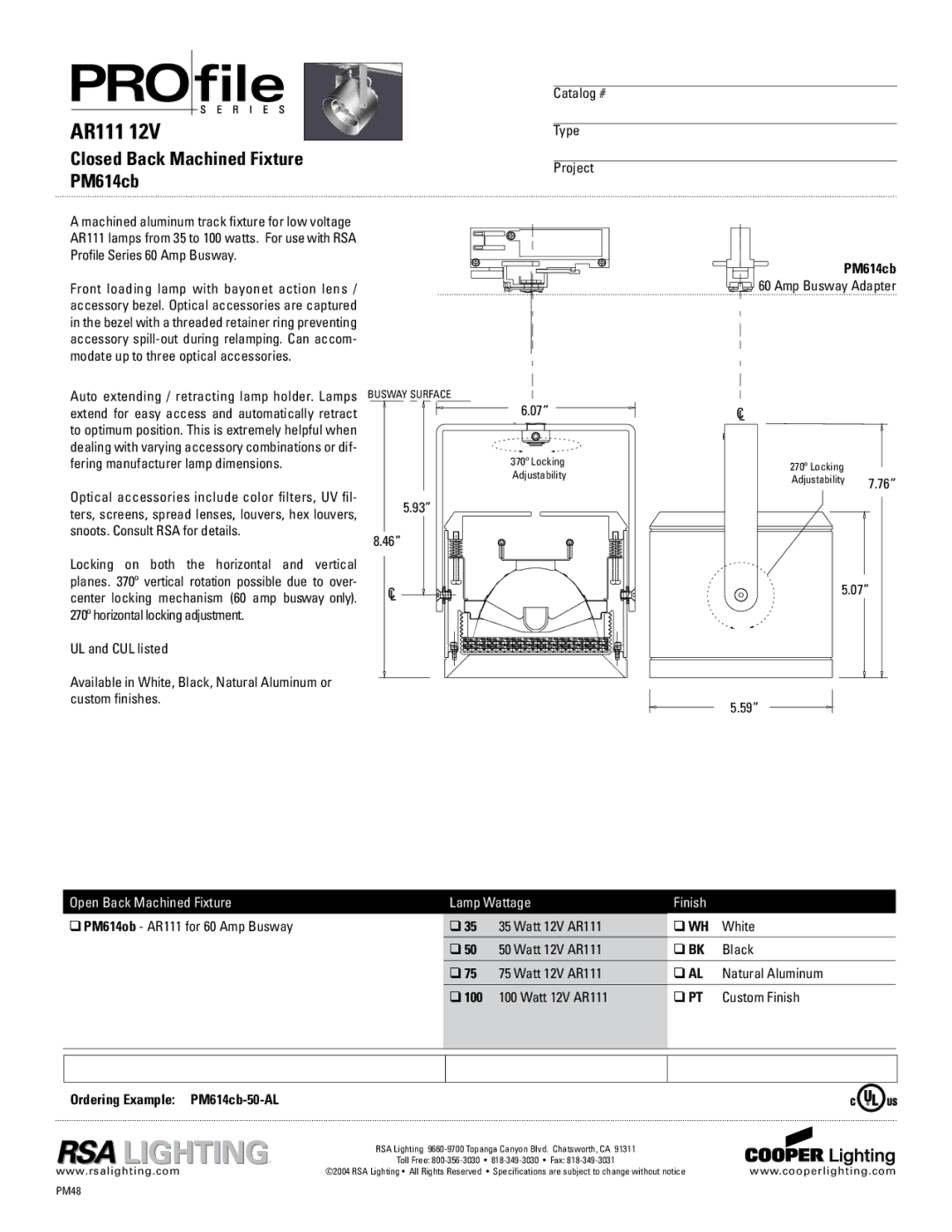

AR111 12V
Closed Back Machined Fixture PM614cb
Catalog #
Type
Project
A machined aluminum track fixture for low voltage AR111 lamps from 35 to 100 watts. For use with RSA Profile Series 60 Amp Busway.
Front loading lamp with bayonet action lens / accessory bezel. Optical accessories are captured in the bezel with a threaded retainer ring preventing accessory
Auto extending / retracting lamp holder. Lamps extend for easy access and automatically retract to optimum position. This is extremely helpful when dealing with varying accessory combinations or dif- fering manufacturer lamp dimensions.
Optical accessories include color filters, UV fil- ters, screens, spread lenses, louvers, hex louvers, snoots. Consult RSA for details.
Locking on both the horizontal and vertical planes. 370º vertical rotation possible due to over- center locking mechanism (60 amp busway only). 270º horizontal locking adjustment.
UL and CUL listed
Available in White, Black, Natural Aluminum or custom finishes.
BUSWAY SURFACE
5.93”
8.46”
CL
PM614cb
60 Amp Busway Adapter
6.07” | C |
| |
| L |
| |
370º Locking | 270º Locking |
| |
Adjustability |
| ||
Adjustability | 7.76” | ||
|
5.07”
5.59”
Open Back Machined Fixture | Lamp Wattage | Finish |
| |
|
|
|
|
|
❑ PM614ob - AR111 for 60 Amp Busway | ❑ 35 | 35 Watt 12V AR111 | ❑ WH | White |
|
|
|
|
|
| ❑ 50 | 50 Watt 12V AR111 | ❑ BK | Black |
|
|
|
|
|
| ❑ 75 | 75 Watt 12V AR111 | ❑ AL | Natural Aluminum |
|
|
|
|
|
| ❑ 100 | 100 Watt 12V AR111 | ❑ PT | Custom Finish |
Ordering Example:
|
|
|
|
| RSA Lighting |
|
|
|
|
|
|
|
| ® | Toll Free: |
|
|
|
|
www.rsalighting.com | ©2004 RSA Lighting • All Rights Reserved • Specifications are subject to change without notice | www.cooperlighting.com | |||||||
PM48
