PM62
v
#
,
#
,
"537!9/242!#+
352&!#%
,OCKING
!DJUSTABILITY
"USWAYONLY
,OCKING
!DJUSTABILITY
v
v
v
v
v
v h
 "USWAY
v v
 #CT.TL4RACK
v v
OR#CT4RACK
PM615obi
60 Amp Busway
Catalog #
Type
Project

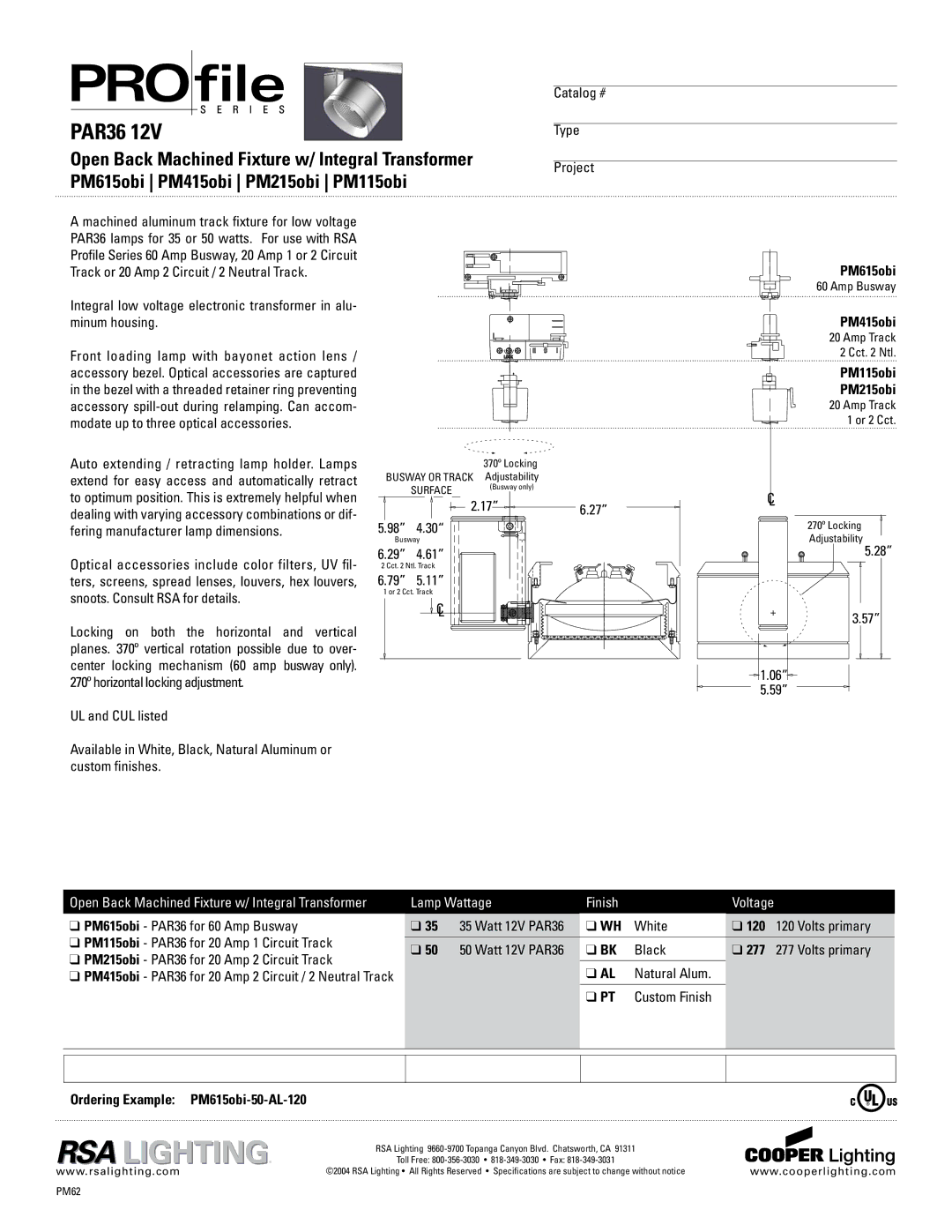

A machined aluminum track fixture for low voltage
PAR36 lamps for 35 or 50 watts. For use with RSA
Profile Series 60 Amp Busway, 20 Amp 1 or 2 Circuit
Track or 20 Amp 2 Circuit / 2 Neutral Track.
Integral low voltage electronic transformer in alu-
minum housing.
Front loading lamp with bayonet action lens /
accessory bezel. Optical accessories are captured
in the bezel with a threaded retainer ring preventing
accessory spill-out during relamping. Can accom-
modate up to three optical accessories.
Auto extending / retracting lamp holder. Lamps
extend for easy access and automatically retract
to optimum position. This is extremely helpful when
dealing with varying accessory combinations or dif-
fering manufacturer lamp dimensions.
Optical accessories include color filters, UV fil-
ters, screens, spread lenses, louvers, hex louvers,
snoots. Consult RSA for details.
Locking on both the horizontal and vertical
planes. 370º vertical rotation possible due to over-
center locking mechanism (60 amp busway only).
270º horizontal locking adjustment.
UL and CUL listed
Available in White, Black, Natural Aluminum or
custom finishes.

PAR36 12V

Open Back Machined Fixture w/ Integral Transformer

PM615obi | PM415obi | PM215obi | PM115obi

Ordering Example: PM615obi-50-AL-120
PM415obi
20 Amp Track
2 Cct. 2 Ntl.
PM115obi
PM215obi
20 Amp Track
1 or 2 Cct.
Open Back Machined Fixture w/ Integral Transformer Lamp Wattage Finish Voltage
❑ PM615obi - PAR36 for 60 Amp Busway
❑ PM115obi - PAR36 for 20 Amp 1 Circuit Track
❑ PM215obi - PAR36 for 20 Amp 2 Circuit Track
❑ PM415obi - PAR36 for 20 Amp 2 Circuit / 2 Neutral Track
❑ 35 35 Watt 12V PAR36 ❑ WH White ❑ 120 120 Volts primary
❑ 50 50 Watt 12V PAR36 ❑ BK Black ❑ 277 277 Volts primary
❑ AL Natural Alum.
❑ PT Custom Finish
