PAR20 Metal Halide

Open Back Machined Fixture w/ Integral Ballast PM632ob PM432ob PM232ob PM132ob

A machined aluminum track fixture for PAR20MH lamps 20 or 39 watts. For use with RSA Profile Series 60 Amp Busway, 20 Amp 1 or 2 Circuit Track or 20 Amp 2 Circuit / 2 Neutral Track.

Integral electronic metal halide ballast in aluminum housing. Ballast by Aromat®.

Catalog #

Type

Project

PM632ob

60 Amp Busway

PM432ob

20 Amp Track

2 Cct. 2 Ntl.

Front loading lamp with bayonet action lens / accessory bezel. Optical accessories are captured in the bezel with a threaded retainer ring preventing accessory spill-out during relamping. Can accom- modate up to three optical accessories.

Auto extending / retracting lamp holder. Lamps extend for easy access and automatically retract to optimum position. This is extremely helpful when dealing with varying accessory combinations or dif- fering manufacturer lamp dimensions.

Optical accessories include color filters, UV fil- ters, screens, spread lenses, louvers, hex louvers, snoots. Consult RSA for details.

Locking on both the horizontal and vertical planes. 370º vertical rotation possible due to over- center locking mechanism (60 amp busway only). 270º horizontal locking adjustment.

UL and CUL listed

"537!99/2 42!#+

Ž ,OCKING



352&!#%

!DJUSTABILITY



v

"USWAYSONLY

v



v h





"USWAY





v v





 #CT .TL 4RACK





v v





 OR #CT 4RACK





#





,





PM132ob

PM232ob

20 Amp Track

1 or 2 Cct.

#

Ž ,OCKING

!DJUSTABILITY

,





v



v

v



v



Available in White, Black, Natural Aluminum or custom finishes.

Open Back Machined Fixture w/ Integral Ballast

Lamp Wattage

Finish



Voltage

















PM632ob - PAR20MH for 60 Amp Busway

20

20 Watt PAR20MH

WH

White

120

120 Volts primary

PM132ob - PAR20MH for 20 Amp 1 Circuit Track













39

39 Watt PAR20MH

BK

Black

277

277 Volts primary

PM232ob - PAR20MH for 20 Amp 2 Circuit Track

















AL

Natural Alum.





PM432ob - PAR20MH for 20 Amp 2 Circuit / 2 Neutral Track















PT

Custom Finish





Ordering Example: PM632ob-39-AL-120











RSA Lighting 9660-9700 Topanga Canyon Blvd. Chatsworth, CA 91311

















®

Toll Free: 800-356-3030818-349-3030 • Fax: 818-349-3031









www.rsalighting.com

©2004 RSA Lighting • All Rights Reserved • Specifications are subject to change without notice

www.cooperlighting.com

PM94

Page 1

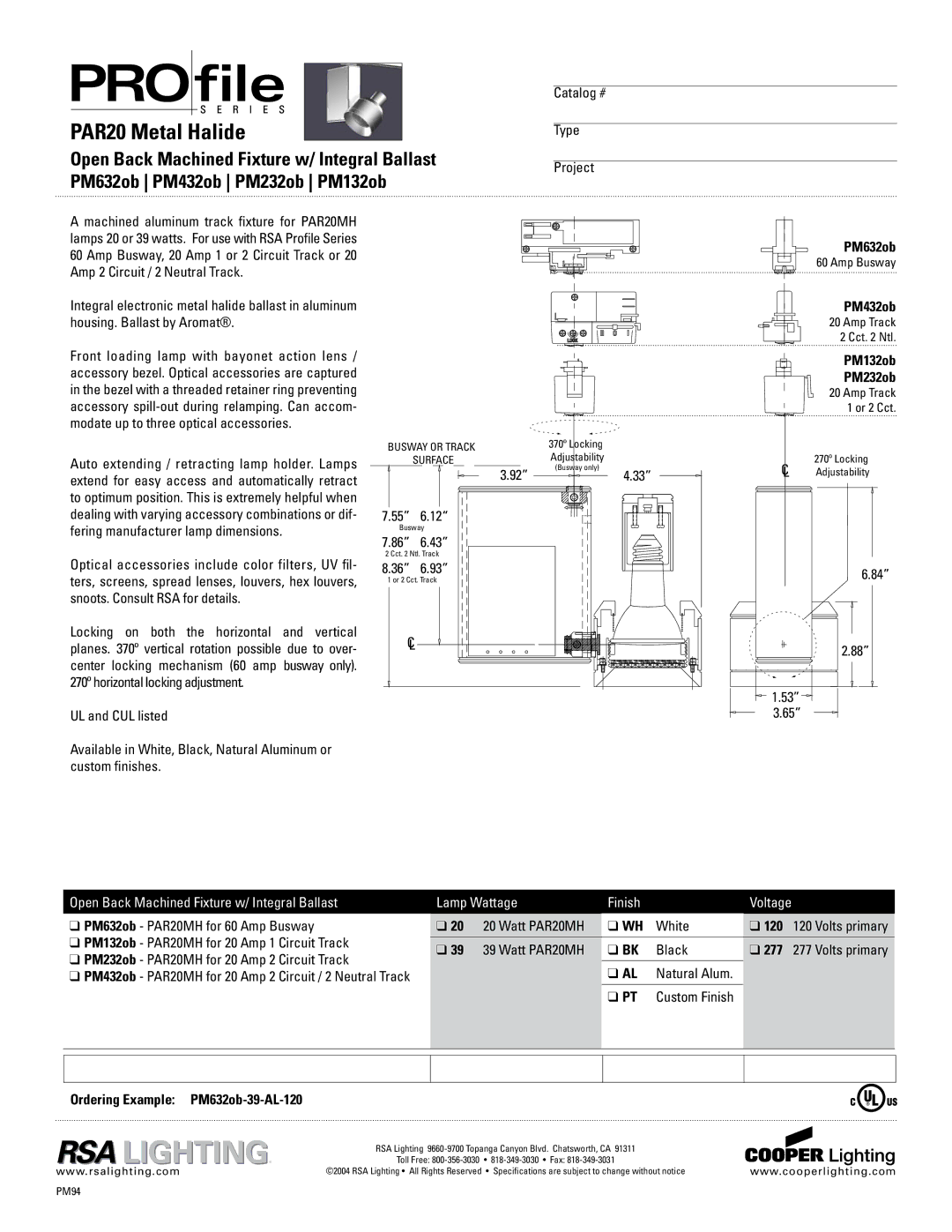

Image 1
