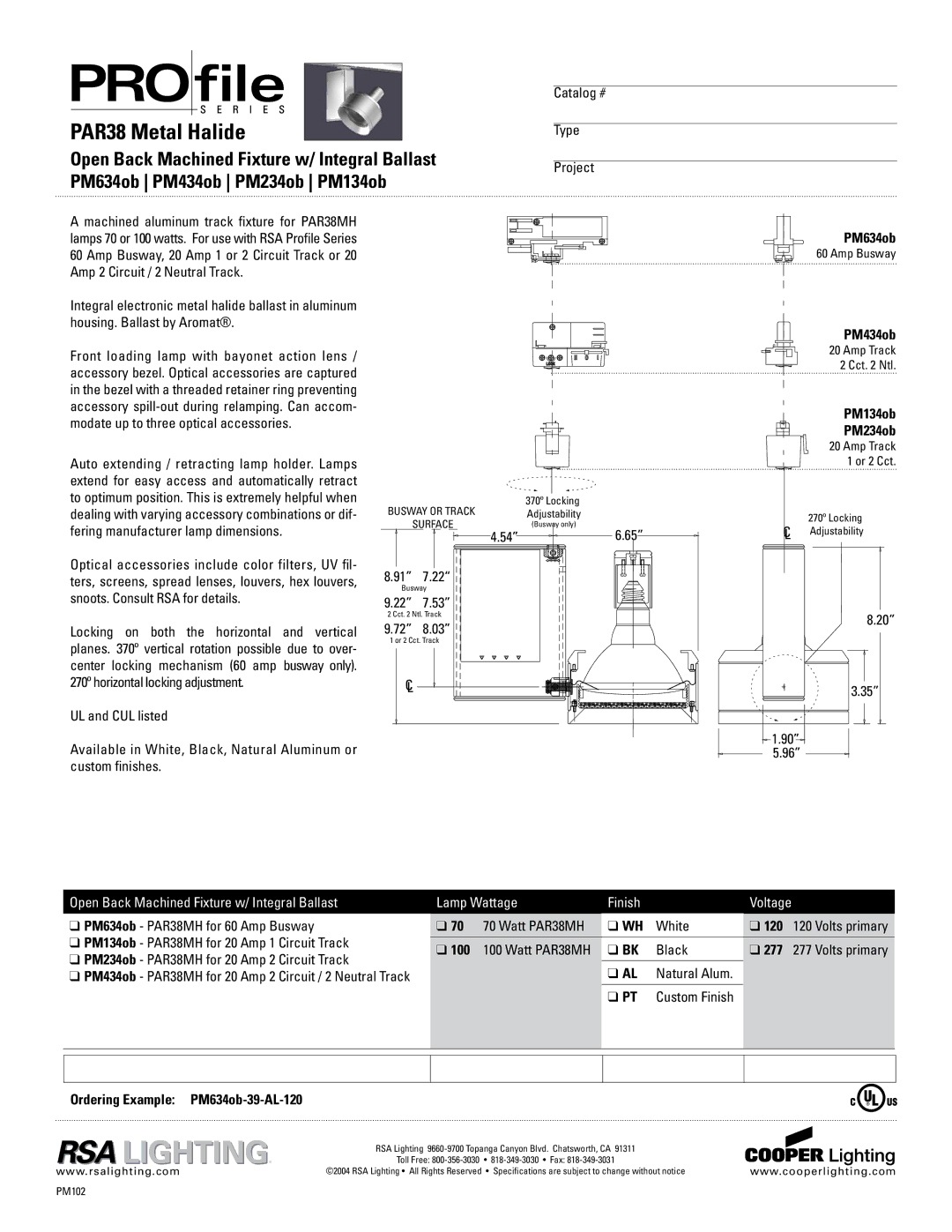

Catalog #

PAR38 Metal Halide

Type

Open Back Machined Fixture w/ Integral Ballast

Project

PM634ob PM434ob PM234ob PM134ob



A machined aluminum track fixture for PAR38MH



lamps 70 or 100 watts. For use with RSA Profile Series

PM634ob

60 Amp Busway, 20 Amp 1 or 2 Circuit Track or 20

60 Amp Busway

Amp 2 Circuit / 2 Neutral Track.



Integral electronic metal halide ballast in aluminum











housing. Ballast by Aromat®.













PM434ob























Front loading lamp with bayonet action lens /









20 Amp Track









2 Cct. 2 Ntl.

accessory bezel. Optical accessories are captured



















in the bezel with a threaded retainer ring preventing











accessory spill-out during relamping. Can accom-









PM134ob

modate up to three optical accessories.





















PM234ob













































20 Amp Track

Auto extending / retracting lamp holder. Lamps









1 or 2 Cct.

extend for easy access and automatically retract











to optimum position. This is extremely helpful when

"537!99/2 42!#+

Ž ,OCKING





dealing with varying accessory combinations or dif-

!DJUSTABILITY



Ž ,OCKING

352&!#%



fering manufacturer lamp dimensions.





"USWAYSONLY

#

!DJUSTABILITY







v

v

















,



Optical accessories include color filters, UV fil-

v

h







ters, screens, spread lenses, louvers, hex louvers,







"USWAY







snoots. Consult RSA for details.















v

v





















 #CT .TL 4RACK





v

Locking

on

both

the

horizontal

and

vertical

v

v











planes. 370º vertical rotation possible due to over-

 OR #CT 4RACK

















center locking mechanism (60 amp busway only).











270º horizontal locking adjustment.





#







v















,







UL and CUL listed



















Available in White, Black, Natural Aluminum or







v









v



custom finishes.



















Open Back Machined Fixture w/ Integral Ballast

Lamp Wattage

Finish



Voltage

















❑ PM634ob - PAR38MH for 60 Amp Busway

❑ 70

70 Watt PAR38MH

❑ WH

White

❑ 120

120 Volts primary

❑ PM134ob - PAR38MH for 20 Amp 1 Circuit Track













❑ 100

100 Watt PAR38MH

❑ BK

Black

❑ 277

277 Volts primary

❑ PM234ob - PAR38MH for 20 Amp 2 Circuit Track

















❑ AL

Natural Alum.





❑ PM434ob - PAR38MH for 20 Amp 2 Circuit / 2 Neutral Track















❑ PT

Custom Finish





Ordering Example: PM634ob-39-AL-120











RSA Lighting 9660-9700 Topanga Canyon Blvd. Chatsworth, CA 91311

















®

Toll Free: 800-356-3030 • 818-349-3030 • Fax: 818-349-3031









www.rsalighting.com

©2004 RSA Lighting • All Rights Reserved • Specifications are subject to change without notice

www.cooperlighting.com

PM102

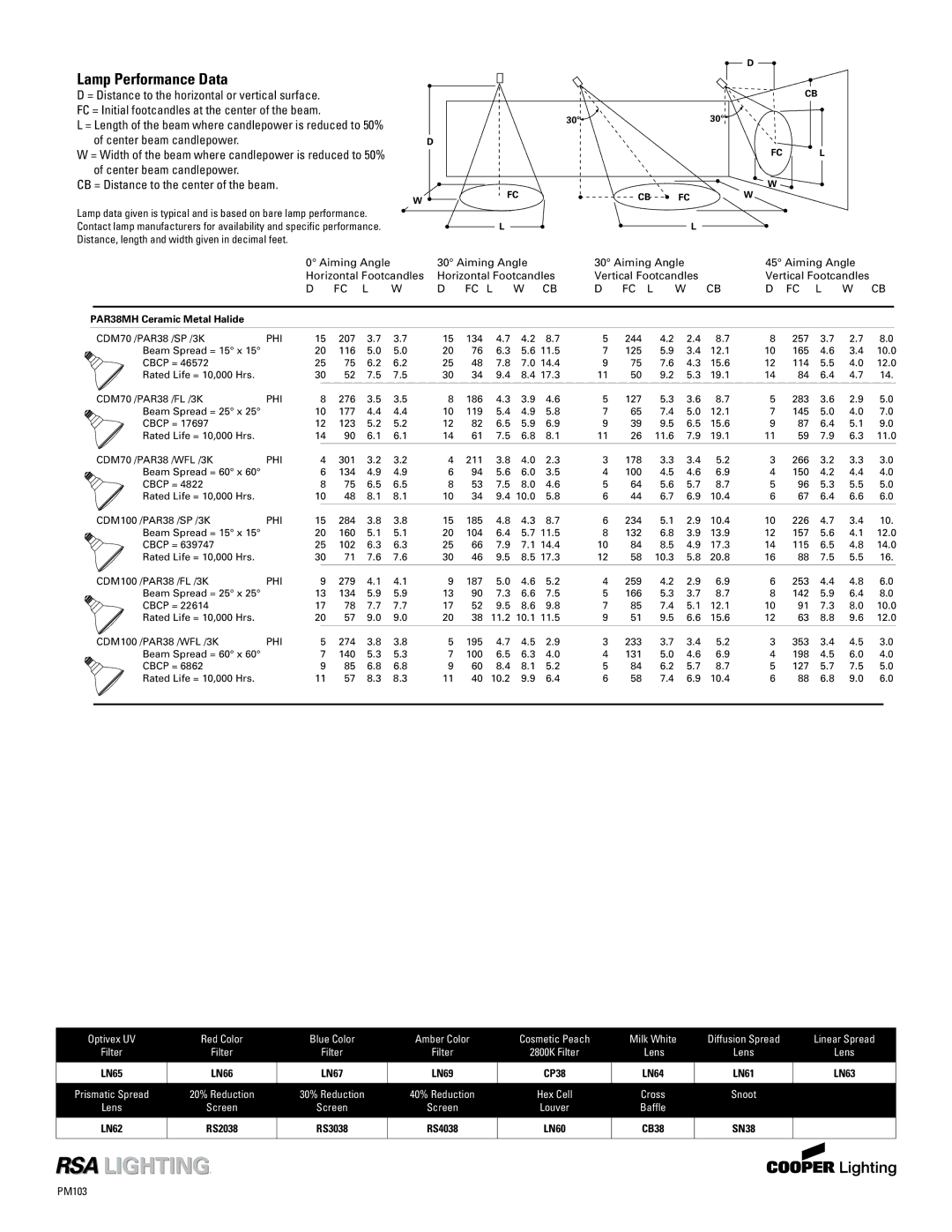

Page 1 Page 2
