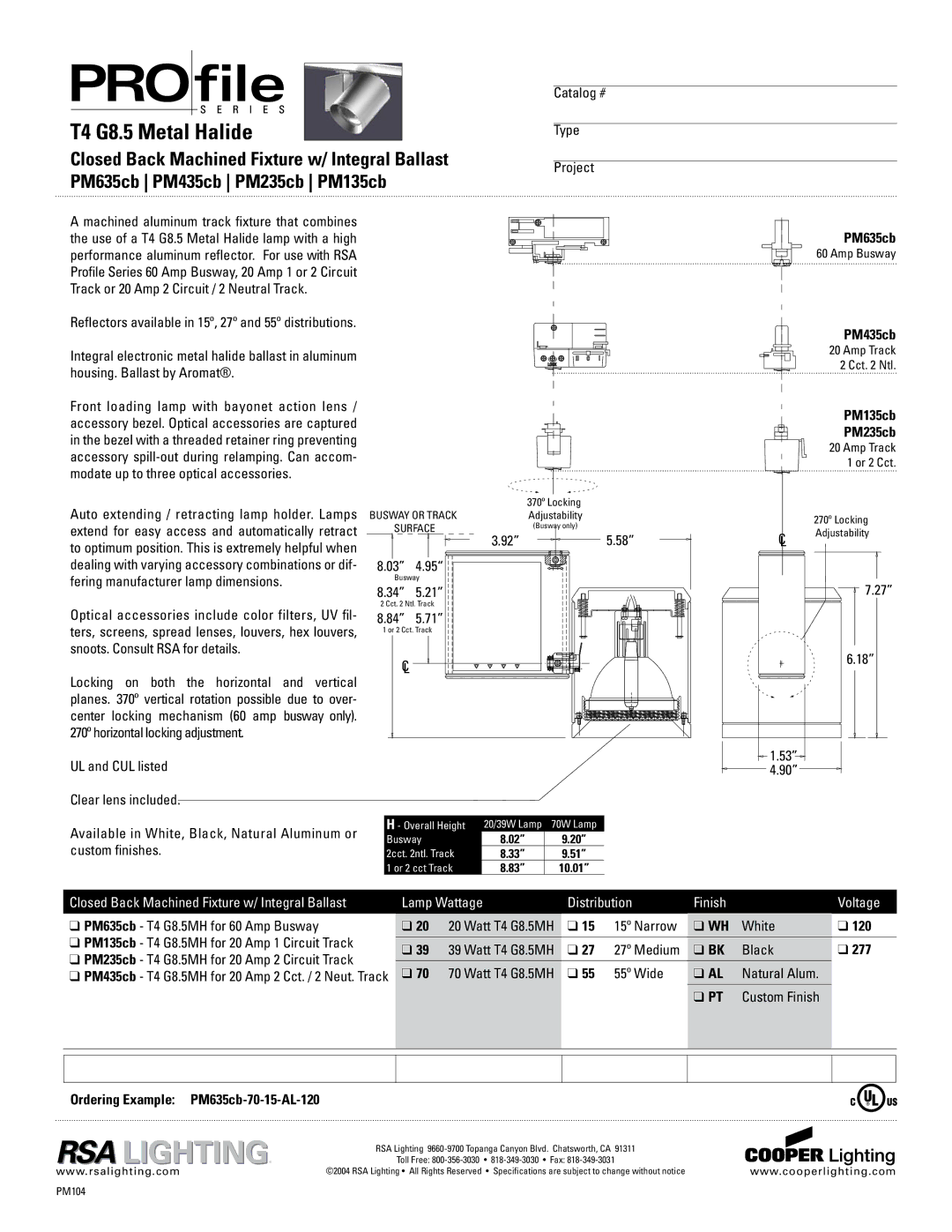

T4 G8.5 Metal Halide

Closed Back Machined Fixture w/ Integral Ballast PM635cb PM435cb PM235cb PM135cb

A machined aluminum track fixture that combines the use of a T4 G8.5 Metal Halide lamp with a high performance aluminum reflector. For use with RSA Profile Series 60 Amp Busway, 20 Amp 1 or 2 Circuit Track or 20 Amp 2 Circuit / 2 Neutral Track.

Catalog #

Type

Project

PM635cb

60 Amp Busway

Reflectors available in 15º, 27º and 55º distributions.

Integral electronic metal halide ballast in aluminum housing. Ballast by Aromat®.

Front loading lamp with bayonet action lens / accessory bezel. Optical accessories are captured in the bezel with a threaded retainer ring preventing accessory spill-out during relamping. Can accom- modate up to three optical accessories.

Auto extending / retracting lamp holder. Lamps extend for easy access and automatically retract to optimum position. This is extremely helpful when dealing with varying accessory combinations or dif- fering manufacturer lamp dimensions.

Optical accessories include color filters, UV fil- ters, screens, spread lenses, louvers, hex louvers, snoots. Consult RSA for details.

Locking on both the horizontal and vertical planes. 370º vertical rotation possible due to over- center locking mechanism (60 amp busway only). 270º horizontal locking adjustment.

UL and CUL listed

"537!99/2 42!#+	,OCKING
"537!99/2 42!#+	!DJUSTABILITY
352&!#%	"USWAYSONLY
v	v
v h
"USWAY
v v
#CT .TL 4RACK
v v
OR #CT 4RACK
#
,

PM435cb

20 Amp Track

2 Cct. 2 Ntl.

PM135cb

PM235cb

20 Amp Track

1 or 2 Cct.

,OCKING

#	!DJUSTABILITY
,
	v
	v
v
v

Clear lens included.

Available in White, Black, Natural Aluminum or custom finishes.

H - Overall Height	20/39W Lamp	70W Lamp
Busway	8.02”	9.20”
2cct. 2ntl. Track	8.33”	9.51”
1 or 2 cct Track	8.83”	10.01”

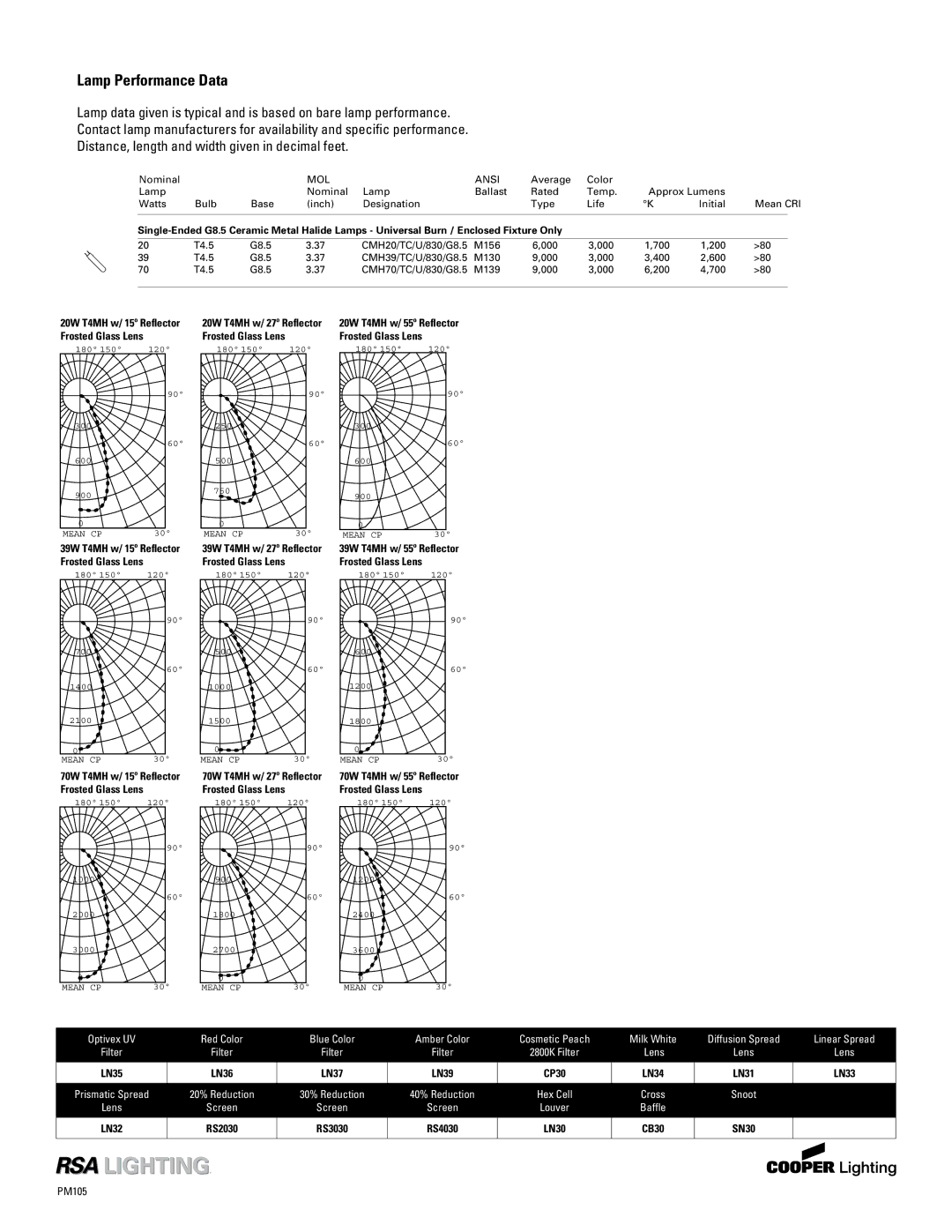

Closed Back Machined Fixture w/ Integral Ballast	Lamp Wattage		Distribution		Finish		Voltage

❑ PM635cb - T4 G8.5MH for 60 Amp Busway	❑ 20	20 Watt T4 G8.5MH	❑ 15	15º Narrow	❑ WH	White	❑ 120
❑ PM135cb - T4 G8.5MH for 20 Amp 1 Circuit Track
❑ PM135cb - T4 G8.5MH for 20 Amp 1 Circuit Track	❑ 39	39 Watt T4 G8.5MH	❑ 27	27º Medium	❑ BK	Black	❑ 277
❑ PM235cb - T4 G8.5MH for 20 Amp 2 Circuit Track	❑ 39	39 Watt T4 G8.5MH	❑ 27	27º Medium	❑ BK	Black	❑ 277

	❑ 70	70 Watt T4 G8.5MH	❑ 55	55º Wide	❑ AL	Natural Alum.
❑ PM435cb - T4 G8.5MH for 20 Amp 2 Cct. / 2 Neut. Track	❑ 70	70 Watt T4 G8.5MH	❑ 55	55º Wide	❑ AL	Natural Alum.
					❑ PT	Custom Finish

Ordering Example: PM635cb-70-15-AL-120
