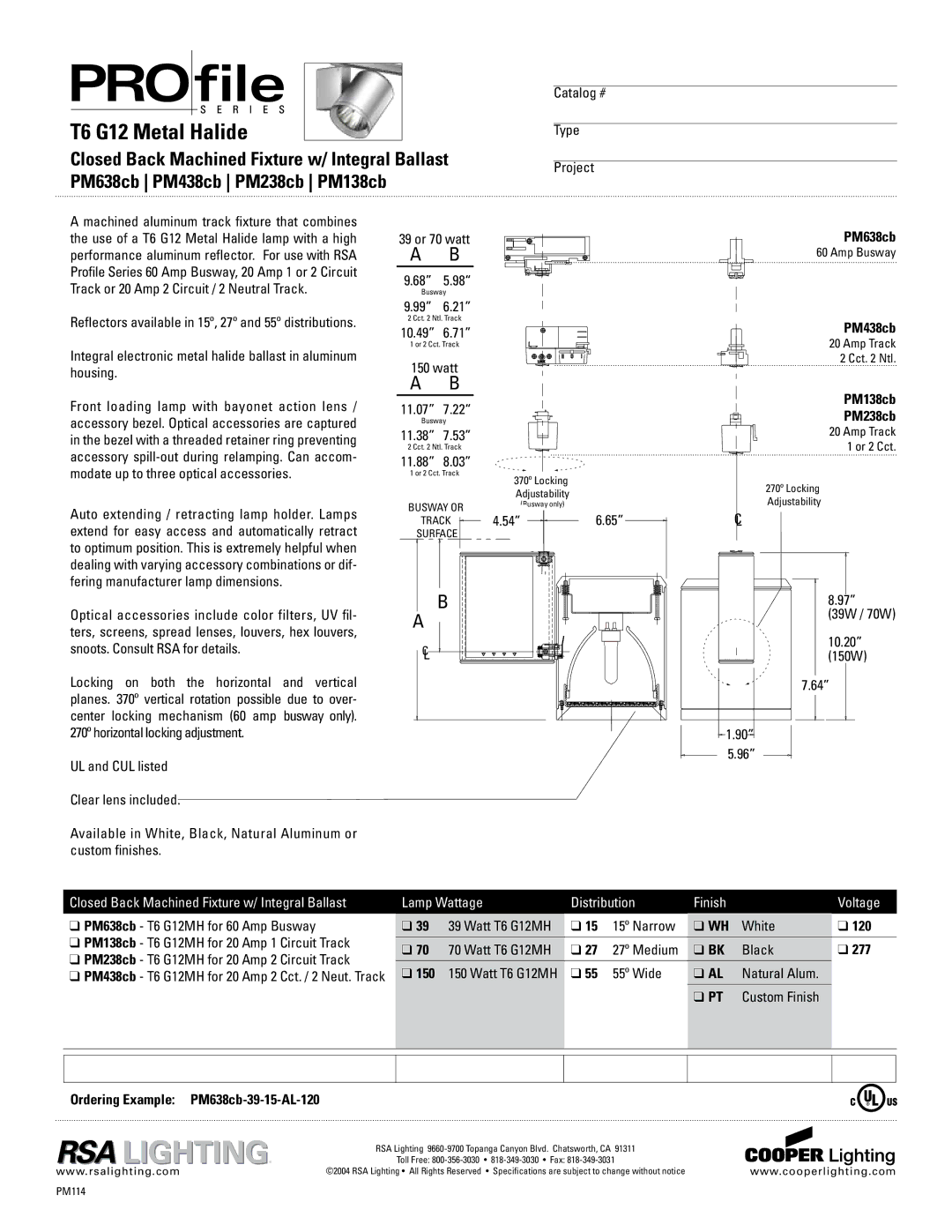

Cooper Lighting dimensions T6 G12 Metal Halide, PM638cb PM438cb PM238cb PM138cb

			Catalog #
T6 G12 Metal Halide			Type
Closed Back Machined Fixture w/ Integral Ballast			Project
PM638cb PM438cb PM238cb PM138cb
A machined aluminum track fixture that combines					PM638cb
the use of a T6 G12 Metal Halide lamp with a high	39 or 70 watt
performance aluminum reflector. For use with RSA	A	B			60 Amp Busway
Profile Series 60 Amp Busway, 20 Amp 1 or 2 Circuit	9.68”	5.98“
Track or 20 Amp 2 Circuit / 2 Neutral Track.
	Busway
	9.99”	6.21”
Reflectors available in 15º, 27º and 55º distributions.	2 Cct. 2 Ntl. Track				PM438cb
	10.49”	6.71”
Integral electronic metal halide ballast in aluminum	1 or 2 Cct. Track				20 Amp Track
	150 watt				2 Cct. 2 Ntl.
housing.
	A	B
					PM138cb
Front loading lamp with bayonet action lens /	11.07”	7.22“
					PM238cb
accessory bezel. Optical accessories are captured	Busway
	11.38”	7.53”			20 Amp Track
in the bezel with a threaded retainer ring preventing
	2 Cct. 2 Ntl. Track				1 or 2 Cct.
accessory spill-out during relamping. Can accom-
	11.88”	8.03”
modate up to three optical accessories.	1 or 2 Cct. Track		370º Locking		270º Locking
			Adjustability
					Adjustability
Auto extending / retracting lamp holder. Lamps	BUSWAY OR		(Busway only)
			4.54”	6.65”	C
	TRACK
extend for easy access and automatically retract	SURFACE				L
to optimum position. This is extremely helpful when
dealing with varying accessory combinations or dif-
fering manufacturer lamp dimensions.
		B			8.97”
Optical accessories include color filters, UV fil-	A				(39W / 70W)
ters, screens, spread lenses, louvers, hex louvers,
					10.20”
snoots. Consult RSA for details.	C
	L				(150W)
Locking on both the horizontal and vertical					7.64”
planes. 370º vertical rotation possible due to over-
center locking mechanism (60 amp busway only).
270º horizontal locking adjustment.					1.90”
UL and CUL listed					5.96”

Clear lens included.

Available in White, Black, Natural Aluminum or custom finishes.

Closed Back Machined Fixture w/ Integral Ballast	Lamp Wattage		Distribution		Finish		Voltage
❑ PM638cb - T6 G12MH for 60 Amp Busway	❑ 39	39 Watt T6 G12MH	❑ 15	15º Narrow	❑ WH	White	❑ 120
❑ PM138cb - T6 G12MH for 20 Amp 1 Circuit Track
	❑ 70	70 Watt T6 G12MH	❑ 27	27º Medium	❑ BK	Black	❑ 277
❑ PM238cb - T6 G12MH for 20 Amp 2 Circuit Track
	❑ 150	150 Watt T6 G12MH	❑ 55	55º Wide	❑ AL	Natural Alum.
❑ PM438cb - T6 G12MH for 20 Amp 2 Cct. / 2 Neut. Track
					❑ PT	Custom Finish

Ordering Example: PM638cb-39-15-AL-120

		RSA Lighting 9660-9700 Topanga Canyon Blvd. Chatsworth, CA 91311
	®	Toll Free: 800-356-3030 • 818-349-3030  • Fax: 818-349-3031
www.rsalighting.com		©2004 RSA Lighting • All Rights Reserved • Specifications are subject to change without notice	www.cooperlighting.com

PM114
