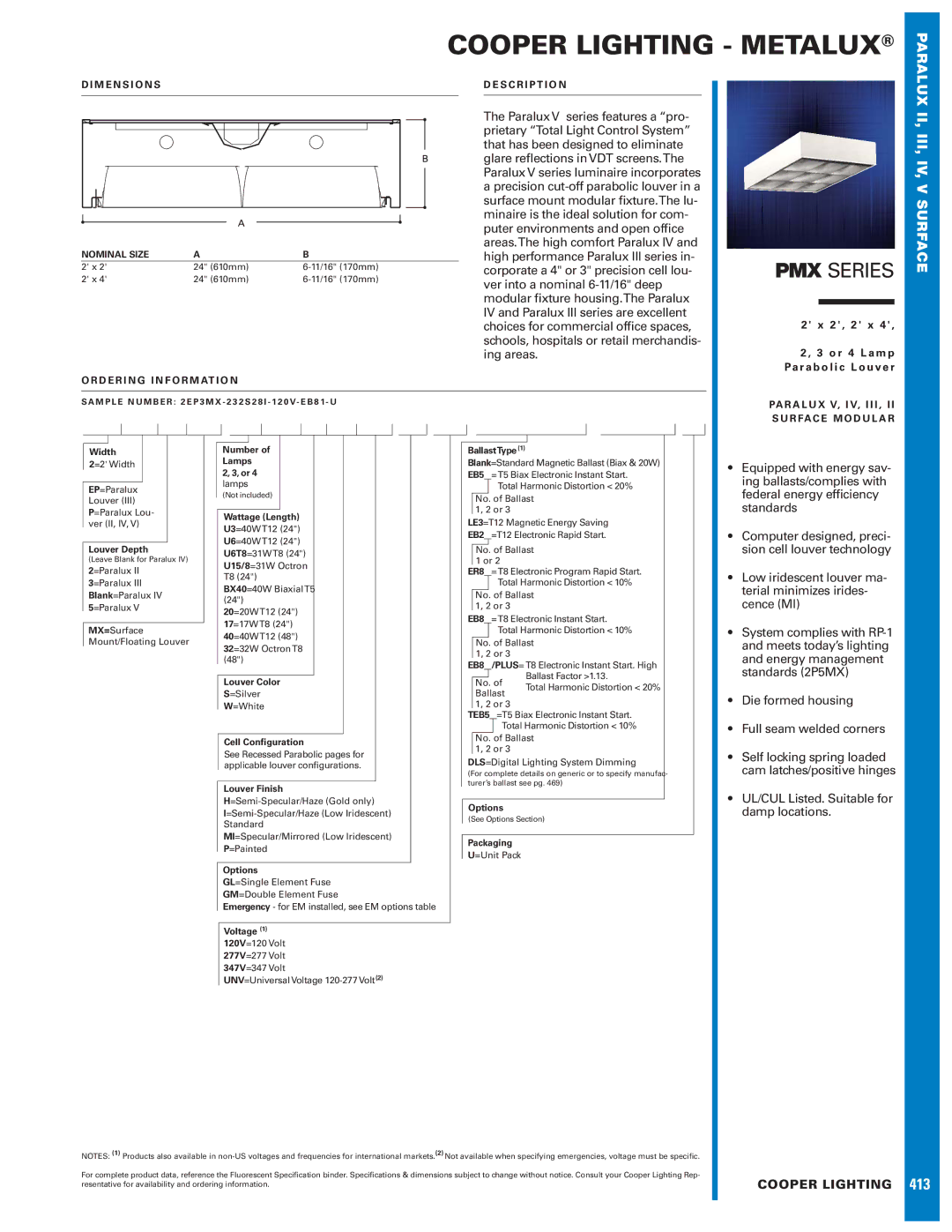

Cooper Lighting PMX Series dimensions R 4 L a m p Pa ra b o l i c L o u ve r, Width, Louver Depth

COOPER LIGHTING - METALUX®

PARALUX

D I M E N S I O N S

NOMINAL SIZE	A	B
2' x 2'	24" (610mm)	6-11/16" (170mm)
2' x 4'	24" (610mm)	6-11/16" (170mm)

O R D E R I N G I N F O R M AT I O N

D E S C R I P T I O N

The Paralux V series features a “pro- prietary “Total Light Control System” that has been designed to eliminate glare reflections in VDT screens.The Paralux V series luminaire incorporates a precision cut-off parabolic louver in a surface mount modular fixture.The lu- minaire is the ideal solution for com- puter environments and open office areas.The high comfort Paralux IV and high performance Paralux III series in- corporate a 4" or 3" precision cell lou- ver into a nominal 6-11/16" deep modular fixture housing.The Paralux IV and Paralux III series are excellent choices for commercial office spaces, schools, hospitals or retail merchandis- ing areas.

PMX SERIES

2 ' x 2 ' , 2 ' x 4 ' ,

2 , 3 o r 4 L a m p Pa ra b o l i c L o u ve r

II, III, IV, V SURFACE

S A M P L E N U M B E R : 2 E P 3 M X - 2 3 2 S 2 8 I - 1 2 0 V- E B 8 1- U

PA R A L U X V, I V, I I I , I I S U R FAC E M O D U L A R

Width

2=2' Width

EP=Paralux

Louver (III)

P=Paralux Lou- ver (II, IV, V)

Louver Depth

(Leave Blank for Paralux IV)

2=Paralux II

3=Paralux III

Blank=Paralux IV

5=Paralux V

MX=Surface Mount/Floating Louver

Number of Lamps

2, 3, or 4 lamps

(Not included)

Wattage (Length)

U3=40WT12 (24")

U6=40WT12 (24") U6T8=31WT8 (24") U15/8=31W Octron T8 (24")

BX40=40W BiaxialT5 (24")

20=20WT12 (24")

17=17WT8 (24")

40=40WT12 (48")

32=32W OctronT8 (48")

Louver Color

S=Silver

W=White

Cell Configuration

See Recessed Parabolic pages for applicable louver configurations.

Louver Finish

H=Semi-Specular/Haze (Gold only)

I=Semi-Specular/Haze (Low Iridescent) Standard

MI=Specular/Mirrored (Low Iridescent) P=Painted

Options

GL=Single Element Fuse

GM=Double Element Fuse

Emergency - for EM installed, see EM options table

Voltage (1)

120V=120 Volt

277V=277 Volt

347V=347 Volt

UNV=Universal Voltage 120-277 Volt(2)

BallastType (1)

Blank=Standard Magnetic Ballast (Biax & 20W) EB5 =T5 Biax Electronic Instant Start.

Total Harmonic Distortion < 20%

No. of Ballast 1, 2 or 3

LE3=T12 Magnetic Energy Saving EB2 =T12 Electronic Rapid Start.

No. of Ballast 1 or 2

ER8 =T8 Electronic Program Rapid Start. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB8 =T8 Electronic Instant Start. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB8 /PLUS= T8 Electronic Instant Start. High

				Ballast Factor >1.13.
	No. of			Total Harmonic Distortion < 20%
	Ballast
	1, 2 or 3
TEB5 =T5 Biax Electronic Instant Start.
			Total Harmonic Distortion < 10%
	No.	of Ballast
	1, 2 or 3

DLS=Digital Lighting System Dimming

(For complete details on generic or to specify manufac- turer’s ballast see pg. 469)

Options

(See Options Section)

Packaging

U=Unit Pack

•Equipped with energy sav- ing ballasts/complies with federal energy efficiency standards

•Computer designed, preci- sion cell louver technology

•Low iridescent louver ma- terial minimizes irides- cence (MI)

•System complies with RP-1 and meets today’s lighting and energy management standards (2P5MX)

•Die formed housing

•Full seam welded corners

•Self locking spring loaded cam latches/positive hinges

•UL/CUL Listed. Suitable for damp locations.

NOTES: (1) Products also available in non-US voltages and frequencies for international markets.(2) Not available when specifying emergencies, voltage must be specific.
For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting Rep-	COOPER LIGHTING
resentative for availability and ordering information.
