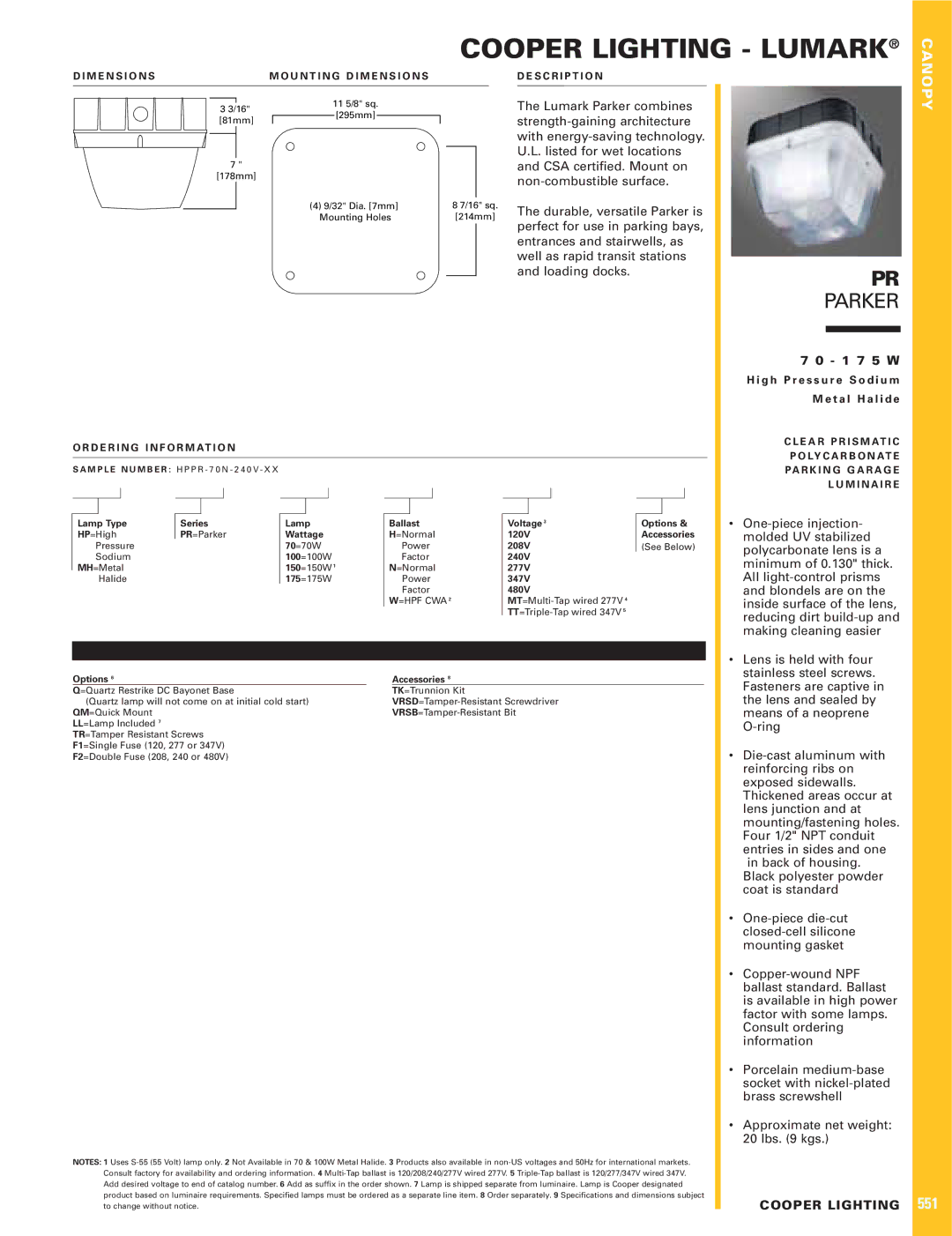

Cooper Lighting PR Parker dimensions Cooper Lighting - Lumark, Canopy

COOPER LIGHTING - LUMARK®

D I M E N S I O N SM O U N T I N G D I M E N S I O N SD E S C R I P T I O N

CANOPY

33/16"

[81mm]

7"

[178mm]

11 5/8" sq.

[295mm]

(4)9/32" Dia. [7mm] Mounting Holes

8 7/16" sq.

[214mm]

The Lumark Parker combines strength-gaining architecture with energy-saving technology. U.L. listed for wet locations and CSA certified. Mount on non-combustible surface.

The durable, versatile Parker is perfect for use in parking bays, entrances and stairwells, as well as rapid transit stations and loading docks.

PR

PARKER

7 0 - 1 7 5 W H i g h P r e s s u r e S o d i u m M e t a l H a l i d e

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : H P P R - 7 0 N - 2 4 0 V - X X

Lamp Type		Series	Lamp	Ballast		Voltage 3	Options &
HP=High		PR=Parker	Wattage	H=Normal		120V	Accessories
Pressure			70=70W		Power	208V	(See Below)
Sodium			100=100W		Factor	240V
MH=Metal			150=150W 1	N=Normal		277V
	Halide		175=175W		Power	347V
					Factor	480V
				W=HPF CWA 2		MT=Multi-Tap wired 277V 4
						TT=Triple-Tap wired 347V 5
Options 6				Accessories 8
Q=Quartz Restrike DC Bayonet Base					TK=Trunnion Kit
(Quartz lamp will not come on at initial cold start)				VRSD=Tamper-Resistant Screwdriver
QM=Quick Mount				VRSB=Tamper-Resistant Bit
LL=Lamp Included 7
TR=Tamper Resistant Screws

F1=Single Fuse (120, 277 or 347V)

F2=Double Fuse (208, 240 or 480V)

NOTES: 1 Uses S-55 (55 Volt) lamp only. 2 Not Available in 70 & 100W Metal Halide. 3 Products also available in non-US voltages and 50Hz for international markets. Consult factory for availability and ordering information. 4 Multi-Tap ballast is 120/208/240/277V wired 277V. 5 Triple-Tap ballast is 120/277/347V wired 347V. Add desired voltage to end of catalog number. 6 Add as suffix in the order shown. 7 Lamp is shipped separate from luminaire. Lamp is Cooper designated product based on luminaire requirements. Specified lamps must be ordered as a separate line item. 8 Order separately. 9 Specifications and dimensions subject to change without notice.

C L E A R P R I S M AT I C

P O LY C A R B O N AT E

PA R K I N G G A R A G E

L U M I N A I R E

•One-piece injection- molded UV stabilized polycarbonate lens is a minimum of 0.130" thick. All light-control prisms and blondels are on the inside surface of the lens, reducing dirt build-up and making cleaning easier

•Lens is held with four stainless steel screws. Fasteners are captive in the lens and sealed by means of a neoprene O-ring

•Die-cast aluminum with reinforcing ribs on exposed sidewalls. Thickened areas occur at lens junction and at mounting/fastening holes. Four 1/2" NPT conduit entries in sides and one in back of housing.

Black polyester powder coat is standard

•One-piece die-cut closed-cell silicone mounting gasket

•Copper-wound NPF ballast standard. Ballast is available in high power factor with some lamps. Consult ordering information

•Porcelain medium-base socket with nickel-plated brass screwshell

•Approximate net weight: 20 lbs. (9 kgs.)

COOPER LIGHTING

551
